Automatic High-Speed Rotary Ampoule Washing Machine

The Automatic High-Speed Rotary Ampoule Washing Machine is specially designed to wash Ampoule with Minimum Contact Machine Parts with Ampoule. The Machine is suitable for Wash Various Sizes of Ampoules with the help of Change Parts.

Automatic High-Speed Rotary Ampoule Washing Machine

The Automatic High-Speed Rotary Ampoule Washing Machine is specially designed to wash Ampoule with Minimum Contact Machine Parts with Ampoule. The Machine is suitable for Wash Various Sizes of Ampoules with the help of Change Parts. Automatic Rotary Ampoule Washing Machine is widely used in the Pharmaceutical, Veterinary & Biotech Industries. The machine With a Specially Designed Gripper System Holds the Ampoule from the Neck and Invert Till the Washing Operation is Completed Again After Washing Release the Ampoule on the out-feed Feed Screw System in Vertical Position Ensures Positive Wash Ampoules.

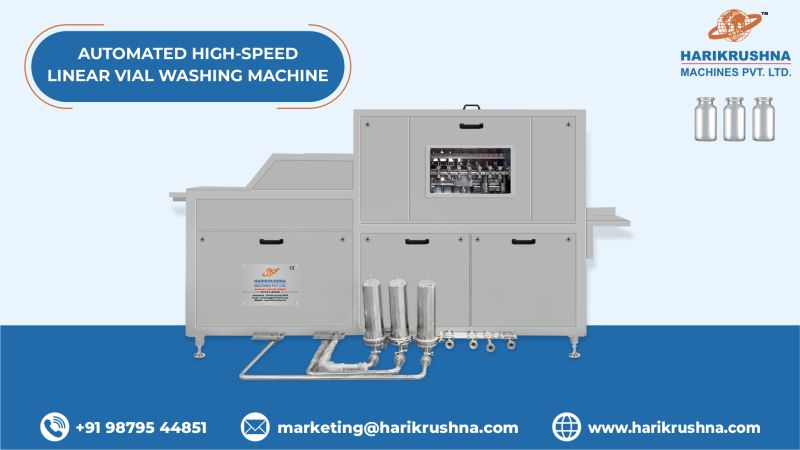

Automatic Linear Vial Washing Machine

The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).

Linear Vial Washing Machine Automatic Linear Vial Washing Machines

The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).

Vial Washing System: Wash 2 ml to 30 ml Round Glass Vials with up to 200 Vials per Minute Speed

Linear Vial Washing System wash 2 ml to 30 ml round glass vials with up to 200 vials per minute output speed. HMPL's Automatic Linear Vial Washing Equipment meets demanding production requirements. Its user-friendly interface allows for easy operation and monitoring, enhancing overall productivity. The advanced technology incorporated into this machine guarantees thorough cleaning of each vial, ensuring compliance with stringent quality standards. Its linear design optimizes space utilization while maintaining a consistent washing performance. HMPL offers a cutting-edge solution for vial washing needs, combining speed, accuracy, and reliability to streamline production processes effectively.

Key Features :-

•     The Linear vial washing Machine is made compact & versatile as per GMP norms.
•     The structure is made of MS and cladded with SS304.
•     The machine’s contact parts consist of Stainless Steel 316L.
•     The construction is rigid and vibration-free, ensuring trouble-free performance.
•     An acrylic cabinet covers the washing section, providing ease of cleaning.
•     Operating the machine is simple.
•     The machine utilizes SS 304, hard chrome plating, or brass for all exposed parts, ensuring a corrosion-free long life.
•     During the washing operation, the six nozzles enter the vial mouth, ensuring thorough penetration of washing media to achieve a perfect washing principle.
•     Fixed top nozzles in each washing station ensure external washing of vials at the same time as internal washing.
•     During the chained indexing, the flow of washing media stops, resulting in a straight 25% saving on utilities.
•     We have designed a system of solenoid valves and optional tanks, pumps, and filters for long, trouble-free life and foolproof operation.
•     Four inner washes (Including one air wash, two inner wash with recycled tray) & one outer wash.

Key Features

• Liquid sugar syrup vessel offering no vibrations of the shaft
• There is no coupling in drive assembly that provides for lower maintenance costs of manufacturing and storage vessels
• Liquid sugar syrup vessel offering no vibrations of the shaft
• All contact parts are SS 316 and non-contact parts are SS 304
• SS 316 construction-based pipes, inter-connecting piping
• Pipes and fittings with seamless, internally electro-polished finishes as per DIN standard and unions
• Designed for internal vacuum to facilitate the transfer of sugar directly from stores to sugar syrup vessels
• Melted sugar is transferred to the manufacturing vessel through an online bag filter
• Syrup is transferred to the storage vessel through a filter press
• Entry of all propeller agitations is from top or bottom through a specially designed mechanical seal face

Machine Brief

Key Feature's

• Liquid sugar syrup vessel offering no vibrations of the shaft
• There is no coupling in drive assembly that provides for lower maintenance costs of manufacturing and storage vessels
• Liquid sugar syrup vessel offering no vibrations of the shaft
• All contact parts are SS 316 and non-contact parts are SS 304
• SS 316 construction-based pipes, inter-connecting piping
• Pipes and fittings with seamless, internally electro-polished finishes as per DIN standard and unions
• Designed for internal vacuum to facilitate the transfer of sugar directly from stores to sugar syrup vessels
• Melted sugar is transferred to the manufacturing vessel through an online bag filter
• Syrup is transferred to the storage vessel through a filter press
• Entry of all propeller agitations is from top or bottom through a specially designed mechanical seal face.

Machine Brief

• Manufacturing Vessel
• Storage Vessel
• Bag Filter (Basket Filter)
• Zero Hold Filter Press
• Inline Homogenizer
• Transfer (Centrifugal) / (Lobe) Pump
• Working Platform
• Control Panel
• Steam / Electrical Operated

Optional

• Sugar Syrup and Manufacturing Vessels Are Provided with Limpet Coils for Heating and Cooling
• Load Cell for Accurate Weighing
• PLC-Based Control Panel for Process Automation
• Utility Piping Under Working Platform

Key Feature's

• Liquid sugar syrup vessel offering no vibrations of the shaft
• There is no coupling in drive assembly that provides for lower maintenance costs of manufacturing and storage vessels
• All contact parts are SS 316 and non-contact parts are SS 304
• SS 316 construction-based pipes, inter-connecting piping
• Pipes and fittings with seamless, internally electro-polished finishes as per DIN standard and unions
• Designed for internal vacuum to facilitate the transfer of sugar directly from stores to sugar syrup vessels
• Melted sugar is transferred to the manufacturing vessel through an online bag filter
• Syrup is transferred to the storage vessel through a filter press
• Entry of all propeller agitations is from top or bottom through a specially designed mechanical seal face
• Capacity: 500 Liters to 15000 Liters

Machine Brief

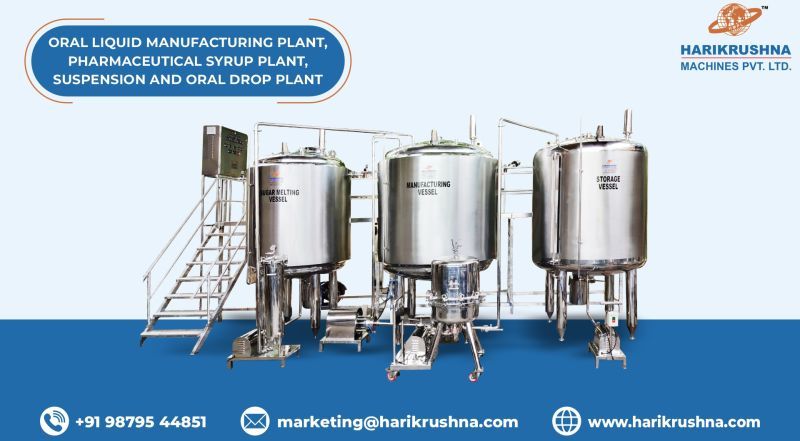

• Sugar Melting Vessel
• Manufacturing Vessel
• Storage Vessel
• Bag Filter (Basket Filter)
• Zero Hold Filter Press
• Inline Homogenizer
• Transfer (Centrifugal) / (Lobe) Pump
• Working Platform
• Control Panel
• Steam / Electrical Operated

Optional

• Sugar Syrup and Manufacturing Vessels Are Provided with Limpet Coils for Heating and Cooling
• Load Cell for Accurate Weighing
• PLC-Based Control Panel for Process Automation
• Utility Piping Under Working Platform
