Harikrushna Machines Pvt Ltd

Vatva, Ahmedabad, Gujarat

• The machine is manufactured or developed per GMP standards.
• The structure is made of MS cladded with SS 304.
• Rigid vibration-free construction for trouble-free performance.
• It can be operated by semi-skilled operators.
• Specially designed drive mechanism for Label Release.
• Change parts required for different sizes of products i.e. product holding roller & wrapping roller.
• Dispensing Unit to dispense labels.
• Full / Partial labeling is possible.

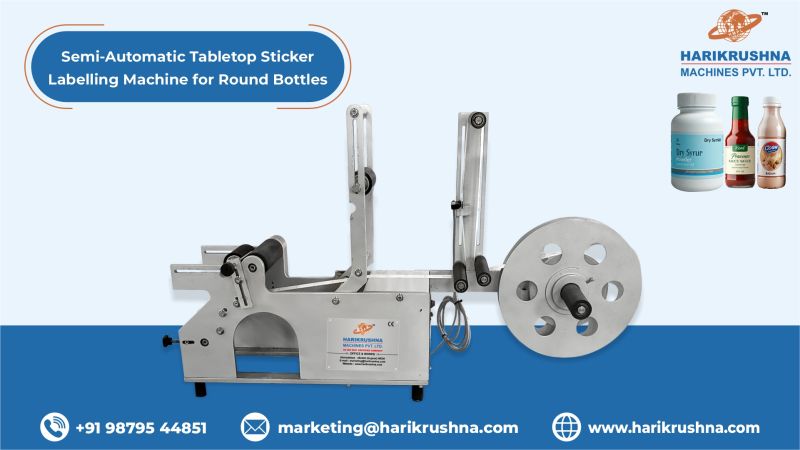

• Machine Suitable for Round Products like Vial/ Bottle/ Jar/ Tin / Can and Container.
• Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
• Break assembly to avoid variation during releasing of the roll.
• Various label position adjustment.
• No Product No Labelling.
• The machine can be utilized for various sizes (Diameter) of products.
• User-friendly and very less maintenance required.
• Specially designed wrapping mechanism to wrap label on product.
• Fiber Optic based label gap sensor (Sensor Make: LEUZE/BANNER/SICK).
• Most reliable and proven components using in the machine.

• First of all the operator fixes the label roll on the label roll holding disc & is guided by the guide rolls.
• The operator places the product manually on the specially designed roller stand.
• As soon as the pressing system is operated, the wrapping rollers on the products, hold & keep the product rotated.
• Simultaneously, the label is dispensed from the dispenser unit on the product.
• The wrapping roller presses the label uniformly & the product is then taken out manually.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user-friendly operating HMI.
• Special HMI function like product delay & pre-dispensing length for easy machine setting.
• HMI with 4-level password systems for safety operator, supervisor, manager & administrator level.
• Label dispensing speed can be set digitally using HMI.
• Motor unlock facility for changing the label roll.
• PPM (Product per machine) facility is available.
• Capacity to control AC drive speed from HMI.
• Multiple program facility.
• The Panel unit is made in a compact design & easy serviceable/Removable.

• eatures
• Features of PLC System With HMI
• Technical Data

• The Labelling machine is manufactured or developed accordance with GMP standards.
• Structure made of SS 304.
• All moving parts of the machine covered by safety guards of SS.
• All exposed parts of MS are powder coated / electroless nickel plated.
• Rubberized Endless/Delrin/SS Slat Conveyor.
• Conveying system to convey the product with easy adjustable side guide.
• Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque.
• Unique motorized separator to ensure uniform distance between two products.
• Top Conveyor to hold the product at the time of labelling.
• Unique machine for all round bottles label application without change parts.
• Full / Partial labelling is possible.

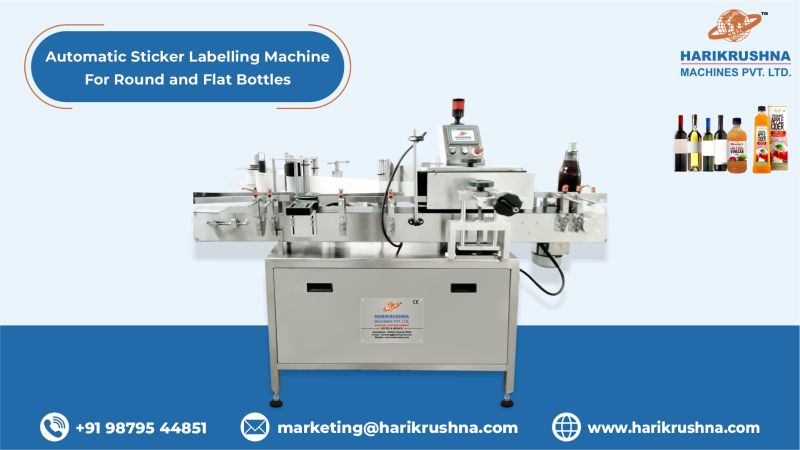

• Machine Suitable for Round & flat Product.
• Specially designed drive mechanism for Label Release.
• Dispensing Unit to dispense labels.
• Reel mechanism (Size: 305mm) to hang the roll with core ID of 76 mm (3″).
• Break assembly to avoid variation during releasing of roll.
• Various label position adjustment with the help of sliding pipe assembly.
• Specially designed wrapping unit to wrap label on product.
• The Wrapping belt is made of specialized nylon sponge material for longer life.
• Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario make AC motor, Delta make AC Drives, PLC & HMI, MCB & relay “CE” certified.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length for easy machine setting.
• Label dispensing speed can be set digitally using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type or size, press the REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password-protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to control AC drive speed from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in a compact design & easy serviceable/Removable.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
• Label dispensing speed can set digital by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in compact design & easy serviceable/Removable.

• tures
• Features of PLC System With HMI
• Technical Data

• The machine is manufactured or developed accordance with GMP standards.
• Structure made of SS 304
• All moving parts of the machine covered by safety guards of SS
• All expose parts of MS are powder coated / electro less nickel plated.
• Conveying system to convey the product with easy adjustable side guide
• Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque
• Unique in-feed screw to ensure uniform distance between two products
• Top Conveyor to holding product at the time of labelling
• Machine suitable for product like Round / Rectangular / Flat / Oval /Square
• Imported AC frequency variable drive for variable speed with constant torque
• Specially designed drive mechanism for Label Release
• Dispensing Unit to dispense labels
• Various label position adjustment with the help of sliding pipe assembly
• Label affixing on the product with the help of nylon brush and sponge roller
• All moving parts of the machine covered by safety guards of SS
• Reel mechanism (Size: 305 mm) to hang the roll with core ID of 76 mm (3″)
• Label release mechanism
• Break assembly to avoid variation during releasing of roll
• Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make AC Drives, Delta make PLC & HMI (keypad), MCB & relay “CE” certified.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
• Label dispensing speed can set digital by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in compact design & easy serviceable/Removable.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
• Label dispensing speed can set digital by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facility. Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in compact design & easy serviceable/Removable.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre dispensing Length For makes easy machine setting.
• Label dispensing speed can set digital by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type, or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in compact design & easy serviceable/Removable.

• The machine is manufactured or developed per GMP standards.
• The structure is made of SS 304.
• All moving parts of the machine are covered by safety guards of SS.
• All exposed parts of MS are powder-coated / electroless nickel-plated.
• Conveying system to convey the product with an easily adjustable side guide.
• Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque.

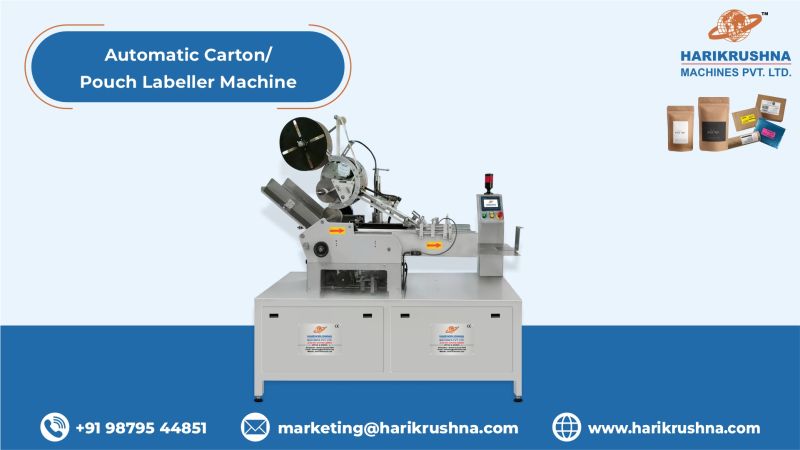

• Stacker system for loading & holding products
• Specially designed drive mechanism for Label Release.
• Dispensing Unit to dispense labels.
• Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
• Break assembly to avoid variation during releasing of the roll.
• Various label position adjustments with the help of sliding pipe assembly.
• Label pasting by nylon brush & sponge roller.
• Most reliable and proven components such as Festo/SMC/Genetics make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive/Gennext make AC motor, Delta make AC Drive, PLC & HMI (Keypad), MCB & relay “CE” certified.

• No Product No Labeling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber optic-based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made of compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI functions like Product Delay & Pre dispensing Length make it easy to machine setting.
• Label dispensing speed can be set digitally by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• A printing facility is available.
• A total counter facility is available with a password-protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facilities.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in a compact design & easily serviceable/Removable.

• Products are to be loaded in the stacker manually.
• Products move on the conveyor for the process of labelling.
• The product held tight when travelling on the conveyor.
• The label dispenser is fixed on top of the conveyor.
• As soon as the product sensor senses the products, the PLC commands the label dispensing motor to rotate at the desired revolution. This is controlled by the label gap sensor which senses the gap between the two labels & accordingly, the label gets released from the dispenser & applied to the products.
• A nylon brush & sponge roller will paste sticker labels on the products.
• Labelled products shall proceed for further operation/to be collected manually.

• The unit is made compact & Versatile as per GMP Norms.
• The structure is made of SS 304.
• All moving parts of the machine are covered by safety guards of SS.
• All exposed parts of MS are powder-coated / electroless nickel-plated.
• Nylon Rubberized Endless conveyor belt.
• Conveying system to convey the product with an easily adjustable side guide.
• Conveying system equipped with imported AC frequency variable drive for variable speed with constant torque.
• Specially designed drive mechanism for Label Release.
• Dispensing Unit to dispense labels.
• Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
• Break assembly to avoid variation during releasing of the roll.
• Various label position adjustments with the help of sliding pipe assembly.
• Label pasting by nylon brush & sponge roller.
• Most reliable and proven components such as Festo/SMC/Genetics make pneumatic and electrical/electronic such as Panasonic/Bonfiglioli/Motovario/Rotomotive/Gennext make AC motor, Delta make AC Drive, PLC & HMI (Feather touch Keypad), MCB & relay “CE” certified.

• No Product No Labeling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber optic-based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made of compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI functions like Product Delay & Pre dispensing Length make it easy to machine setting.
• Label dispensing speed can be set digitally by using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type or size press REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• A printing facility is available.
• A total counter facility is available with a password-protected reset button.
• PPM (Product per machine) facility is available.
• HMI with four-line display and feather touch keypad for operating.
• Capacity to speed control AC drive from HMI.
• Multiple program facilities.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in a compact design & easily serviceable/Removable.

• Products coming from the onward conveyor/are to be loaded in a horizontal position manually to the labelling machine conveyor.
• The speed of the conveyor is adjusted (synchronized) to maintain the desired speed with the help of PLC.
• Other parameters such as p-length, p-time, delay time, dispenser speed etc. are then set on the PLC.
• The label roll is fitted on the label roll disc & is guided by the guide rolls.
• The label dispenser is fixed on top of the conveyor.
• The machine is then operated with the help of PLC.
• As soon as the product sensor senses the products, the PLC commands the label dispensing motor to rotate at the desired revolution. This is controlled by the label gap sensor which senses the gap between the two labels & accordingly, the label gets released from the dispenser & applied to the products.
• A nylon brush & sponge roller will paste sticker labels on the products.
• Labelled products shall proceed for further operation/to be collected manually.

• The Shrink Sleeve Applicator machine is manufactured or developed accordance with GMP standards.
• The structure of Shrink sleeve applicator and conveyor are made of SS 304 and internal parts will be MS powder coated / hard chrome plated.
• Rigid vibration free construction for trouble free performance.
• The SS 304 slat conveyor for proper product conveying (For the processes of sleeve inserting and Automatic sleeve shrinking).
• In-feed screw for the positive feeding of bottle.
• The movement of shaft is controlled by servo motor to ensure intermittent flow of the sleeve roll during its travel along the dancing rollers.
• Specially designed cutter device with PLC controlled for cutting of sleeve.
• Total operation of the machine like speed of conveyor, speed of feeder, length of sleeve, cutting speed etc. are controlled by PLC.
• Easy to operate PLC by mean of feather touch HMI
• User-friendly and very less maintenance required because of less usage of mechanical components.
• The construction of machine’s electrical panel is in line with the IP 55 standard.
• In case roll gets over, there is alarm notification (buzzer) for indicating the same
• Web guide control to ensure that there is no lateral movement of sleeve laminate
• Gaskets, seals and O-rings are constructed of food grade/ non-toxic polymeric materials only
• All welds are ground finished
• Provision of Photocell sensor to read the eye mark- eye mark distance on the sleeve roll which generates the length of the sleeve suitable as per the bottle size (If printed sleeves are used).
• Separate Stepper Motors for controlling the movement of rotary brushes to ensure that sleeve is properly settled on bottle
• Sensor to indicate the presence of bottle, immediately after which the sleeve should be dispensed on bottle. If there is NO BOTTLE NO SLEEVE will be dispensed
• Unique compact tunnel with minimal power consumption
• The tunnel comprised of pre and post heat shrink zone to shrink the sleeve on bottle
• The heaters are installed at the side of the tunnel to ensure that there is uniform distribution of heat on the sleeve
• Overhead convection fan for precise cooling at output
• Digital temperature controller to ensure that uniform temperature is maintained at the time of shrinking
• The change over time from one SKU to other will take approximately 30 to 45 min
• Cleaning is done manually and all those sections which have to be cleaned are easily dismantled
• Design of equipment with enhanced cleaning feasibility by providing minimum sharp corners, minimum crevices & smooth finished welds joints
• Sleeve feeding controlled by PLC for the accurate feeding of sleeve.
• Specially designed rotary cutter device with PLC controlled for cutting of sleeve.
• Warning stickers on all external & moving surfaces
• Appropriate closure of all the rotation parts
• Emergency stop function on accessible area
• Noise level below than 75 DB
• Power restart will not be automatic and human intervention must be required
• After regain of power the equipment shall start from the step it stopped
• Total operation of the machine like speed of conveyor, speed of feeder, length of sleeve, cutting speed etc. are controlled by PLC.
• Easy to operate PLC by mean of touch screen HMI.
• User friendly and very less maintenance required because of less usage of mechanical components
• Most reliable and proven components such as Festo/SMC make pneumatic and electric/electronic components such as Panasonic/Bonfiglioli/Motovario make AC motor, Delta make AC Drive, PLC & HMI, Sensor LEUZE/BANNER/SICK, MCB & relay “CE” certified.

The Shrink Sleeve Applicator by Harikrushna Machines Pvt. Ltd. is a versatile and efficient solution designed for applying shrink sleeves to a range of bottle types including glass, HDPE, and plastic. It accommodates bottle diameters from 30 mm to 120 mm, with sleeve lengths between 30 mm and 100 mm and sleeve widths from 40 mm to 170 mm. This machine offers an impressive output speed of 60 to 200 bottles per minute, depending on the cut length of the sleeve, making it an ideal choice for high-speed, high-volume packaging operations that demand precision and reliability.

The Electrical Heater Operated Shrink Tunnel by Harikrushna Machines Pvt. Ltd. is a robust and efficient solution for achieving uniform shrink sleeve applications. Utilizing advanced electrical heating elements, this shrink tunnel ensures precise and consistent heat distribution, resulting in smooth and tightly fitted sleeves on various container types. Designed for high productivity, it integrates seamlessly with existing production lines, optimizing the shrink sleeve process for enhanced visual appeal and product protection. Its user-friendly interface and durable construction make it a reliable choice for modern packaging operations, ensuring consistent quality and performance.

The Steam Operated Shrink Tunnel by Harikrushna Machines Pvt. Ltd. offers an efficient and uniform method for applying shrink sleeves to various containers. Leveraging the power of steam, this tunnel provides even heat distribution, ensuring a smooth and wrinkle-free finish on the sleeves. Ideal for diverse packaging applications, it caters to containers of different shapes and sizes, delivering high-quality results consistently. Its advanced design promotes energy efficiency and easy integration into existing production lines. With user-friendly controls and robust construction, this steam shrink tunnel is an excellent choice for manufacturers aiming to enhance the aesthetic appeal and protective qualities of their packaged products.

The Steam Generator by Harikrushna Machines Pvt. Ltd. is a high-performance equipment designed to provide a reliable source of steam for various industrial applications, including shrink sleeve tunnels. Engineered for efficiency and durability, it delivers consistent steam output, ensuring optimal performance in processes requiring precise temperature control. Its robust construction and advanced safety features ensure reliable and safe operation. It is easy to monitor and adjust per needs. Ideal for integration into diverse production environments, this steam generator enhances productivity and product quality, making it a valuable asset for modern manufacturing facilities.

• No Product No Labelling.
• Fiber Optic based Product sensor to sense the product (Sensor Make: LEUZE/BANNER/SICK).
• Fiber Optic based Label Gap sensor to sense the gap between two labels (Sensor Make: LEUZE/BANNER/SICK).
• The unit is made compact design & user-friendly operating HMI.
• Over Current / Temperature Protection.
• Special HMI function like Product Delay & Pre-dispensing Length for easy machine setting.
• Label dispensing speed can be set digitally using HMI.
• System Refresh: This function is used to feed the label size into the Controller. Whenever you change to a new label type or size, press the REF key. Three labels are dispensed to get the exact label size.
• Motor unlock facility for changing the label roll.
• Total counter facility is available with password-protected reset button.
• PPM (Product per machine) facility is available.
• HMI with keypad for operating.
• Capacity to control AC drive speed from HMI.
• Multiple program facility.
• Label Break/Roll End/Missing Label (02 Nos.) – Machine Stop. When there are two consecutive missing labels or a broken label role, this error occurs. The HMI screen shows it as “Label Break/Roll End/Missing Label”.
• Two nos. continuous missing label in the label role automatic machine stop.
• The Panel unit is made in a compact design & easy serviceable/Removable.

• The Machine is Manufactured or Developed Accordance with GMP Standards.
• SS Square Pipe Frame Structure with Doors of SS 304 Sheet.
• All Moving Parts of The Machine Covered by Safety Guards of SS.
• All Expose Parts of MS Are Powder Coated/ Electro Less Nickel Plated.
• SS/Delrin Slat Chain Or Endless Rubberized Conveyor.
• Conveying System To Convey The Product with Easy Adjustable Side Guide.
• Conveying System Equipped with Imported AC Frequency Variable Drive for Variable Speed with Constant Torque.
• Full / Partial Labelling is Possible.
• In-feed Screw with Rotary Star Wheel to Feeding Product for Labelling Application.
• Rotary Star Wheelbase designed for High-Speed Labelling.
• Machine Suitable for Round Products like Vial/ Bottle/ Jar/ Tin and Container.
• Specially Designed Servo Drive Mechanism for Label Release.
• Dispensing Unit To Dispense Labels.
• Specially Designed Wrapping Unit (Timing Belt) To Wrap Label on Product.
• Dispensing Unit To Dispense Labels.
• Reel Mechanism (size: 300 MM) To Hang The Roll With Core Id Of 76 MM (3”).
• Break Assembly To Avoid Variation During Releasing of Roll.
• Various Label Position Adjustment with The Help of Sliding Pipe Assembly.
• Most Reliable And Proven Components Such As Pneumatic And Electrical/electronic Such as AC Motor, AC Drive, PLC & Touchscreen HMI, MCB & Relay “CE” certified.

• The machine is manufactured or developed accordance with GMP standards.
• The standalone applicator structure is made of pipe.
• Rigid vibration free base construction from MS base plate cladded with SS 304.
• All expose parts of MS powder coated / electro less nickel plated.
• Easy to operate by mains ON/OFF switch.
• Can be operated by semi-skilled operator.
• User friendly and very less maintenance required
• Height can be easily adjusted as per the products.
• Specially designed drive mechanism for Label Release
• Applicator controlled by PLC.
• Dispensing Unit to dispense labels
• Reel mechanism (Size: 300 mm) to hang the roll with core ID of 76 mm (3”).
• Break assembly to avoid variation during releasing of roll
• Various label position adjustment with the help of sliding pipe assembly.
• Specially designed wrapping mechanism with nylon brush & sponge roller
• No Product No Labelling.
• The PLC unit is made compact design & easy serviceable/Removable.
• Over current / temperature protection.
• Motor unlock facility for changing the label roll.
• Fiber Optic based product sensor to sense the product (Sensor Make: SICK/LEUZE/BANNER).
• Fiber Optic based label gap sensor to sense the gap between two labels (Sensor Make: SICK/LEUZE/BANNER)

• Automatic varying label speed with product conveyor speed.
• Label roll end alarm indication with tower light & sound alarm.
• Total counter facility is available
