Our Product / Services
Our product range contains a wide range of Semi Automatic Cartoning Machine, Carton Box BOPP Sealing Machines, Automatic Horizontal Cartoning Machine and Case Packer Machine

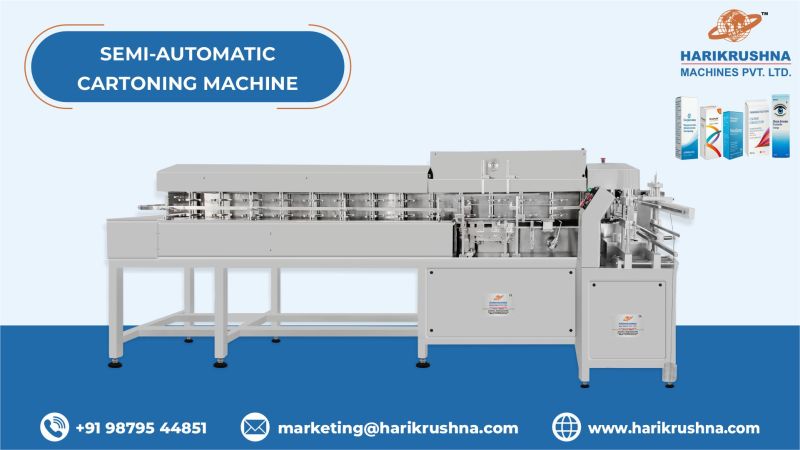

The Semi-Automatic Linear Cartoning Machine is a compact unit made of MS angle structure encompassed with SS covering with height adjustment legs, which are provided to adjust the machine height and highly efficient machine with an elegant look. This multifunctional featured machine meets the GMP requirements of carton opening and closing. The machine operates on the linear principle.
Key Features
Operations
The cartons loaded in the carton loading channel of the cartoning machine are picked up with a vacuum cup transferred to rotating pockets which moves into linear motion over the bottom closing unit which closes the carton bottom. After that operator needs to fed the product and leaflet into cartons manually. The filled cartons are then moved further in linear motion in pockets under the top closing unit which closes the top. Finally pocket releases the cartons on the conveyor.
Technical Data
| Carton Width | 15 mm to 80 mm |
|---|---|
| Carton Height | 40 mm to 200 mm |
| Carton Type | Tuck-in type |
| Carton Size (L x W x H) | As per Samples |
| Leaflet Size (Folded) (L x W) | As per Samples |
| Output Speed | 80 to 100 Cartons/Minute | 60 to 80 Cartons/Minute | (Depends upon product, carton shape & size & operator efficiency) |
| Required Operators | Six |
| Working Height | 875 ± 50 mm |
| Power Consumption Main Motor |
2 HP / Three Phase / 415 V AC / 50 Hz |
| Power Consumption Vacuum Pump |
1 HP / Three Phase / 415 V AC / 50 Hz |
| Net Weight Approx. | 900 Kg |
| Dimensions Approx. | 3500 mm L × 1250 mm W × 1200 mm H |
The Taping Machines/Carton/BOPP Box Taping Machines are a piece of industrial equipment designed to automate the sealing process of cartons or boxes using BOPP (biaxially oriented polypropylene) tape. BOPP tape is a widely used packaging material known for its strength, durability, and adhesive properties.
Discover Our Carton-Sealing Machines:Carton Taping machines are fundamental components of modern packaging processes. These machines seal cartons securely and efficiently, ensuring the contents remain intact during transit and storage.Carton Taping machines are commonly used in the manufacturing, logistics, and shipping industries to streamline the packaging process and ensure the secure sealing of cartons or boxes for safe transportation. The carton/box tape machine plays a crucial role in the packaging and shipping industries by automating the carton-sealing process.
Introducing The Future Of Packaging: Carton/Case/Box Sealer MachinesHarikrushna Machines offers state-of-the-art carton/case/box sealer machines to streamline your packaging process and ensure the precision and reliability of every sealing carton.The Automatic Carton Sealer is a game-changer in the world of packaging. The Carton Sealer can seamlessly seal a wide range of carton sizes, eliminating the need for manual and reducing the risk of errors. Whether you're sealing cartons for shipping, warehousing, or distribution, our carton sealers can handle it all with unparalleled speed and consistency.
Harikrushna Machines Pvt. Ltd.: Your Trusted Partner For Automatic Carton Sealing MachinesAt Harikrushna Machines Pvt. Ltd. (HMPL), Ahmedabad, Gujarat, India. Our commitment to excellence has made us a leading name in the industry, providing top-notch packaging solutions that meet global standards.The Automatic Carton Sealing Machine from View Complete Details

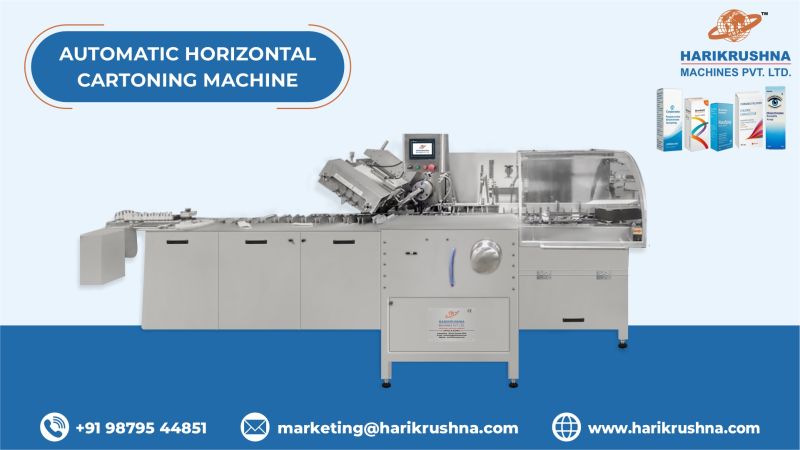

Automatic Horizontal Cartoning Machine
We are the Leading Manufacturer of Automatic Horizontal Cartoning Machine and our products are made of good quality, These machines provide High-Performance and Deliver excellent output owing to their compact design and are Manufactured in conformation with the latest needs of the pharmaceutical and Cosmetic Industries. The Automatic Horizontal Cartoning Machines are useful for Soap Cartoning, Tube Cartoning, Bottle Cartoning, Vial Cartoning, Inhaler Packaging, Bearing Packaging, etc. Cartoner Machine is suited to handle such items as Tubes, Blister Strips, Bottles, Vials, Ampoules, Droppers, Inhalers, Film Rolls, Bearings, Soaps, and Many other products Falling within the wide range of the machine either individually or in combination. Cartoning Machines have inbuilt features of Product checking, Carton pick-up, Code embossing, Carton erection by a knife blade, Leaflet pick-up, Product insert, Carton closure, and Carton Discharge. Continuous motion Cartoning Machine for an output of 120 to 240 Cartons Per Minute.
Key Features :-
.
| # | Model | Output Speed |
|---|---|---|
| 1 | HMPL–AC–120 | Up to 120 Cartons/Minute (Depends upon product, carton shape & size & operator) |
| 2 | HMPL–AC–240 | Up to 240 Cartons/Minute (Depends upon product, carton shape & size & operator) |
Technical Data
| Model | HMPL-AC-120 | HMPL-AC-240 |
| Carton Length | 45 to 65 mm (2 Chain) 65 to 170 mm (3 Chain) |
55 to 65 mm (2 Chain Machine) 65 to 180 mm (3 Chain Machine) 75 to 210 mm (4 Chain Machine) |
| Carton Width | 8 to 75 mm | 20 to 100 mm |
| Carton Height | 18 to 55 mm | 20 to 60 mm (Standard) 15 to 70 mm (On Special Request) |
| Carton Type | Tuck-in Type | Tuck-in Type |
| Carton Size (L x W x H) |
To be Specify by Customer | To be Specify by Customer |
| Leaflet Size (Folded) (L x W) |
110 mm to 200 mm L 15 mm to 45 mm W |
Min: 20 to 110 mm Max: 35 to 170 mm |
| Output Speed | Up to 120 Cartons/Minute (Depends upon product, carton shape & size & operator) | Up to 240 Cartons/Minute (Depends upon product, carton shape & size & operator) |
| Working Height | 900 ± 50 mm | 900 ± 50 mm |
| Power Consumption | 4.0 KW | 4.0 KW |
| Power Supply | Three Phase/440 V AC/50 Hz | Three Phase/440 V AC/50 Hz |
| Air Supply | 4 CFM Air @ 6 Kg/cm² | 4 CFM Air @ 6 Kg/cm² |
| Air Consumption | 10 CFM Approx. | 25 CFM Approx. |
| Net Weight | 1900 Kg Approx. | 1900 Kg Approx. |
| Dimensions | 5150 × 2650 × 2110 mm (L x W x H) Approx. | 5520 × 1850 × 1770 mm (L x W x H) Approx. |
| Carton GSM | 250 to 350 g/m² | 280 to 350 g/m² |
| Leaflet GSM | 60 to 70 g/m² | 60 to 70 g/m² |
Case packer machine is industrial equipment designed to pack products into cases or boxes for shipment and distribution. Box Packer Machines are commonly used in manufacturing and packaging facilities to enhance efficiency and reduce manual work in the packaging process.The high-speed case packer typically receives products from a production line and arranges them in a predetermined pattern before placing them into cases. In other words, our Case Packer ensures the product package is according to a specified configuration.
Types of Case Packer:Case packer machines are in demand in various industries, including food and beverage, pharmaceuticals, and consumer goods, where bulk packaging and distribution are necessary.
Case Packing System Case Packing Solutions Case PackingHarikrushna Machines case packing solutions ensure your products are safe and secure. Similarly, All case packing systems are ready for fast changeover and suitable for various cases.HMPL has vast experience in taking your product and putting it into a case in various formats like bottle, bag, box, carton, pouch, roll, or any other.HMPL understands case packing requirements well and provides tailored solutions.
Case Packing Machine Manufacturers Case Packer Manufacturers Case Packaging MachineHarikrushna Machines Pvt. Ltd. is an ISO 9001:2015 & CE-certified Automatic Case Packaging Machine Manufacturer and Exporter in Ahmedabad, Gujarat, India. Are you looking for a Case packer for cans? Bottle Case Packer Machines for packing bottles? From easy to complicated requirements, we deliver the perfect solutions.
Automatic Case Packer Machine Automatic Case Packer Automated Case Packer Auto Case PackerThe Automatic Case Packer Machine is the state-of-the-art innovation of HMPL. We fulfil manufacturers' demand for flexibility and adaptability from Automated Case Packer. Therefore, we provide a case-packing solution that covers all your needs in 1 machine.Contact us for the case packer machine price and features. Our team is ready to guide you about your specific needs.
