Seal Machines

We offer a complete product range of Automatic Dental Cartridge Plugging, Filling and Sealing Machine, Automatic Conduction Sealing Machine and Automatic Vial Cap Sealing Machine

Automatic Dental Cartridge Plugging, Filling And Sealing Machine

Min. Order (MOQ) 1 Piece
Power Consumption 10 KW
Model HMPL-RCFS
Output Speed 60 to 120 cartridges per minute (Depending on the nature of the liquid)
Product Type Automatic Dental Cartridge Plugging, Filling And Sealing Machine
Sample Products Dental Cartridges
Sample Product Size 1 Ml To 3 Ml
Output Speed 60 To 120 Cartridges Per Minute
Filling Volume 1 Ml To 3 Ml
Working Height 875 ± 50 Mm Adjustable
Power Supply Three Phase (N+E)/ 415 V AC/ 50 Hz
Net Weight Approx. 1000 KG
Dimensions Approx. 2077 Mm (L) X 1831 Mm (W) X 1805 Mm (H) Without LAF

We offer the HMPL-RCFS Automatic Dental Cartridge Plugging, Filling, and Sealing Machine designed for efficiency and precision. With a power consumption of 10 KW, this machine operates at an output speed of 60 to 120 cartridges per minute, accommodating 1 ml to 3 ml dental cartridges. The working height is adjustable at 875 50 mm, ensuring flexibility in usage. Ideal for manufacturers and exporters, this machine is a reliable solution for seamless production processes. Power supply includes three-phase (N+E)/415V AC/50Hz. Enhance your production capabilities with this advanced automatic dental cartridge machine.

Key Features

As per GMP Norms, the machine model.
The unit is made compact with high output.
Structure made of SS 304.
Rigid vibration-free construction for trouble-free performance.
The contact parts, such as the nozzle, are made of SS 316L.
Easy-to-operate machine.
The machine has a special feature called PRIME, which is useful to suck remaining filling material from the tank to the nozzle.
Individual pumps can be adjusted & calibrated for the desired volume by using HMI.
The machine runs easily without dripping because of the facility of suck back.
Basic machine is provided with one set of change parts suitable for 3 ml.
Inbuilt wire mesh conveyor.
Machine suitable for 1 ml to 3 ml (with the help of change parts).
A.C. variable drive for machines and conveyors.
Individual servo synchronized system for filling accuracy.
Peristaltic Pump with a capacity of 1 ml to 3 ml.
Machine fitted with 3 ml change parts.
Rotomotive/Bonfiglioli make a gearbox.
Machine with Nitrogen Pre & Post Purging system.
PLC unit and color Touch Screen HMI with Batch data printing facility.
The machine is equipped with the most advanced technology.
Less change over time consumes for change parts.
Height adjustment is done by a special design, with no tools required.
Tool-less machine.
All micro settings are done by using HMI, only no need to do any mechanical settings.
Filling the nozzle up is done by a specially designed CAM mechanism driven by a servo motor.
Infeed worm & Outfeed worm work on individual servo.
Nozzle forward & reverse are done by an individual servo motor.
Less chance of cartridge breakage due to the special transportation system used.
Specialized rubber is used for back pressure on the main star wheel to avoid the fall down issue.
An Individual Spring mechanism used for sealing jaws.
The machine has an exhaust duct and blower (duct from machine to service floor will be in the customer’s scope).
Output: 80 TO 100 CPM, considering a 3 ml cartridge.

Operations

This machine is fully automatic & based on PLC-controlled operation. The sequence of operation is as under.
Once the operator starts the machine, he needs to do homing in the machine so all operation comes to the home position.
Before starting the machine, the operator has to load cartridges on the wire-mesh conveyor, and then the machine should be started in auto mode. With the help of a back load of cartridges, it will transfer to the infeed star wheel through the infeed worm.
Then the cartridges will be transferred to the main star-wheel for the rubber stoppering station, then the cartridges will move further at the filling station for the filling process, then the cartridges will move further.
Then cartridges will arrive at the cap sealing station where the cap will be picked through the chute, then it will move further at the sealing station where cartridges will be sealed by using a special design spring mechanism jaws.
After that, filled & sealed cartridges will move further at the outfeed collection tray with the help of the outfeed star wheel and the outfeed worm.

View Complete Details

Ask Latest Price & Details

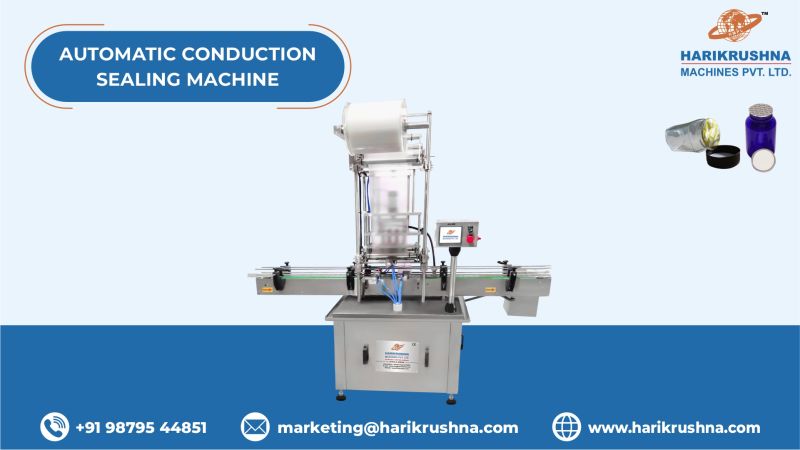

Automatic Conduction Sealing Machine

Min. Order (MOQ) 1 Unit
Country of Origin India
Condition New
Material Stainless Steel
Brand Harikrushna Machines
Automatic Grade Automatic
Driven Type Electric
Number Of Flower Seal Machines

Automatic Conduction Sealing Machine Manufacturer in India

Introducing the Automatic Conduction Sealing Machine by Harikrushna Machines Pvt. Ltd. — engineered for fast, secure, and tamper-proof sealing of PP bottles across a wide range of liquid products. With 2 to 10 sealing heads and an output of up to 120 bottles per minute, this system ensures consistent, leak-proof sealing for 10 ml to 1000 ml bottles with exceptional efficiency. Designed for high-performance production lines, it boosts packaging reliability, enhances product safety, and maintains smooth, continuous operations. Elevate your sealing process with speed, stability, and quality you can trust — choose HMPL sealing technology.

MODEL

#	Model	Head	Output Speed
1	HMPL-LCS-2	2	10 to 20 BPM
2	HMPL-LCS-4	4	40 to 60 BPM
3	HMPL-LCS-6	6	60 to 80 BPM
4	HMPL-LCS-8	8	80 to 100 BPM
5	HMPL-LCS-10	10	10 to 120 BPM

Technical Data

Product MOC	PP Bottles
Sample Product Size	10 ml to 1000 ml
Output Speed	Up to 120 Bottles / Minute

View Complete Details

Ask Latest Price & Details

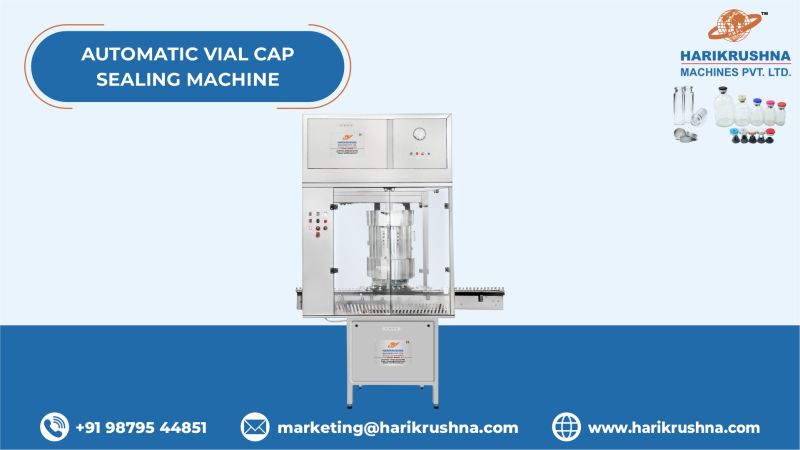

Automatic Vial Cap Sealing Machine

Min. Order (MOQ) 1 Piece
Country of Origin India
Condition New
Material Stainless Steel
Brand Harikrushna Machines
Automatic Grade Automatic
Driven Type Electric
Application Industrial Use

Automatic Vial Cap Sealing Machine

Automatic Vial Cap Sealing Machine consists of the main structure covered with SS cabinet safety polycarbonate glass doors, Delrin slate conveyor, vials height adjustment screw, centralized lubrication system, out-feed turntable, vibrator bowl & chute for cap, in-feed screw & star plate, sensors, electrical panel, AC Drive, PLC & HMI.

Key features

The machine is manufactured or developed accordance with GMP standards.
The structure is made of MS and cladded with SS 304.
Rigid vibration free construction for trouble free performance.
The mechanical driven system of the whole machine is through foot mounted motor and gear box.
The complete synchronized mechanism is designed on gears and chain.
Totally synchronized PLC controlled system.
The whole machine covered with cabinet of SS and polycarbonate glass doors.
User friendly to adjust the different speed (vials/minute) with the help of HMI.
The Real output speed (vials/minute) appear on HMI.
Few change parts are required for different vials.
Vials without bungs and no caps are detected by the sensors and give the alarm alert and machine stop itself.
Daily production ratio, production counter is given with the password protection.
There is a special designed vibrator bowl and chute with no cap sensors for continuous flow of the cap.
The faults such as vials without bungs, no caps appear on the HMI and can be attended easily.
Very less mechanical adjustment required due to the special design.
PLC modes are user friendly and can be operated easily.
User friendly and very less maintenance required.
The structure construction of machine is useful to mount laminar flow.
Most reliable and proven components such as Festo/SMC make pneumatic and electrical/electronic such as Bonfiglioli/Motovario/Rotomotive make AC motor, Delta make Drives, Delta make PLC & HMI, LEUZE/BANNER/SICK make Sensors, MCB & relay “CE” make.

MODEL

#	Model	Head	Output Speed
1	HMPL-PRE-RVS-1	1	30 to 40 BPM
2	HMPL-PRE-RVS-4	4	60 to 80 BPM
3	HMPL-PRE-RVS-6	6	100 to 120 BPM

Key Features

The machine is manufactured or developed accordance with GMP standards.
The structure is made of MS and cladded with SS 304.
Rigid vibration free construction for trouble free performance.
The mechanical driven system of the whole machine is through foot mounted motor and gear box.
The complete synchronized mechanism is designed on gears and chain.
Totally synchronized PLC controlled system.
The whole machine covered with cabinet of SS and polycarbonate glass doors.
User friendly to adjust the different speed (vials/minute) with the help of HMI.
The Real output speed (vials/minute) appear on HMI.
Few change parts are required for different vials.
Vials without bungs and no caps are detected by the sensors and give the alarm alert and machine stop itself.
Daily production ratio, production counter is given with the password protection.
There is a special designed vibrator bowl and chute with no cap sensors for continuous flow of the cap.
The faults such as vials without bungs, no caps appear on the HMI and can be attended easily.
Very less mechanical adjustment required due to the special design.
PLC modes are user friendly and can be operated easily.
User-friendly and very less maintenance required.
The structure construction of machine is useful to mount laminar flow.
