Vial Washing Machine

We offer the best product range of Automatic High-Speed Rotary Vial Washing Machine and Automatic Linear Vial Washing Machines.

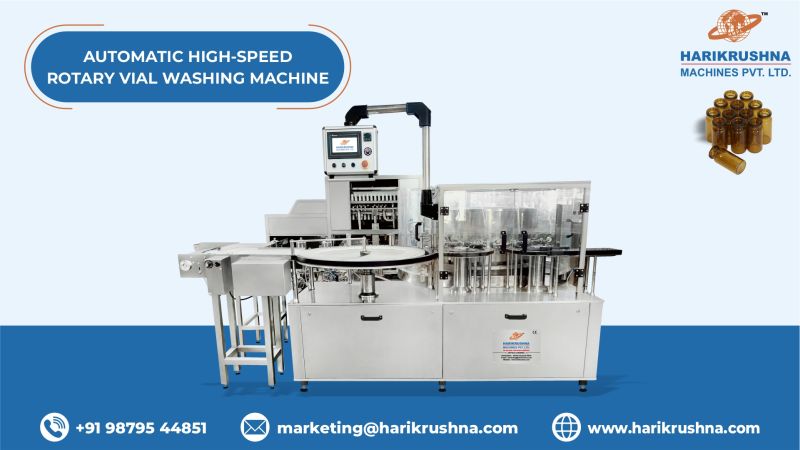

Automatic High-Speed Rotary Vial Washing Machine

Min. Order (MOQ) 1 Unit
Brand Name Harikrushna Machines
Driven Type Electric
Condition New
Country of Origin India
Number Of Flower Vial Washing Machine
Machine Material Stainless Steel
Pressure High Pressure

Vial Washing Machine Internal & External Vial Washer

The Vial Washing Machine washes vials with minimal contact between machine parts and the vial. Our vial washing equipment effectively washes various sizes of vials with the assistance of changing parts.

Automatic Rotary Vial Washing System: A Manufacturer and Exporter in India

Harikrushna Machines Pvt. Ltd. (HMPL Sterile) is an ISO 9001:2015 and CE-certified

MODEL

Model	Output Speed
1	HMPL-RVW-120	120 Vials/ Minute
2	HMPL-RVW-240	240 Vials/ Minute
3	HMPL-RVW-300	300 Vials/ Minute

Key Features

As per GMP norms machine model.
Basic Machine will be provided with one set of change parts suitable for 5/10ml Vial.
Inbuilt In Feed Turn Table Machine Of 36″ Dia.
Individual Solenoid Valve for Wash Media Application.
3 Nos. SS Centrifugal Pumps of Grundfos Make.
3 Nos. SS 316 L Tanks
1 No. Each For DM Water & Re-circulation Water, WFI Water & Compressed Air Can Be Directly From Loop Connection.
4 Nos. Of Glycerin Filled Pressure Gauges – Micro Make.
4 Nos. Of SS316 L Filter Housing Of Code -7 with Its Nylon Cartridges. (Own Make Housing & Grace Make Cartridges)
Gear Box & Motors – Bonfiglioli/Rotomotive Make. (Machine & Conveyor)
A. C. Frequency Drive For Speed Control. (Delta Make)
Emergency Switch is provided on Both End. (In Feed & Out Feed)

Machine Brief

Machine is Suitable for 2 ml to 100 ml vials (with help of change parts).
In Feed Worm, In Feed and Out Feed Star Wheel and Back Guide Set
Air Purging System For Removal Of Water From Needles Piping -(4 Nos. Solenoid Valve For With Plc Module For Auto Flushing (purging) After Production)
Vapour Exhaust Port

Technical Data

Sample Products	Glass and Plastic Vials
Sample Product Size	2 ml to 100 ml
Output Speed	Up to 400 Products/Minute

View Complete Details

Ask Latest Price & Details

Automatic Linear Vial Washing Machines

Min. Order (MOQ) 1 piece
Weight 500 Kg
Voltage 220V
Capacity 1000 Vials/hour
Material Stainless Steel
Type Automatic Linear Vial Washing Machine
Color Silver
Power Source Electric
Frequency 50/60Hz
Dimensions 1200x800x1500 Mm
Speed Settings Adjustable
Washing Cycles Multiple
Automation Level Fully Automatic
Suitable For Pharmaceutical Industry
Model HMPL-LVW
Output Speed Up to 200 Vials per Minute

Linear Vial Washing Machine Automatic Linear Vial Washing Machines

The Automatic Linear Vial Washing Machine consists of the main structure, covered with SS cabinet safety acrylic doors (OPTIONAL), in-feed turntable, washing nozzles, out-feed conveyor, pumps with the tank, filter housing & cartridge, pneumatic components, motors & gearbox, and electrical panel, AC Drive, PLC & HMI (OPTIONAL).

Vial Washing System: Wash 2 ml to 30 ml Round Glass Vials with up to 200 Vials per Minute Speed

Linear Vial Washing System wash 2 ml to 30 ml round glass vials with up to 200 vials per minute output speed. HMPL Sterile's Automatic Linear Vial Washing Equipment meets demanding production requirements. Its user-friendly interface allows for easy operation and monitoring, enhancing overall productivity.The advanced technology incorporated into this machine guarantees thorough cleaning of each vial, ensuring compliance with stringent quality standards. Its linear design optimizes space utilization while maintaining a consistent washing performance.HMPL Sterile offers a cutting-edge solution for vial washing needs, combining speed, accuracy, and reliability to streamline production processes effectively.

Vial Washer Vial Washers Manufacturer & Exporter in India

A vial washer is a specialized machine that cleans vials and small cylindrical containers made from glass. Vial washers play a crucial role in ensuring the sterility and cleanliness of vials.

Rotary Vial Washers:

Key Features

The Linear Vial Washing Machine is made compact & versatile as per GMP norms.
The structure is made of MS and cladded with SS304.
The machine’s contact parts consist of Stainless Steel 316 L.
The construction is rigid and vibration-free, ensuring trouble-free performance.
An acrylic cabinet covers the washing section, providing ease of cleaning.
Operating the machine is simple.
The machine utilizes SS 304, hard chrome plating, or brass for all exposed parts, ensuring a corrosion-free long life.
During the washing operation, the six nozzles enter the vial mouth, ensuring thorough penetration of washing media to achieve a perfect washing principle.
Fixed top nozzles in each washing station ensure external washing of vials at the same time as internal washing.
During the chained indexing, the flow of washing media stops, resulting in a straight 25% saving on utilities.
We have designed a system of solenoid valves and optional tanks, pumps, and filters for long, trouble-free life and foolproof operation.
Four inner washes (Including one air wash, two inner wash with recycled tray) & one outer wash.

Technical Data

Vial Size	2 ml to 30 ml Round Glass Vials
Output Speed	60 to 200 Vials/Minute (Speed depends on product size)
Working Height	875 ± 50MM Adjustable
Power Consumption	1.5HP Main Machine/ 2.25HP Pumping Station/ 0.25HP Loading Platform)
Power Supply	3 Phase + Neutral + Earthing / 415 V AC / 50Hz
Air Consumption	5 CFM
Air Supply	4 to 6 Kg/Cm2
Net Weight	600 Kg Approx.
Dimensions (L x H x W)	3265mm (L) x 1835 mm (W) x 850mm (H) Approx.
Wash Cycle	7 Wash
Change Parts	In-feed Screw, In-feed Inverter, In-feed Start Wheel Out-feed Screw, Out-feed Inverter, Out-feed Star Wheel
