Our Product / Services
Leading Manufacturer, Supplier & Retailer of Automatic Rotary Ropp Cap Sealing Machine, Automatic Induction Cap Sealing Machine, Automatic Eight-Head Pick and Place Type Screw Cap Sealing Eight-Head Measuring Cup Pressing Machine, Automatic Rotary Screw Cap Sealing Machine and Semi-Automatic Ropp Cap Sealing Machine.
The Automatic Rotary ROPP Cap Sealing Machine consists of a main structure, product transmission belt with an adjustable guide, in-feed screw, star plate, sealing heads, vibratory bowl for caps, cap delivery chute, product's height adjustment screw, safety acrylic cover (OPTIONAL), electrical panel, motor, sensors & AC drive.
Key Features
Key Features
Operations
The operator loads the filled bottle with the cap on the machine manually. The descending rotary sealing heads come down and hold the bottle’s neck with the desired pressure. The sealing of the caps is done by the rotary sealing head with perfect operation of threading. The operator will pick up the sealed bottle manually. Here, the speed depends on the skill of the operator as the loading and unloading are done manually.
Technical Data
| Bottle Shape & MOC | Round Glass/PET Bottles – ROPP Caps |
| Bottle Filling Volume | 10 ml to 5000 ml |
| Cap Size | 25 mm OR 28 mm |
| Capping Head Type | Aluminium (ROPP) |
| Output Speed | Up to 20 Bottles/Minute (Depending on cap, product size, manual loading & unloading) |
| No. of Sealing Head | 1 Nos. |
| Power Supply | Single Phase / 230 V AC / 50 Hz |
| Net Weight Approx. | 150 Kg |
| Dimension Approx. | 440 mm L x 670 mm W x 1300 ± 50 mm H |
| Change Parts Required | (A) Bottle: Holder (B) Cap: Cap Die |

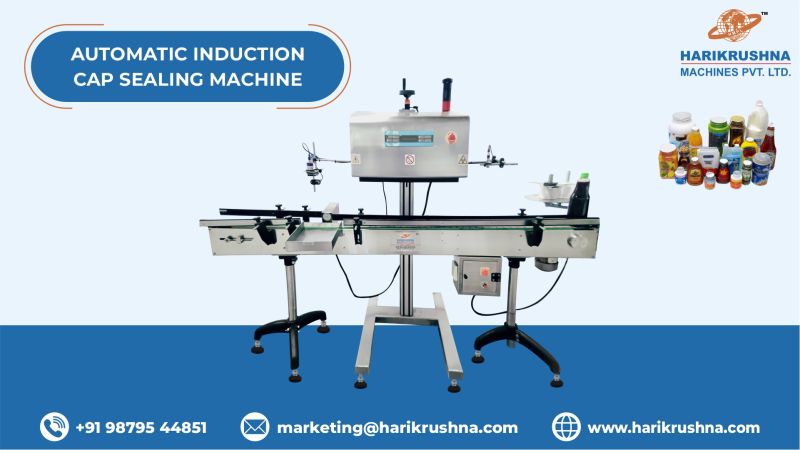

Automatic Induction Cap Sealing Machine
The Automatic Induction Cap Sealing Machine consists of a main structure with a water-cooled unit, product transmission belt, foil sealing head, height adjustment system, electrical panel & PLC.
Key Features:-
Key Features
Technical Data
| Sample Product | HDPE Bottle |
|---|---|
| Cap Size | 20 mm to 75 mm |
| Max. Line Speed | 60 Feet Per Minute |
| Output Speed | 80 to 120 Products/Minute (Depends on product Size) |
| M. O. C. | SS 304 |
| Power Output | 2KW |
| Mains | 230 V AC/ Single Phase/50Hz |
| Standby Power | 0.3 KW |
| Max. Line Current | 10 Amp |
| Net Weight | 150 KG Approx. |
| Water Circulation System | Consisting SS tank, Radiator with cooling fan, 1/8 HP water pump, Flow switch SS 304 |
| Adjustable Head stand | Movable height from 850 ± 50 mm + 300 mm |
| Conveyor Belt | SS Slat Chain Conveyor |
Key Features
Screw Capping Machine is the well-known product of
MODEL
| # | Model | Head | Output Speed |
| 1 | HMPL-SCM-1 | 1 | 30 to 40 BPM |
| 2 | HMPL-SCM-4 | 4 | 40 to 60 BPM |
| 3 | HMPL-SCM-6 | 6 | 60 to 80 BPM |
| 4 | HMPL-SCM-8 | 8 | 80 to 100 BPM |
| 5 | HMPL-SCM-10 | 10 | 100 to 120 BPM |
Key Features
Operations

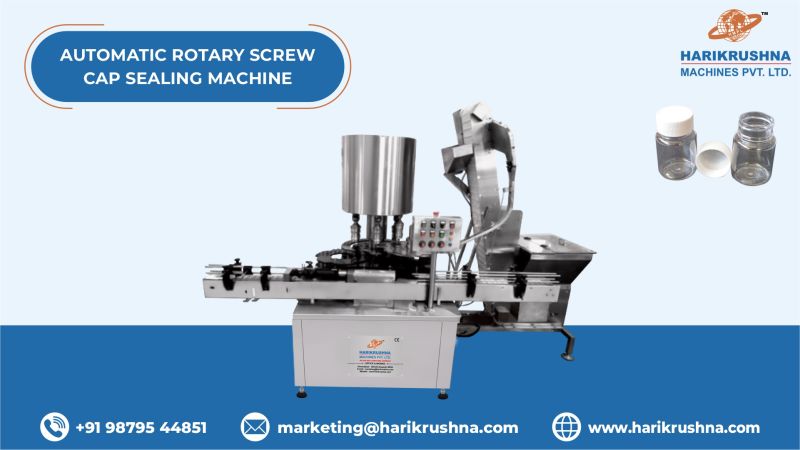

The filled bottle moving on the conveyor belt is fed into an in-feed star wheel through the in-feed screw, star wheel brings the bottle below the sealing head in the subsequent indexing part, meanwhile, the bottle picks up a cap from the delivery chute of cap filling bowl, where the body and the neck of the bottle are positioned below the rotating head, where the sealing head is performing the perfect operation of leak proof results of sealing.
Technical Data
| Bottles Shape & MOC | Round Glass/PET Bottles |
|---|---|
| Bottle Volume | 10 ml to 5000 ml Bottles |
| Type of Cap | Screw Cap |
| Cap Size | 25 OR 28 mm |
| Cap Feeding System | Vibratory Bowl with Suitable Cap Chute |
| Capping Head Type | Plastic Screw Cap |
| Output Speed | Up to 120 Bottles/Minute (Depending on cap and product size) |
| Direction of Movement | Left to Right |
| No. of Sealing Head | 4 Nos. |
| Power Supply | Three Phase + N + E /415 V AC/50 Hz |
| Height of Conveyor | 875 ± 50 mm Adjustable |
| Net Weight Approx. | 450 Kg. |
| Dimension Approx. | 1830 mm L x 720 mm W x 1650 ± 50 mm H |
| Change Parts Required | (A) Bottle: In-Feed Screw, Star Wheel & Center Guide (B) Cap: Vibratory Bowl, Delivery Chute & Cap Jaw |

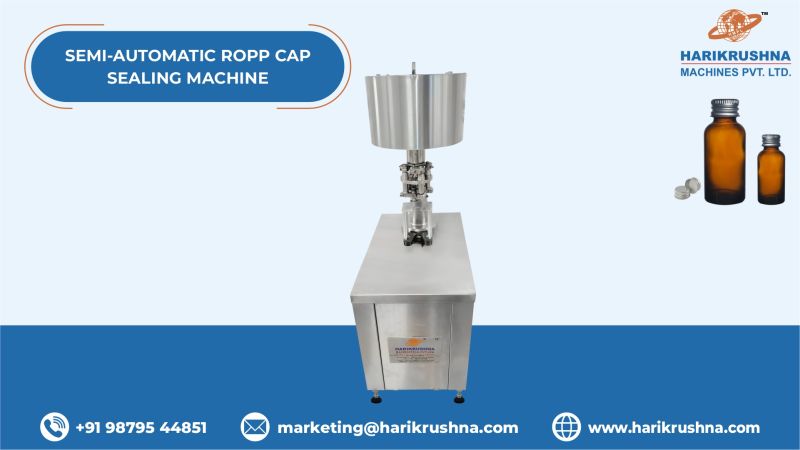

Semi-Automatic ROPP / Screw Cap Sealing Machine
The Semi-Automatic ROPP / Screw Cap Sealing Machine consists of the main structure, adjustable height, cap sealing head, bottle holding unit & mains ON/OFF.
Key Features

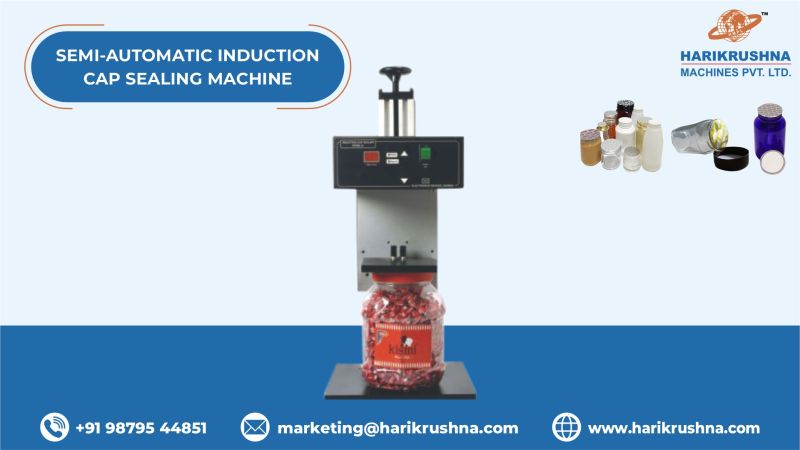

The Semi-Automatic Induction Cap Sealing Machine is used for hermetically sealing Plastic & Glass bottle caps with aluminium foils. This makes the bottles leak-proof & tamper-evident and offers extended shelf life. Induction sealers are widely used in the Pharmaceutical, Chemical, Lubricant, Cosmetic, and Food industries.
Key features
Key Features
Technical Data
| Sample Products | Bottles and Jars |
| Sample Product Size | 10 ml to 5000 ml |
| Cap Size | 10 mm to 120 mm |
| Output Speed | 10 to 15 Bottles/Minute (Speed depends on product size & manual loading unloading) |
| Power Input | 230 V AC/ Single Phase/50Hz |
| Dimension (W x D x H) | Table Top 300 mm x 300 mm x 550 mm |
| Net Weight | 25 Kg. Approx. |
Semi-Automatic Single-Head Aluminium Cap Sealing Machine
The Semi-Automatic Single-Head Aluminum Cap Sealing System consists of a main structure, adjustable height, cap sealing head, bottle holding unit, and mains ON/OFF.
Key Features
Operations
The operator loads the filled bottle with the cap on the machine manually. The descending rotary sealing heads come down and hold the bottle’s neck with the desired pressure. The sealing of the caps is done by a rotary sealing head with perfect sealing operation. The operator will pick up the sealed bottle manually. Here, the speed depends on the skill of the operator as the loading and unloading are done manually.
Technical Data
| Product Shape & MOC | Aluminium Round Bottles |
| Bottle Volume | 10 ML TO 5000 ML |
| Cap Size | TO BE SPECIFIED BY CLIENT |
| Capping Head Type | Crimping |
| Output Speed | Up to 20 Bottles/Minute (Depending on cap, product size, manual loading & unloading) |
| No. of Sealing Head | 1 Nos. |
| Power Supply | Single Phase / 230 V AC / 50 Hz |
| Net Weight Approx. | 150 Kg |
| Dimension Approx. | 670 mm L x 440 mm W x 1220 ± 50 mm H |
| Change Parts Required | (A) Bottle: Holder
(B) Cap: Cap Jaw |
