Steam Boiler

Our product range contains a wide range of Industrial Steam Boiler

Industrial Steam Boiler

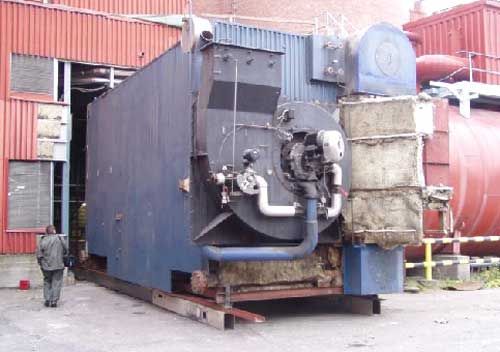

Our Industrial Steam Boiler has been operated only for 6000 hours in total. The Industrial Steam Boiler is a fuel oil fired package and is made by Hgfors (nowadays Foster Wheeler) in 1988. Available With

Combustion air fan & feed water pumps

Main Scope of the delivery

Hogfors 30 t/h boiler
Oilon burner
Economizer
Combustion air fan
2 pcs of 90 kW / 25 bar KSB feed water pumps
Fuel oil pumping unit made by Oilon
8 pcs of steam shoot blowers
Valves, fittings and maintenance supports

Technical Specifications

Type of Boiler : Water tube type with natural circulation, with two drums
Manufacturer : Kymin Osakeyhtio, Hgfors, Finland (Foster Wheeler)
Model of the boiler : H52-47-25 bar
Year of manufacturing : 1980
Starting day of operation : 16.11.1980
Evaporation : 47 t/h saturated steam
Temperature of steam : 226^oC
Effect : 30 MW
Structural Pressure : 25 bar
Feed water temperature : 120 ^oC
Furnace Volume : 74, 5 m3
Surface of furnace : c. 136 m2
Surface of convection part : 420 m2
Surface of economizer : c. 504 m
Water volume : 15, 8 m
Oil burner : Saacke SKV, fully automatic, modulating
Regulating area of burner : 610-3050 kg/h
Oil pumping- and pre- Oilon Osva : 4000 kg/h
Feed water pumps 2 pcs + 1 pc as spare.
KSB-centrifugal pump MOVI 65/6
Massflow : 59 t/h, 29, 5 bar
Motor : 90 kW, 2900 r/min
Primary air fan Mercantile KDER 75, 37300 Nm3/h, motor 115 kW, 1500 r/min
Sootblowers Diamond Superior sootblowers 4 pcs in boiler part
Diamond Superior sootblowers 4 pcs in economizer
Dimensions of boiler part : Height 5, 2 m, Width c. 4, 5 m, Length 10, 0 m
Weight of boiler part : c. 54 t. without water and accessories
Weight of economizer : c. 15 t. without water and accessories
Boiler is suitable for gas operation by changing the burner.
The boiler has been in operation only about 6.000 hours.

View Complete Details

Ask Latest Price & Details

Industrial Steam Boiler

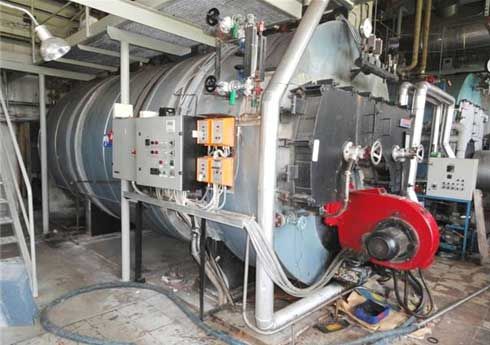

We are reckoned as the major Exporter and Supplier of Industrial Steam Boiler, located in Helsinki. Our Industrial Steam Boiler is offered at the market leading prices to the clients. DescriptionIndustrial Steam Boiler is a three-pass, fire-tube steam boiler made by Finnish Ahlstrm Themoflow in year 1990. It has capacity of 3.3 MW or 5 tons saturated steam at max operating pressure16 bar and temperature of 205 C steam. This used steam boiler is equipped with exhaust gas economizer for preheating incoming feed-water and modulating heavy fuel oil burner. It's has a large 15.2 m3 water volume which allows big momentary changes in load. The Industrial Steam Boiler is in good working condition. Feed water pumps and feed water tank with aerator are available for separate request and price.

Technical Specifications

Manufacturer	Ahlstrom Thermoflow, Kaarina
Manufacturing year	1990
Capacity	3.3 MW
Water Volume	15.2 m3
Steam characteristics	Max 16 bar, at 205 C temperature, saturated
Oil Burner	Weishaupt Monarch RMS 50/2 A - ZM (YOC 1990)
Oil feeding	140 - 490 kg/h
