Lamination Machine

Leading Manufacturer, Supplier & Retailer of Laminating Tunnel - Machine TRIAB 2 x 40.5 kW and Laminating Machine.

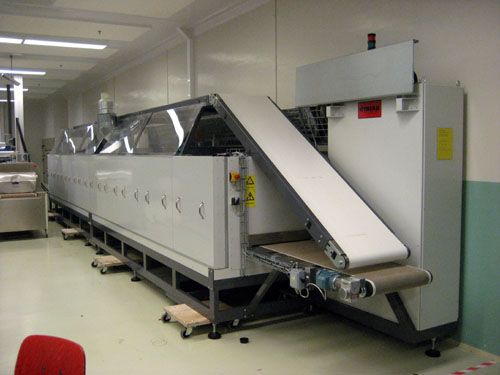

Laminating Tunnel - Machine TRIAB 2 X 40.5 KW

Condition Excellent
Laminating area 9000 x 600 mm
Made in year 2006
Make TRIAB 2 x 45 kW
Operating hours 3450
Used for Hygenic pads

This laminating machine / convection oven is made by Swedish TRIAB / Tri Innovations AB in year 2006. The laminator machine is designed for industrial use and in build up in two separable laminating sections, both equipped with one 40.5 kW hot air blowers, one product and one return conveyors and common control unit. All product touching parts are made either of stainless steel (structures and panels) or Teflon made net belts. Convection belt (600 mm wide) is located inside of the oven tunnel and has grid type surface, the return conveyor is installed on the tunnel and it has tight waived Teflon belt. The control cabinet is attached to the laminating machines structures. The speed of laminating conveyor is adjusted with an inverter driven motor. The speed of return conveyor can be fine tuned via a potentiometer. The equipment is featured with a remote control possibility. This has been operating with hygienic products (material foam / polyurethane film, thickness 5 mm, max. width 450 mm and production speed 6 m/min) and is in excellent operational condition with total 3450 operating hours only and it comes with original operation manual in English language. Technical data:Made by: TRIAB / Air Innovations ABManufacturing year: 2006Total operating hours: 3450 Convection capacity: 2 x 40.5 kWProcess control PLC: Eurotherm 2216e Hot air circulation volume: 2 x 9000 m3/hFan electric power: 2 x 2.2 kWTemperature range: 50 150 CTotal machine length: 10 000 mmTotal machine width: 1600 mmConvection belt material: Teflon Convection belt length: 9 000 x 600 mmConvection belt speed: 3 8 m/s / 0.25 kW, inverted controlled Heated width: 650 mmInside / free height: 80 mm (from belt to nozzles) Return conveyor: Habasit FAB-8EO WVReturn conveyor dimensions: 12000 x 600 mm (Teflon)Return conveyor drive: 0.25 kW, 380 V/50 Hz

Additional Information:

Payment Terms : T/T

Packaging Details : Will be leaded in one 40 feet HC container

Delivery Time : within 10 days from the payment

View Complete Details

Ask Latest Price & Details

Laminating Machine

We provide well designed Laminating Machine, which is manufactured by Swedish TRIAB Tri Innovations AB. The Laminator Machine we offer has two separable laminating sections. Both the sections are equipped with 40.5 kW hot air blowers, product, return conveyors and common control unit. The convection belt, which is 600 mm wide, is located inside the oven tunnel. The speed of the Laminating Conveyor is adjusted with an Inverter Driven Motor. The speed can be tuned with potentiometer. The product is being operated with hygienic products such as material foam, polyurethane film with thickness 5 mm and maximum width 450 mm. The production speed is around 6 mmin. Made Of
Stainless Steel (structures and panels)
Teflon (net belts)

Technical Specifications

Made by TRIAB / Air Innovations AB

Manufacturing year 2006

Total operating hours 3450

Convection capacity 2 x 40.5 kW

Process control PLC Eurotherm 2216e

Hot air circulation volume 2 x 9000 m3/h

Fan electric power 2 x 2.2 kW

Temperature range 50 - 150 C

Total machine length 10 000 mm

Total machine width 1600 mm

Convection belt material Teflon

Convection belt length 9 000 x 600 mm

Convection belt speed 3 - 8 m/s / 0.25 kW, inverted controlled

Heated width 650 mm

Inside / free height 80 mm (from belt to nozzles)

Return conveyor Habasit FAB-8EO WV

Return conveyor dimensions 12000 x 600 mm (Teflon)

Return conveyor drive 0.25 kW, 380 V/50 Hz

View Complete Details

Ask Latest Price & Details
