Min. Order (MOQ)
1 Set(s)
-
Made in year
2001
-
Condition
Excellent

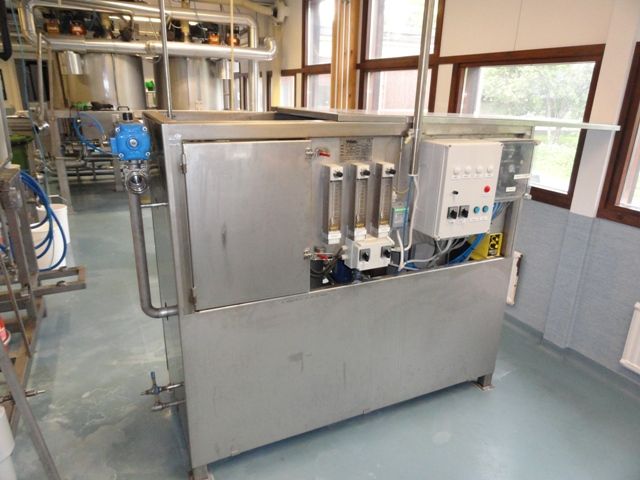

Flotation Washer Wiser Hybrid Wpf-1/4 the Water Washing Machine is Designed for Separation of Fat and Oil from Water as Well as Chemical Precipitation of other Sediments like Phosphor and Colors. Wiser Hybrid Flotation Process is Patented and It Has such Benefits like Low Energy Consumption and Less Space Requirement. Flotation Air is Fed Into Washing Water in Suction Side of Dispersion Pump and Mixed with the Pump and Wpfi-1 Pressure Release Valves Into Micro Bubbles. These Micro Bubbles with Washing Water are Fed Into the Flotation Washer Through Non-clogging and Self Cleaning Flotation Nozzle. Small Particles of Fat and other Impurities Will Get a Good Contact with Micro Bubbles in this Flotation Nozzle and Air Will Lift Them to the Surface Where a Motor Driven Foam Dispatching Device Will Collect Them to Be Disposed. for Automated Circulation of Washing Machine Water Between this Flotation Washer and Actual Item to Be Cleaned, There is a Frequency Controlled Water Circulation Pump. Washing Detergent is Dosed to the Suction Side of this Pump from Its Own Mixing Vessel. Dirty Washing Water is Returned to Collection Tank of the this Oil Washing Machine / Flotation Washer and the Cleaning Process Will Start. the Washer is Equipped with a Connection for Manual Washing (hose and Nozzle Not Included) this Flotation Washer Was Made in Year 2001 By Finnish Wiser O and It is Manufacturer's Type Wpf-1/4. all Equipment are Built On Same Frame and Tanks, Washer and Pipes are Made of Aisi316l and Ther Structure of Aisi 304. Frame Has Easily Removable Stainless Steel Cover Plates and It is in Very Good Operational Condition: the Equipment Includes the Following Main Items:water Collection Tank, Volume Approx. 160 Liters detergent Tank, Volume Approx 100 Liters, Equipped with a Discharge Pumpwpi-1 Flotation Washer, Water Volume Approx 160 Liters, Equipped with Motor Driven Dispatching Device and Over Flow Tube dispersion Pump, 1.1 Kw / 3000 Rpm, Material Aisi 3042 Pieces Wpfs-1 Pressure Release Valves, Material Aisi 316lone Wiser Flotation Nozzle frequency Controlled Washing Water Circulation Pump, 2.2 Kw/ 3000 Rpm, Volume 0-15m3/h At 2 Bardetergent Pump 1.1 Kw/3000 Rpm control Cabinetpower Requirement 4.6 Kw / 400 V / 50 Hztotal Weight 150 Kg
Additional Information:
Payment Terms :
T/T
Packaging Details : Will be boxed in wooden box.
Delivery Time : In 5 days from payment received
