Coating Machine

We offer a complete product range of Auto Coater Machine

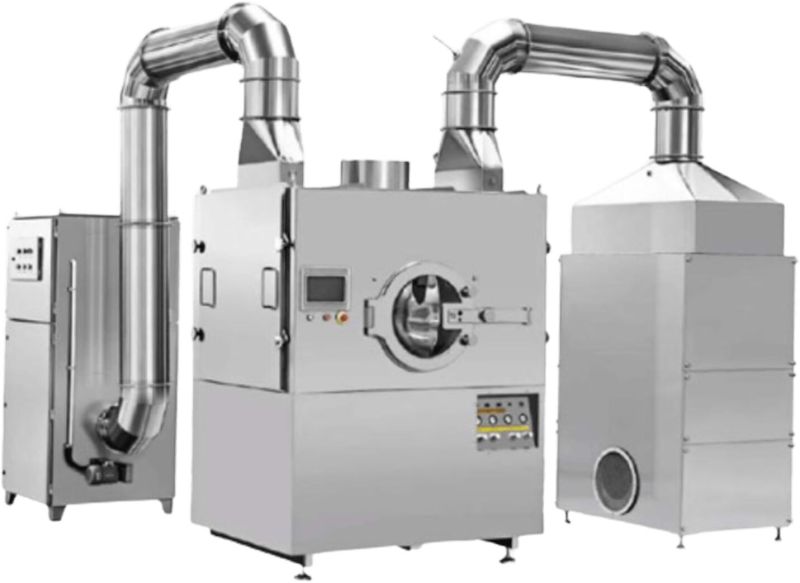

Auto Coater Machine

Auto Coater Machine
₹ 24 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Condition New
  • Power 3-5kw
  • Automatic Grade Automatic
  • Country of Origin 430 V
  • Country of Origin India
  • Number Of Flower Auto Coater Machine
  • Material Stainless Steel
  • Driven Type Electric
  • Grade SS 316
  • Warrenty 1year
  • Working Capacity 50-80 Kg
  • Pan Speed 2-15 RPM
  • Main Drive Motor 3 HP To 7.5 HP

Product Description



Key Information:



  • Pan Size (Inches): Available in 36", 48", and 60" diameters, suitable for medium to large-scale pharmaceutical coating operations.
  • Working Capacity (kg/Batch): Ranges from 50-80 kg for PP-AC-36, 80-150 kg for PP-AC-48, and 150-300 kg for PP-AC-60, accommodating various batch sizes.
  • Pan Speed (RPM): Adjustable via variable frequency drive (VFD), with speeds decreasing as pan size increases (2-15 RPM for PP-AC-36, 2-12 RPM for PP-AC-48, 2-10 RPM for PP-AC-60) to ensure gentle tablet movement and uniform coating.
  • Main Drive Motor (HP): 3-phase 440V, 50 Hz motors for pan rotation; power scales with pan size from 3 HP to 7.5 HP.
  • Inlet Air Blower Motor (HP): 3-phase 440V, 50 Hz motors for hot air supply; ranges from 5 HP to 10 HP, ensuring efficient drying across batch sizes.
  • Material of Construction: GMP-compliant, with SS 316L for contact parts (pan, spray system) and SS 304 for non-contact parts (frame, enclosure).





Operational Features:

  • Pan Design: Fully perforated pan with anti-sliding baffles for optimal tablet mixing and coating uniformity, rotating on a horizontal axis.
  • Coating Process: Suitable for film coating (aqueous, organic solvent-based, enteric) and sugar coating; tablets undergo continuous orbital motion while coating solution is sprayed via atomized spray guns, followed by hot air drying.
  • Hot Air System: Inlet air handling unit with pre-filter (10 micron), HEPA filter (0.3 micron), and steam/electric heat exchanger; delivers hot air (40°C to 80°C) to dry the coating; exhaust system with 5-micron filter for pollution-free operation.
  • Spray System: Equipped with 2-4 high-precision spray guns (depending on model), adjustable arms, and peristaltic pump for controlled spray rates; anti-bearding nozzles ensure consistent application.
  • Control System: PLC-based HMI for automated control of spray rate, air flow, temperature, and pan speed, ensuring repeatability and precision.
  • Applications: Ideal for film coating, sugar coating, and enteric coating of tablets, pellets, and granules in pharmaceutical production, enhancing stability, taste masking, and appearance.
  • Compliance and Safety: Adheres to cGMP and FDA standards, with safety interlocks, dust-tight design, and validation protocols (IQ, OQ, PQ).



 Customization Options:



    • Standard Options: Wet scrubber for exhaust air treatment, advanced CIP (Clean-in-Place) system, and SCADA connectivity for process monitoring.
    • Optional Ancillary Machines:
    • Solution Mixing Tank: Available in capacities from 100L (for PP-AC-36) to 300L (for PP-AC-60), made of SS 316L, with a motorized stirrer (0.5-1.5 HP) for homogeneous coating solution preparation; includes a jacket for heating/cooling and a discharge valve.
    • Spray System: Enhanced pneumatic spray system with 3-6 nozzles (depending on pan size), adjustable spray angle, and precision peristaltic pump; includes PLC-based spray rate controller and automatic nozzle cleaning for minimal downtime.
    • Heating System: External steam or electric heating system integrated with the inlet air blower, with a temperature range of 30°C to 90°C; includes safety sensors and interlocks to prevent overheating, enhancing drying efficiency.
    • Working capacity and drying efficiency vary based on tablet size, shape, and coating material properties.
    • Achieve Superior Tablet Coating – Contact Priyal Propack for Your Auto Coater Machine Today!



Tablet Auto Coater Machine

Model Pan Size (Inches) Working Capacity (kg/Batch) Pan Speed (RPM) Main Drive Motor (HP) Inlet Air Blower Motor (HP) Overall Dimensions W x L x H (mm) Approx. Weight (kg)
PP-AC-36 36 50-80 02/15/25 3 5 1800 x 1500 x 2200 1200
PP-AC-48 48 80-150 02/12/25 5 7.5 2000 x 1700 x 2400 1500
PP-AC-60 60 150-300 02/10/25 7.5 10 2200 x 1900 x 2600 1800
