Dryers

Our product range contains a wide range of Fluid Bed Dryer Machine

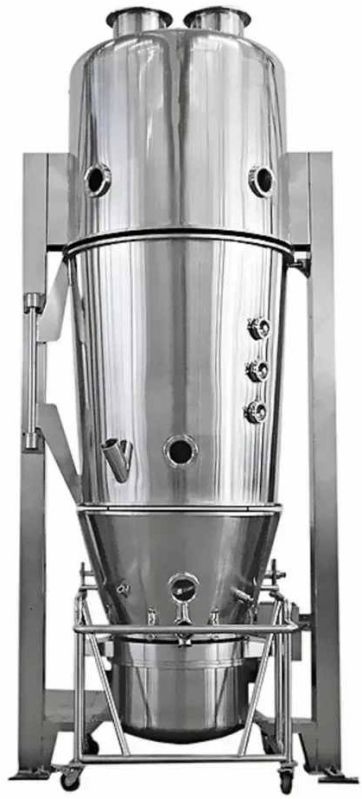

Fluid Bed Dryer Machine

Fluid Bed Dryer Machine
₹ 7 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Usage Drying, Granulation, And Coating In Pharmaceutical, Food, Chemical, And Agricultural Industries
  • Country of Origin Made In India
  • Number Of Flower Fluid Bed Dryer Machine
  • Material Stainless Steel (SS 316)
  • Inlet Air Temperature 50-80°C
  • Drying Time 20-45 Minutes,

Product Description



    • Fluid Bed Dryer (FBD)
      • Priyal Propack’s Fluid Bed Dryer is an efficient drying system designed for uniform drying of wet materials by suspending particles in a heated air stream. This process ensures rapid moisture removal while maintaining product integrity. Commonly used in industries such as pharmaceuticals, chemicals, and food, the dryer features components like electric heaters, pneumatic systems for lifting and sealing, and precise airflow control for optimal performance. Contact parts are made from stainless steel (SS 316) for durability and compliance with hygiene standards.



  • They are design as per (a) ASME Sec VIII Div-1, Ed.2013 CGMP Guidelines.
  • Process connections of tanks are as per SME BPE.



Notes:



  • Batch Capacity (kg): Refers to the weight of material processed per batch, dependent on material bulk density (typically 0.5-0.75 g/cm³). Actual capacity may vary based on material properties.
  • Total Volume (Liters): Volume of the product container, with working volume typically 60-70% of total volume to ensure proper fluidization.
  • Blower Motor (HP): Power rating for the centrifugal blower creating the airflow for fluidization. Higher capacities require larger motors.
  • Steam Consumption (kg/hr): Based on steam at 3-4 kg/cm² pressure for heating. Electric heating options (kW) may be available for smaller models.
  • Heating Capacity (kCal/hr): Thermal energy required for drying, assuming inlet air temperature of 60-80°C.
  • Dimensions and Weight: Approximate values for GMP-compliant models with stainless steel construction (SS 316L for contact parts, SS 304 for non-contact parts).



Operating Conditions:

  • Inlet Air Temperature: Adjustable, typically 50-80°C (up to 120°C for specific applications).
  • Drying Time: 20-45 minutes, depending on material moisture content and batch size.
  • Air Flow Rate: 0.4-0.8 m³/min for smaller models, up to 6 m³/min for larger models.
  • Features:
  • Designed for drying, granulation, and coating in pharmaceutical, food, chemical, and agricultural industries.
  • Complies with cGMP norms, featuring perforated air distribution plates, finger bag filters, and optional PLC-based controls.
  • Safety features include explosion flaps (2-3 Bar pressure rating), earthing devices, and motor overload protection.
  • Optional CIP/WIP systems, air velocity measurement, and inlet air humidity control for precise operation.
  • Applications: Drying of wet granules, powders, and pellets; granulation and coating processes for pharmaceutical tablets, food products, fertilizers, and chemicals.
  • Customization: Capacities and configurations (e.g., top/bottom spray systems, continuous vs. batch operation) can be tailored to specific requirements.
  • Specifications are indicative and may vary by manufacturer. Always consult the equipment supplier for precise details and custom configurations.
  • Advanced controls, Energy-efficient, high airflow, fast drying. Order now!



Fluid Bed Dryer (FBD)

Model Batch Capacity (kg) Total Volume (Liters) Blower Motor (HP) Steam Consumption (kg/hr) Heating Capacity (kCal/hr) Width (mm) Length (mm) Height (mm) Weight (kg)
FBD-5 01/05/25 16 3 15 9000 800 1200 1500 600
FBD-10 05/10/25 32 5 30 18000 900 1400 1600 800
FBD-30 20-30 107 10 60 36000 1000 1600 2000 1200
FBD-60 40-60 200 15 100 60000 1200 2000 2500 1800
FBD-120 80-120 344 20 180 108000 1400 2400 2800 2200
FBD-150 100-150 433 25 200 120000 1500 2600 3000 2500
FBD-200 130-200 600 30 250 150000 1600 2800 3200 2800
FBD-250 160-250 777 40 300 180000 1700 3000 3400 3200
FBD-400 260-400 1200 50 400 240000 1900 3400 3600 4000
FBD-600 400-600 1800 60 500 300000 2100 3800 3800 4800
FBD-800 500-800 2400 75 600 360000 2300 4000 4000 5500
