Industrial Dryers

We are leaders in the market for providing best range of Tray Dryer

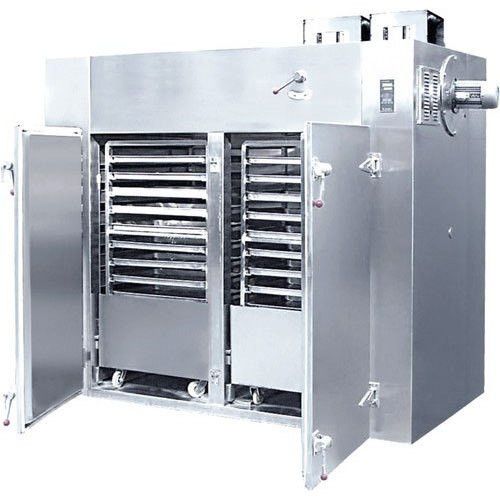

Tray Dryer

Tray Dryer
₹ 28,000 / piece Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Phase Three Phase
  • Country of Origin 440 V
  • Material Stainless Steel
  • Number Of Flower Tray Dryer
  • Country of Origin India
  • Total Carbohydrate 1year
  • Frequency 50HZ
  • Power Electric
  • Automatic Grade Automatic
  • Grade SS316
  • Drying Time 2-6 Hours Per Batch

Product Description



  • Tray Dryer
  • A Tray Dryer is a conventional drying equipment widely used in the pharmaceutical industry for drying granules, powders, and other solid materials. It operates on the principle of hot air circulation, providing uniform drying under controlled temperature conditions.

Notes:

  • Drying Capacity (kg): Approximate values based on material bulk density of 0.5-0.75 g/cm³ and moisture content (typically 10-20% wet basis). Actual capacity varies with material properties and drying time.
  • Tray Size (mm): Standard dimensions (L x W x H); trays are typically made of SS 316L with perforated or solid bottoms based on application.
  • Heating Power (kW): Electric heating (steam or hot water options available; steam at 3-4 kg/cm² requires 1.5 kg steam/kW equivalent).
  • Blower Motor (HP): Ensures uniform air circulation; typically 3-phase, 440V, 50 Hz motor (flame-proof options available).
  • Dimensions and Weight: Approximate values for GMP-compliant models with stainless steel construction (SS 316L for contact parts, SS 304 for non-contact parts).



Operating Features:



    • Temperature Range: 50-150°C (adjustable via digital temperature controller).
    • Drying Time: 2-6 hours per batch, depending on material and moisture content.
    • Air Circulation: Forced air circulation with axial flow blower for uniform drying.
    • Surface Finish: Mirror polish (0.3 Ra) for hygiene and compliance.
    • Applications: Ideal for drying pharmaceutical powders, granules, APIs, and herbal products; ensures uniform drying with minimal product degradation.
    • Safety and Compliance: cGMP-compliant, CE-certified, with insulated chambers, safety interlocks, and optional explosion-proof electricals.
    • Customization: Available with steam/electric heating, PLC controls, and vacuum drying options.
    • Specifications may vary by manufacturer. Always consult the equipment supplier for precise details and custom configurations.
    • Efficient drying for small batches at . Order now!



Stainless Steel Tray Dryer

Model No. of Trays Tray Size (mm) Drying Capacity (kg)* Heating Power (kW) Blower Motor (HP) Width (mm) Length (mm) Height (mm) Weight (kg)
TD-6 6 800 x 400 x 30 03/06/25 3 0.5 900 600 1300 200
TD-12 12 800 x 400 x 30 06/12/25 6 0.5 1400 1000 1400 350
TD-24 24 800 x 400 x 30 12/24/25 9 1 1400 1200 2000 600
TD-48 48 800 x 400 x 30 24-48 15 1 2000 1200 2200 900
TD-96 96 800 x 400 x 30 48-96 21 2 3400 1200 2200 1500
TD-144 144 800 x 400 x 30 72-144 27 3 3400 2000 2300 2000
TD-192 192 800 x 400 x 30 96-192 36 5 4500 2000 2300 2500
