Coating PAN

We are leaders in the market for providing best range of Conventional Coating Pan

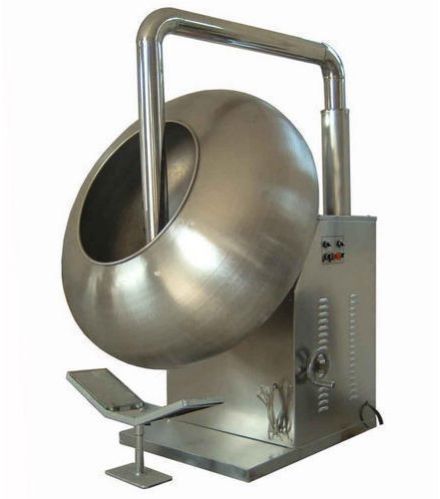

Conventional Coating Pan

Conventional Coating Pan
₹ 1 Lakh / Piece Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Frequency 60 Hz
  • Country of Origin 440 V
  • Country of Origin India
  • Material Stainless Steel
  • Shelf Life 1Year
  • Grade Standard SS 316
  • Pan Size Range 12
  • Capacity Range 80-150 Kg
  • Motor Power Range 0.5 HP To 5 HP
  • Blower Capacity Range 100-800 CFM

Product Description

Key Information:

    • Pan Size (Inches): Ranges from 12" to 60", catering to lab-scale (PP-CCP-12) to large-scale (PP-CCP-60) pharmaceutical production needs.
    • Capacity (kg/Batch): Varies from 2-5 kg for small batches up to 80-150 kg for large batches, accommodating diverse production scales.
    • Pan Speed (RPM): Adjustable via variable frequency drive (VFD); smaller pans (12" and 24") operate at higher speeds (15-40 RPM) for better mixing, while larger pans (36" to 60") range from 10-36 RPM for controlled coating.
    • Motor Power (HP): 3-phase 440V, 50 Hz motors; power scales with pan size, from 0.5 HP for PP-CCP-12 to 5 HP for PP-CCP-60, ensuring efficient rotation.
    • Blower Capacity (CFM): Hot air blower system with 100-800 CFM, delivering air at 40°C to 80°C for uniform drying; includes thermostat control.
    • Material of Construction: GMP-compliant, with SS 316L for contact parts (pan, baffles) and SS 304 for non-contact parts (frame, enclosure).



Operational Features:



    • Pan Design: Semi-ellipsoidal pan with a circular mouth, inclined at 45° for efficient tablet tumbling, charging, and discharging.



    • Coating Process: Suitable for sugar coating; coating material is manually ladled or sprayed (with optional spray system), with hot air drying to vaporize moisture.



    • Hot Air System: Inbuilt blower with electric heaters (1 kW for PP-CCP-12, 2 kW for PP-CCP-24, 3 kW for PP-CCP-36, 4.5 kW for PP-CCP-48, 6 kW for PP-CCP-60); interlocked circuit ensures heaters operate only when blowers are on to prevent overheating.



    • Drive System: Robust MS frame with reduction gearbox and motor, mounted on anti-vibration pads to eliminate the need for a foundation.



    • Baffles: Fixed or detachable baffles to enhance tablet mixing and coating uniformity.



    • Applications: Ideal for sugar coating of tablets, masking taste, enhancing appearance, and protecting active ingredients in pharmaceutical production.



    • Compliance and Safety: Adheres to cGMP standards, with safety interlocks, dust-tight enclosure, and overload protection.







Customization Options:



    • Standard Options: Polishing pan attachment, variable speed pulley, exhaust air plenum system (PLG or GS configuration).



    • Optional Ancillary Machines:



    • Solution Mixing Tank: Available in capacities from 50L (for PP-CCP-12) to 200L (for PP-CCP-60), made of SS 316L, with a motorized stirrer (0.5-1 HP) for homogeneous coating solution preparation; includes a jacket for heating/cooling and a discharge valve.



    • Spray System: Pneumatic spray gun system with 1-3 nozzles (depending on pan size), adjustable spray angle, and peristaltic pump for precise coating solution delivery; includes a PLC-based spray rate controller for uniform application.



    • Heating System: External steam or electric heating system for larger pans (PP-CCP-36 to PP-CCP-60), with a temperature range of 30°C to 90°C, integrated with the blower for enhanced drying efficiency; includes safety sensors to prevent overheating.



    • Capacity and drying efficiency vary based on tablet size, shape, and coating material properties.



    • Enhance Your Tablet Coating Efficiency – Contact Priyal Propack for Your Conventional Coating Pan Today!



Conventional Coating Pan

Model Pan Size (Inches) Capacity (kg/Batch) Pan Speed (RPM) Motor Power (HP) Blower Capacity (CFM) Overall Dimensions W x L x H (mm) Approx. Weight (kg)
PP-CCP-12 12 02/05/25 20-40 0.5 100 600 x 500 x 900 100
PP-CCP-24 24 10/20/25 15-40 1 200 900 x 800 x 1200 200
PP-CCP-36 36 30-50 12/01/36 2 300 1200 x 1000 x 1500 350
PP-CCP-48 48 50-80 12/01/36 3 500 1400 x 1200 x 1600 450
PP-CCP-60 60 80-150 10/30/25 5 800 1600 x 1400 x 1700 600
