Product Code: EK10

The main characteristics are:

• High resolution 65.000 points
• 240*120 pixel blue-white graphic LCD display
• Standalone full automatic testing capacity

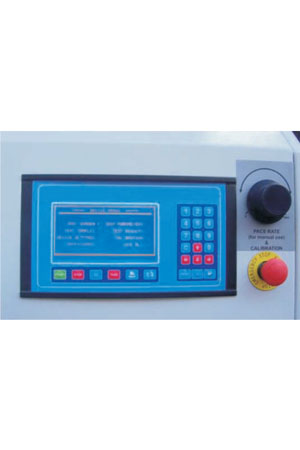

LCD graphics data acquisition and controls system EK10 is designed to control the machine and processing of data from load cells or pressure transducers installed on the compression machine frame. The easy to read LCD graphic display and touch-button data pad keys make the unit quick and straight forward to operate. All interactions with the measuring system are via the front control panel by using simple menu-driven procedures. The EK10 is contained in light alloy housing and its design satisfies the ergonomic requirements for various use. The Ek10 digital graphic display allows real time load vs time graph. At the end of the test cycle, the results can be stored in the large memory or downloaded to a PC in ENKAY software format. Dedicated software package is available for further online data processing, database management and certificate printing.

CPU card by microprocessor 32 bit ARM risk architecture
Can make manual tests if required
Large permanent memory up to 256 test results
RS232C (optional Ethernet) connection at 57600 band
One RS232 serial port for connecting either PC or printer for data transmission
Two analogical channels, use for Load Cell or pressure transduce A sample type and dimensions can be entered respect to the standard
18 key touch membrane keyboard Easy to operate with 6 main function keys Can control two frames.
