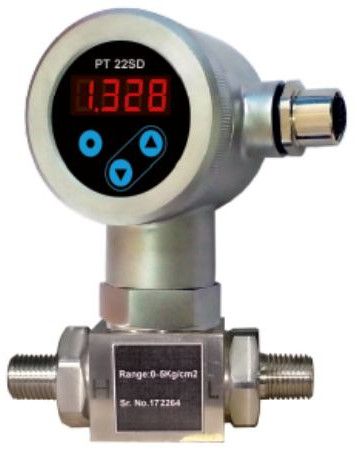

DPT 22SD Differential Pressure Switch Transmitter

DPT-225D – Differential Pressure TransmitterFeatures

• Measuring Range: 0.35 to 25 bar

• Suitable Media: Liquids & Gases

• Accuracy: < ±0.1% of range

• Response Time: < 1 second

• Long-term stability

• Robust design for harsh industrial environments

• High voltage & reverse polarity protection

Description

Electronet Series DPT-225D are Differential Pressure Transmitters designed for fast, reliable, and maintenance-free operation. They are suitable for a wide range of industrial applications involving clear gases and liquids.
The transmitter provides electrical output in 4–20 mA DC or 0–5V DC, proportional to the input pressure. A PNP alarm output (100 mA max.) is also available.
All wetted parts are made of stainless steel and are hermetically welded for maximum durability.

Technical SpecificationsSensor & Measurement

• Sensor Type: Piezo Resistive

• Measuring Range: 35 kPa to 2500 kPa (DP URL)

• Accuracy: ±0.25% F.S.

• Non-linearity: 0.2% of span

• Non-repeatability: <0.1% of span

• Response Time: <10 ms (10% to 90% output change)

• Overpressure Safety: 2× maximum pressure range

• Burst Pressure: 3× maximum pressure range

Electrical

• Power Supply: 12 to 36 V DC

• Display: LED display

• Output 1: 4–20 mA DC / 0–5 V

• Output Load:

  • Max 600 Ω (for 4–20 mA)

  • Max 10 kΩ (for 0–5 V)

• Output 2: PNP alarm output (max. 100 mA)

• Insulation Resistance: >100 MΩ at 100 VDC

• Power Consumption: <15 VA

Process & Environmental

• Process Temperature: –20°C to 120°C max

• Ambient Conditions: Temperature –20°C to +70°C (typical)

• Span/Zero Adjustments: Programmable via software

• Process Connection: As per ordering information

• Mounting: Direct line mount (vertical)

Construction

• Wetted Parts: SS316 (other options available)

• Housing Material: SS316 with IP65 protection / ABS plastic

• Enclosure: Field-mount, weather-proof, IP65

• Area Classification: Safe area

• Electrical Connection: 4-pin M12 female connector

• Weight: approx. 0.6 kg
