Embedded Bluetooth Development Kit (VPL-EBT)

Get Latest Price

I/O Interfaces12 PIO; 2 AIO
Operating Voltages3.3V
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VPL Infotech & Consultants

Preet Vihar, Delhi

4.6/5

(30)

View Number

Member Since 19 Years
Nature of Business Manufacturer
GST No. 07AACFV6024H1Z9

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

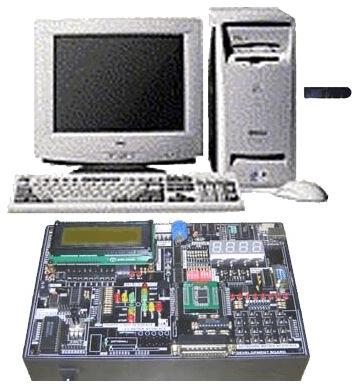

This Bluetooth Trainer is designed to demonstrate the functioning of Bluetooth devices. It includes all that is needed viz. bluetooth Radio Module with Bluetooth stack, Prototyping board, Cables and hardware besides the Dynamic C Integrated Development Environment, Bluetooth drivers, Libraries, Sample programs and many more.

The Kit includes

Bluetooth Radio Module with Bluetooth stack.
Prototyping board.
Cables and hardware besides the Dynamic C Integrated Development Environment.
Bluetooth drivers
Libraries.
The radio range 10+ meters with Low current consumption for long battery life with 2.4GHz Frequency Hopping Spread Spectrum with Digital I/Os.
RTC.
EEPROM.
On board stepper motor interface.
On board LCD display.
On board ADC and On board relay & buzzer interface for switching devices through Bluetooth with RS232/USB interface.

Bluetooth Module Features

BlueCore4 External plug in.
Bluetooth V2.0+EDR Specification System.
8Mb Flash on chip.
Physical Interfaces.
Synchronous serial interface up to 4Mbaud for system debugging.
UART interface with programmable baud rate up to1.5Mbaud with an optional bypass mode.
Full speed USB v1.1 interface.
Bi-directional serial programmable audio interface supporting PCM, I2S and SPDIF formats.
Optional I2C compatible interface.
