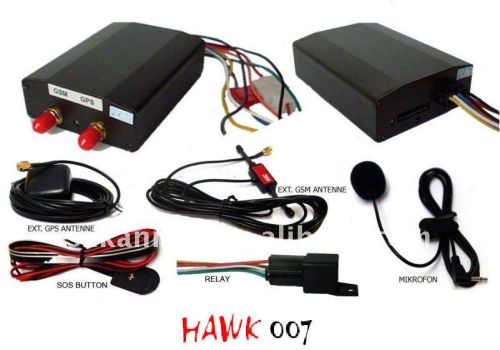

GPS Tracker

Summary function:
Working Based on existing GSM/GPRS network and GPS Satellites, these products can locate and monitor any remote targets by SMS or GPRS.
Positioning and Tracking:
Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
Triggering Emergency Alarm:
When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.
Remote controlling oil and circuit:
You can control the oil and circuit via the unit by SMS in anywhere and anytime.
Remote Monitoring :
In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
Movement Alert :
Send the SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.
Overspeed Alert :
Send the SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.
Geo-fence :
Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.
The unit :
Send SMS to resume the default of unit.
Auto Track :
You can set up auto track by SMS or on-line positioning platform.
Mileage statistics:
ACC checking; cutting off power and alarm.
Compatible with the original anti-theft alarm:
It will send SMS alarm after the original anti-theft alarm warning.
Technical Specifications Of GPS Vehicle Tracker HTS 100
Content
Specifications
Dim.
85mm x 63mm x 25mm(3.3”*2.5”*0.98”)
Weight
160g
Network
GSM/GPRS/GPS
Band
850/1800/1900Mhz or 900/1800/1900Mhz or 850/900/1800/1900
GPS chip
SIRF3 chip
GSM/GPRS Module
Simcom900B
GPS sensitivity
-159dBm
Time To First Fix
Time To First Fix, Cold status 45s, Warm status 35s, Hot status 1s
Work voltage
10V—36V
Battery
Chargeable changeable 3.7V 1500mAh Li-ion battery
Standby
48hours
Storage Temp.
-40°C to +85°C
Operation Temp.
-20°C to +55°C
Humidity
5%--95% non-condensing
