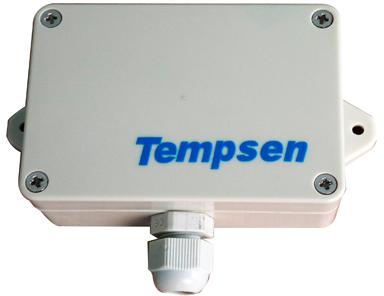

Transmitter Accept input RTDs,Voltage ,current Process – Temperature and Humidity Temperature Range : 0 to 50 Deg C
Temperature Out put : 0 4-20mA ( 2 Wire)
Humidity Range : 0 to 100 % RH
Humidity Out put : 0 4-20mA ( 2 Wire)
Calibration Zero and Span adjustment
Accuracy :±2%rh±0.3k, Power supply : 12-36 VDC
Output Load at 20 mA , 600 ohms maximum @ 24 VDC With Display optional , Range select at factory Single Dual Input optional , wall mounting
