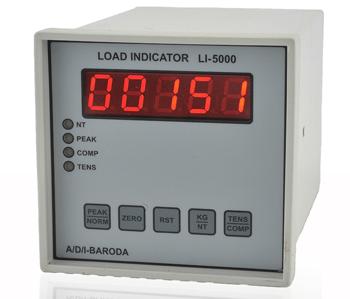

Load Indicator

Get Latest Price

Load cell compatible, 4 wire system.LOAD CELL EXCITATION 10V DC.
GROSS/NET ANNUNCIATION By Scrawling Display.GROSS/NET ANNUNCIATION
=/-0.05% of full scale.RESOLUTION 10,000 Counts Max.
SpecificationsINDICATION 5 Digits with Auto Polarity. Red LED Display of 12.5mm charecter height.
Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Analog & Digital Instrumentation

Makarpura, Vadodara, Gujarat

View Number

Member Since 14 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

INDICATION5 Digits with Auto Polarity. Red LED Display of 12.5mm charecter height.
INPUT Load cell compatible, 4 wire system.INPUT
AMBIENT10 to 50°C.
By Scrawling Display.AMBIENT 10 to 50°C.
Full Range Push Button Zero & Tare.GROSS/NET LOAD Indication selected by key switch.
SpecificationsINDICATION 5 Digits with Auto Polarity. Red LED Display of 12.5mm charecter height.
230V AC, 50HZ.POWER CONSUMPTION 10VA.
=/-0.05% of full scale.RESOLUTION 10,000 Counts Max.
Load cell compatible, 4 wire system.LOAD CELL EXCITATION 10V DC.
RESOLUTION10,000 Counts Max.
GROSS/NET ANNUNCIATION By Scrawling Display.GROSS/NET ANNUNCIATION
GROSS/NET LOADIndication selected by key switch.
INDICATING ACCURACY =/-0.05% of full scale.INDICATING ACCURACY
ZERO & TARE Full Range Push Button Zero & Tare.ZERO & TARE
LOAD CELL EXCITATION10V DC.
POWER CONSUMPTION10VA.
POWER SUPPLY 230V AC, 50HZ.POWER SUPPLY

Applications

Widely used in weighing industry.

Features

Full auto taring.
Moderately Priced.
Ideal for testing force, torque and tension in equipments.
Useful for process industries.
Hopper & cylo feeding system.

MODELS

A - Panel mounted model of 186mm(W)x92mm(H)panel cutout having 250mm depth.
B - Table Top model of 200mm(W)x125mm(H)x120mm(D).
C - Panel mounted Model of 92x92mm Panel cutout having 130mm depth.

OPTIONS

  PEAK HOLD : Peak value is displayed and can be cleared by Reset switch.
  RS-232 Port : 9 pin D Connector for 3 wire serial transmission for hook up with   computer.
  RTC with Printer Port : 25 pin D Connector for centronix compatible parallel   printer port with Real Time Clock.
  OUTPUT : Linear 0 to 10V DC or 4-20mA DC output corresponding to input by 12bit   D to A conversion.
  Resolution : 50,000 count resolution available.
