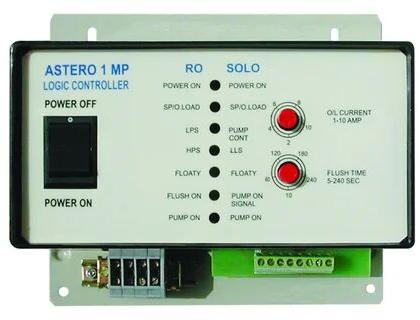

Logic Controller

Product Details

Frequency50 Hz
Power Relay30 A,12V D.C.
Dimensions190 x 150 x 75 mm
BrandAstero
Voltage230 V
Mounting TypeWall Mount
FeaturesLS/PS bypass switch to bypass Low pressure switch/Level switch. LED indications for Power/Pump running OK/LPS/HPS/Overload/Auto flushing. Built in Auto flushing time-selectable.
Operating Temperature5 Degree C to 60 Degree C
Current2- 10 A
Model Name/Number1 MP

Technical Specification:

Product	Astero 1 MP	Astero 3 MP
Controller Supply	230 V A.C. 20%	440 V A.C. 20%, 3 Phase
Protection Overload	140% 5% of set current
Current Ranges	2-10 Amp
Power Relay	30 amps, 12V D.C. coil
Overload	As per ITCC 2 Seconds
Resetting	By Power Button On/Off
Current Setting	Trim Pot on the Panel
HP Range	Up to 2 HP by Power button On/Off	3 HP by Power button On/Off. DOL motor or Star Delta motor
Operating Temperature	5°C to 60°C
Dimensions	190 x 150 x 75 mm Deep
Mounting	Wall/Skid
MOC of Enclosure	MS Powder Coated base plate with ABS Cover
Indications	Power On, Overload, Low Pressure/Level of Product tank, HPS, Auto Flushing	Power ON, Overload, Phase, Low Pressure/Level of product Tank, HPS, Auto Flushing/Level of Raw Tank/Flushing/Pump ON
