paddle wheel flow sensor

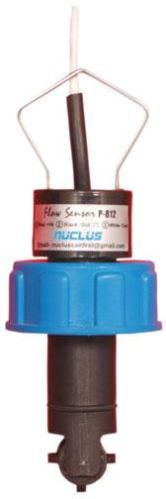

Paddle wheel flow sensor

Listing ID #3924415

Get Latest Price
  • Wetted Parts Sensor BodyPolypropylene (black) or PVDF (black) SS 304 / SS 316
  • Rotor PinHastelloy C
  • Supply current<20 mA @ 10 to 24 VDC
  • Supply voltage10 to 24 VDC regulated
  • Supply Type Manufacturer, Exporter, Supplier
Preferred Buyer From : All over the world
View More Details
Send Enquiry

Company Information

Care Process Instrument
Subhash Bridge, Ahmedabad, Gujarat
View Number
  • Member Since 7 Years
  • Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Product Details no_img_icon

  • Frequency 38 Hz per m/s nominal (11.6Hz per ft/s nominal)
  • Output Type Pulse output ( NPN )
  • Wetted Parts Sensor Body Polypropylene (black) or PVDF (black) SS 304 / SS 316
  • Operating Temperature PP: 10oC to 70oC (14oF to 158oF) ,PVDF: 10oC to 100oC (14oF to 212oF)
  • Rotor Black PVDF
  • Repeatability +0.5% of full range
  • Cable Length 5 m (16.4 ft.) Standard
  • O-rings Viton / PTFE
  • Operating Pressure PP:max10 bar(145 psi) @ 25oC ,PVDF: max12 bar(175 psi) @ 25oC
  • Supply current <20 mA @ 10 to 24 VDC
  • Rotor Pin Hastelloy C
  • Pipe Size Range 15 NB to 300 NB (0.5 to 12 in.)
  • Linearity +1% of full range
  • Supply voltage 10 to 24 VDC regulated
  • Min. Reynolds Number Required 4500
  • Flow Rate Range 0.5 to 5 m/s (1.6 to 16.4 ft./s)

roduct Description

Paddle Wheel Flow Sensor:

Types of Sensor Installation Fittings:

  • Weld Block
  • S T Fitting with Threaded End
  • S T Fittings with Stud End
  • S. T Fitting with Welded Flange
  • Weld Adapter



Applications:

  • Water Treatment
  • Filtration Systems
  • Chemical / Pharmaceutical
  • Bottling / Distillary
  • Concrete Batching plant
  • Textile / Process machine automation
