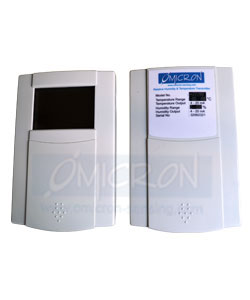

RH1 : Space Mount Humidity Temperature Transmitter

Get Latest Price

Output4 - 20mA, 0 - 10V, RS485 Modbus
Accuracy ± 2%RH / ±0.3 K
Model RH1
Versions Space Mount
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Omicron Sensing Pvt Ltd

Kalbadevi, Mumbai, Maharashtra

View Number

Member Since 10 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Output4 - 20mA, 0 - 10V, RS485 Modbus
Accuracy ± 2%RH / ±0.3 K
Model RH1
Display Optional
Range 0 to 100%RH / -40 to 100ºC
Versions Space Mount

H1 wall mount temperature and humidity transmitters are designed for environment monitoring and controlling in industrial, commercial and other buildings. These transmitters can be used for indoor air temperature and humidity monitoring in various industrial plant, clean room, lab, machine room, office and commercial building, airport, station, library and stadium, etc.

Special Features :

	High performance digital sensors and circuits, ensure accurate measurement
	temperature compensation
	Good long term stability and reliability
	100% interchangeable sensors, no re-calibration needed
	Fast response
	Light and state of art house, easy installation and wiring
	Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability

Relative Humidity

	Sensor	: Digital polymer
	Range	: 0~100%RH
	Output	: 4~20mA(2 wires), 0~10VDC(3 wires), RS485
	Accuracy	: 2,3,4.5%RH(25°C,20~80%RH)
	Hysteresis	: <±1%RH
	Response time	<10s(25°C,in slow air)
	Drift	: <±0.5%RH/year

Temperature

	Sensor	: Solid state band gap, RTD or thermistor
	Range	: 0~50°C
	Output	: 4~20mA(2 wires), 0~10VDC(3 wires), RS485, or RTD, thermistor
	Accuracy	: see model table
	Power	: Current 7.5~36VDC Voltage & Other 15~35VAC/DC
	Output Load	: <600 ohm (current), >2Kohm (voltage)
	Display	: Large LCD display
	Display Resolution	: 0.1°C, 0.1%RH
	Temperature Limit	: 0~70°C, 0~95%RH (Non condensing)
	Storage Temperature	: -20~80°C
	Housing	: Fireproof ABS
	Protection	: IP30
