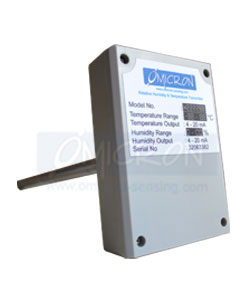

RH2 : Duct Mount Humidity Temperature Transmitter

Sold By : Omicron Sensing Pvt Ltd

Product Specifications

Range: 0 to 100%RH / -40 to 100ºC
Versions: Duct Mount
Display: NIL
Model
Supply TypeManufacturer, Exporter, Supplier, Retailer

Preferred Buyer From : All over the world

Product Overview

H2, 3 and 4 humidity and temperature transmitters are designed for environment monitoring and controlling in industrial and commercial buildings. These transmitters can be used for:

	Humidity and temperature monitoring of supply, exhaust and return air (H2, duct mount)
	Humidity and temperature monitoring in critical environment such as outside air (H3, outside mount)
	Other applications of immersion humidity and temperature monitoring (H4, separate probe)

Features :

	High performance digital sensors and circuits, ensure accurate measurement and temperature compensation
	Good long term stability and reliability
	100% field changeable sensors, no re-calibration needed
	Fast response
	Digital technology applied, multiple output optional, over voltage and reverse polarity protection, high reliability and interference capability
	Industrial design, SS probe and selectable filter
	High protection rate up to IP65

Relative Humidity

	Sensor	: Digital polymer
	Range	: 0~100%RH
	Output	: 4~20mA(2 wires), 0~10VDC(3 wires), RS485
	Accuracy	: 2,3,4.5%RH(25°C,20~80%RH)
	Hysteresis	: <±1%RH
	Response time	<10s(25°C,in slow air)
	Drift	: <±0.5%RH/year

Temperature

	Sensor	: Solid state band gap, RTD or thermistor
	Range	: 0~50°C,0~100°C, -40~60, or others (transmitter)
	Output	: 4~20mA(2 wires) , 0~10VDC(3 wires) , RS485, or RTD, thermistor
	Accuracy	: see model table
	Power	: Current 7.5~36VDC, Voltage & Other 15~35VAC/DC
	Output Load	: <600 ohm (current), >2Kohm (voltage)
	Temperature Limit	: -40~85°C, 0~95%RH (Non condensing)
	Storage Temperature	: -40~80°C
	Housing	: Fireproof ABS Enclosure, SS probe, SS mesh filter or sintered filter
	Protection	: IP65
