Universal Testing Machine Conversion Kit

Being a well-established organization, we are engaged in providing a distinguished range of Universal Testing Conversion Machine Kit.

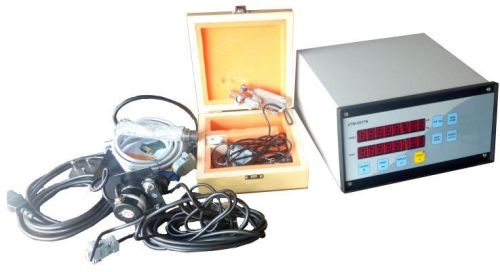

Conversion Kit for Converting Mechanical UTM (DIAL) to Electronic / Digital/ computerised UTM. We offer conversion kit for existing mechanical (Analogue) universal testing machine to Electronic/Digital/ computerised with Electronic Extensometer, Conversion kit includes following Data Acquisition system (Digital panel) Complete Software for UTE (Any capacity) operating through computer Pressure sensor/ Transducer Rotary Encoder Hose pipes Serial cables, connecters. Electronic Extensometer. All above conversion kit developed and manufactured by us, In the event of an order during installation our software person will also be present to complete the installation and clarify technical issues if any. Software facilities and Digital Panel features (With image) mentioned below.

Software facilities-Windows based, Menu driven software :

• Once PC connected, All operations Displays, Keys operation from PC.
• View Report, Print Report Facility. Facility to add customer’s logo in certificate.
• Load Unit Selection (kN, kg, pounds), Displacement unit (mm, inch)
• Online Graph Auto scaling. On line 2 graphs with Extensometer facility.
• Statistics include Water fall diagram for curve, Histogram, variation, Mean Deviation on selected result like Ultimate Load, Ultimate Stress, Total Elongation, % of Elongation etc. Facility to get Batch report as per selection, Facility for Sample Id, customer details
• Data bank defines facility for continuous production specimens. Here you can get statistics over long period like monthly, yearly etc.
• Facility to select different graphs. Plot load, Displacement Vs Time etc.
• Facility for Graph comparison (Compare with standard by plotting both simultaneously). Graph zoom, point tracing, selected portion zoom etc.
• Modulus data, yield calculation by method selection etc.
• Facility to select different specimen types like Round solid, Round Hollow, Rectangular, Irregular shape, TMT Bar etc.

Results with Standard Test include Ultimate Load, Displacement at ultimate Load, Maximum displacement. Ultimate stress, % Elongation, % Reduction in Area, Yield with Method selection. (If specimen doesn't have distinct yield it is recommended to use Extensometer for Yield calculation).

NOTE : DUE TO CONSTANT R&D SPECIFICATION AND FEATURES ARE SUBJECT TO CHANGE WITHOUT NOTICE.
