Our Products
We offer a complete product range of Ci Diaphragm Valve, Pneumatic Cylinder Stainless Steel Pharma Diaphragm Valve Single Acting, Pneumatic Rubber Lined Diaphragm Valve, Pharma Diaphragm Valve and PTFE Lined Diaphragm Valve

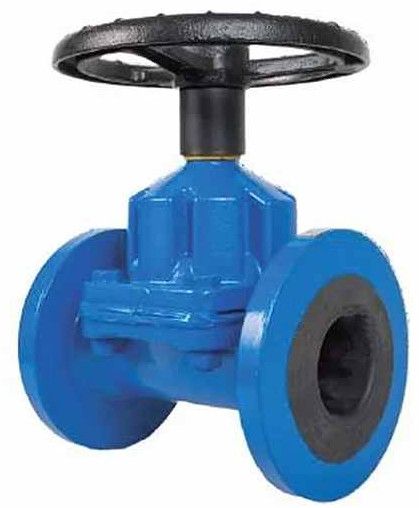

A diaphragm valve, also known as a membrane valve, features an elastomeric diaphragm that seals against a seat to control the flow of fluids. This flexible diaphragm serves as a flow control device, either obstructing, regulating, or isolating fluid flow.
The diaphragm valve operates by adjusting the position of the diaphragm to regulate the fluid flow rate. When the diaphragm presses firmly against its seat, the valve is closed and the flow is halted. These valves utilize linear motion to manage and control the flow of fluids through a linear movement mechanism.
Named after the flexible disc that blocks flow upon contact with the valve seat, diaphragm valves rely on this pressure-responsive diaphragm to exert the necessary force for opening, closing, or modulating the valve's function. Unlike pinch valves, which use a liner in the valve body, diaphragm valves utilize the diaphragm for their operation.
Introducing our top-quality Pneumatic Cylinder Pharma Diaphragm Valve T.C. End, designed specifically for the pharmaceutical industry. This valve is made of high-grade materials, including CF8, CF8M, and CF3M, ensuring durability and longevity. It can withstand temperatures of up to 80 degrees Celsius, making it ideal for various applications. With its reliable diaphragm made of NBR, this valve delivers superior performance and is extremely safe to use. Moreover, it is easy to install and operate, making it a preferred choice among pharmacists and other professionals in the industry. Order now to strengthen your operations efficiency and safety.
A rubber-lined diaphragm valve is a valve that has its diaphragm lined with a rubber material. This type of valve is used in many applications such as sewage treatment, paper processing, mining minerals, power generation stations, steelworks, and chemical industries. The rubber-lined diaphragm valve has a body made of metal or plastic but a hard and thick rubber lining is used to line the diaphragm. This makes the diaphragm and the whole rubber-lined diaphragm valve safe when handling abrasive and corrosive media. As such, the whole wetted component is protected by the rubber lining preventing hydro abrasion. Rubber-lined diaphragm valve manufacturers make the valves in a wide range of materials to help deliver the full potential of an effective and versatile valve to control fluid flow. With combinations of strong metallic material and hard rubber lining, these rubber-lined diaphragm valves can resist corrosion and abrasion. Rubber-lined diaphragm valve manufacturers make the valves with two or more ports and a saddle or weir. The weir is the part where the diaphragm of the valve seats.

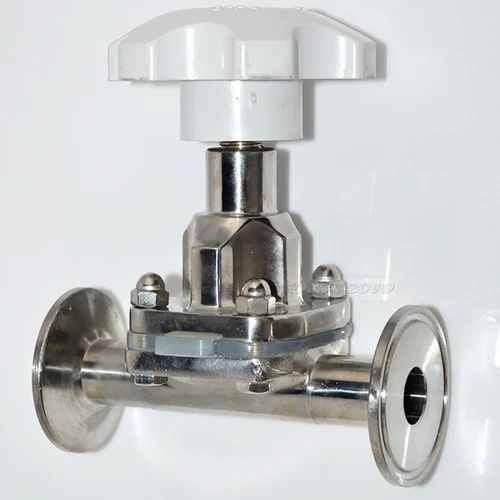

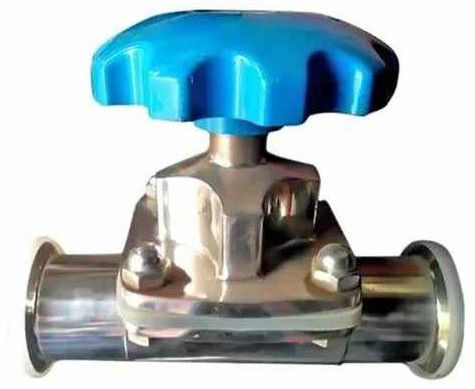

A Pharma Diaphragm Valve is a specialized sanitary valve designed to regulate and isolate flow in high-purity and sterile processing applications. It uses a flexible elastomer diaphragm that is compressed against a weir or straight-through body to control the flow path, ensuring a completely leak-tight seal and eliminating areas where contaminants or bacteria could accumulate. With a smooth, crevice-free internal surface and drainable design, diaphragm valves are ideal for clean-in-place (CIP) and sterilize-in-place (SIP) operations.
Manufactured from SS316L stainless steel or other high-performance alloys with EPDM, PTFE or silicone diaphragms, they are widely used in pharmaceutical, biotech, cosmetic, and food processing systems that require sterile, hygienic, and aseptic operation.
Key FeaturesHygienic design compliant with cGMP, FDA, and ASME-BPE standards
Zero contamination risk with crevice-free internal surfaces
Self-draining body suitable for CIP / SIP processes
Bubble-tight shutoff with high purity elastomer diaphragm
Suitable for throttling and on/off control
Available in manual and pneumatic actuated options
Surface finish up to Ra ≤ 0.4 μm electropolished
Pharmaceutical formulation and API manufacturing
Biotech fermentation and upstream/downstream processing
WFI (Water for Injection) & Purified Water distribution systems
Clean steam, gases & high-purity chemicals
Cosmetics and food processing industries
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,

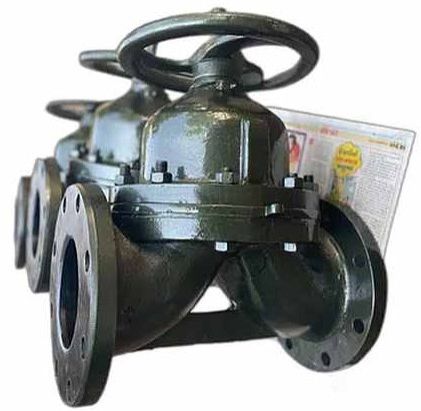

The heart of Diaphragm Valve is Rubber Diaphragm and its rubber lining.
N-TORK RUBBER offer KIPFLO make Unlined and Rubber Lined Diaphragm valves having weir type design as well as straight through type design for various applications.
Valve body: C.I. Gr. 210, CS, and SS 304 – 316
End Connections: Flanged, screwed Butt
Operated: Handwheel or Actuator operated.
Face to face distances: As per BS-5156.
Interchangeability: 100% interchangeable
Diaphragms: Neoprene, Buna-N, EPDM, Butyl, Hypalon
Rubber linings: Ebonite, Neoprene, Butyl and Hypalon.
Size range: For Type-A: 15mm NB to 300mm NB.
Size range: For Type-KB: 25mm NB to 150mm NB

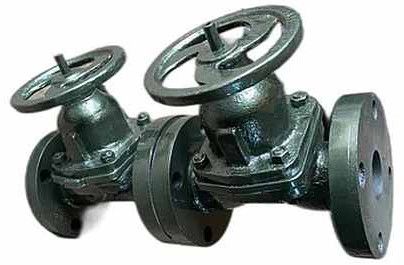

The heart of Diaphragm Valve is Rubber Diaphragm and its rubber lining.
N-TORK RUBBER offer KIPFLO make Unlined and Rubber Lined Diaphragm valves having weir type design as well as straight through type design for various applications.
Valve body: C.I. Gr. 210, CS, and SS 304 316
End Connections: Flanged, screwed Butt
Operated: Handwheel or Actuator operated.
Face to face distances: As per BS-5156.
Interchangeability: 100% interchangeable
Diaphragms: Neoprene, Buna-N, EPDM, Butyl, Hypalon
Rubber linings: Ebonite, Neoprene, Butyl and Hypalon.
Size range: For Type-A: 15mm NB to 300mm NB.
Size range: For Type-KB: 25mm NB to 150mm NB
