Our offered Product range includes Carbon Steel Flanged Flow Control Valve and Flow Control Valves.
Pneumatic Control Valve with Positioner

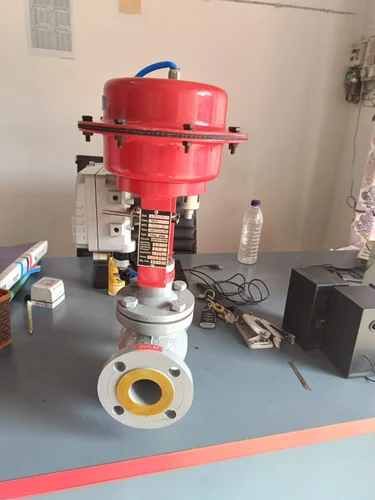

This is a Pneumatic Control Valve Assembly designed for precise regulation of fluid flow in industrial automation and process control systems.
Key Features:
Valve Type: Globe Control Valve
Size & Rating: DN40 (1.5 inch) / Class 150 (150 CL)
Material: WCB (Wrought Carbon Steel Body) for durability and resistance to high pressure & temperature.
Actuator:
Pneumatic Diaphragm Actuator (Spring Return Type)
Red epoxy-coated actuator housing for corrosion resistance
Equipped with a pneumatic air connection (blue tube visible)
Positioner:

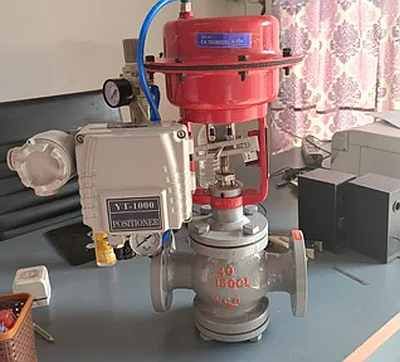

Model: YT-1000
Ensures accurate valve positioning by converting control signals (420 mA or pneumatic input) into actuator movement
Allows precise modulation of flow rather than just ON/OFF operation
Markings on Valve Body:
40 Nominal Bore Size (40 mm)
150 CL Pressure Class 150
WCB Material Grade (Carbon Steel)
Applications:
Chemical & Petrochemical Plants
Oil & Gas Industry
Power Plants
Water Treatment Systems
Pharmaceutical and Food Processing Industries
Advantages:
Provides precise flow control with high reliability
Robust construction suitable for harsh industrial environments
Easy integration with DCS/PLC systems via the positioner
Low maintenance and long service life
This is aPneumatic Control Valve Assemblydesigned for precise regulation of fluid flow in industrial automation and process control systems.
SaValve Type:Globe Control Valve
Size & Rating:DN40 (1.5 inch) / Class 150 (150 CL)
Material:WCB (Wrought Carbon Steel Body) for durability and resistance to high pressure & temperature.
Actuator:
Pneumatic Diaphragm Actuator (Spring Return Type)
Red epoxy-coated actuator housing for corrosion resistance
Equipped with a pneumatic air connection (blue tube visible)
Positioner:
Model:YT-1000
Ensures accurate valve positioning by converting control signals (420 mA or pneumatic input) into actuator movement
Allows precise modulation of flow rather than just ON/OFF operation
Markings on Valve Body:
40 Nominal Bore Size (40 mm)
150 CL Pressure Class 150
WCB Material Grade (Carbon Steel)
Applications:
Chemical & Petrochemical Plants
Oil & Gas Industry
Power Plants
Water Treatment Systems
Pharmaceutical and Food Processing Industries
Advantages:
Provides precise flow control with high reliability
Robust construction suitable for harsh industrial environments
Easy integration with DCS/PLC systems via the positioner
Low maintenance and long service life
