Our Products

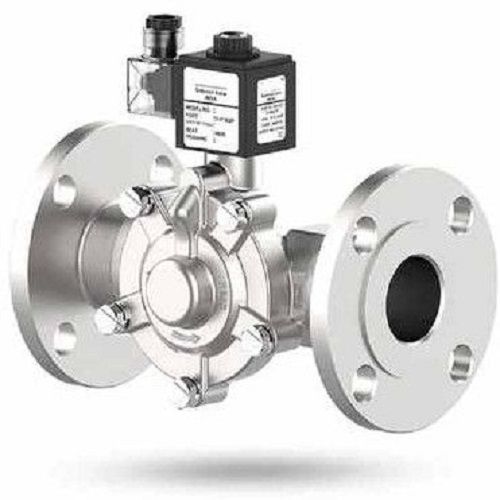

Our Complete range of products are Stainless Steel Solenoid Valve, Direct Acting Solenoid Valve, Flanged Type Solenoid Valve, 2 Way Piston Type High Pressure Solenoid Valve and Pilot Operated Diaphragm Solenoid Valve.

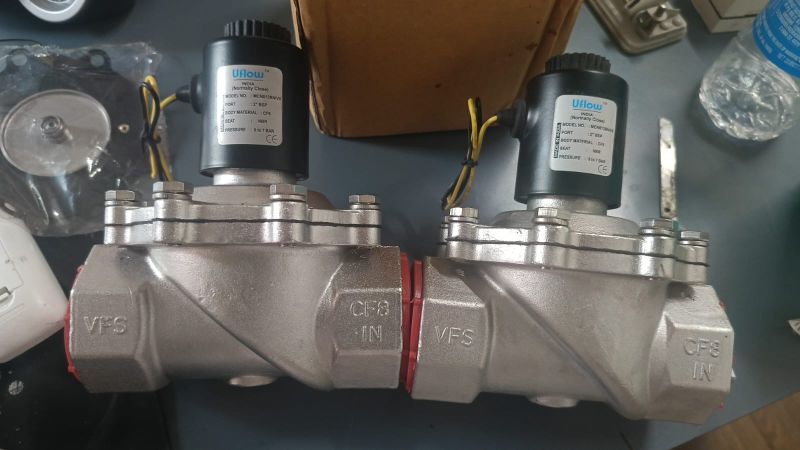

Product Type: Solenoid Valve (Normally Closed)
Brand: N-TORK
Model No.: N-MCN50
Port Size: 2" BSP (British Standard Pipe)
Body Material: CF8 (Cast Stainless Steel, equivalent to SS304)
Seat Material: NBR (Nitrile Butadiene Rubber)
Pressure Range: 0 to 7 bar
Coil Voltage: 230V AC
Country of Manufacture: Made in India
CE Certified
This is an electrically operated valve that controls the flow of liquids or gases.
Normally Closed (NC) means: the valve stays closed when not energized, and opens when electrical power is supplied.
Suitable for automation systems, water and air control, and industrial fluid handling.
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,

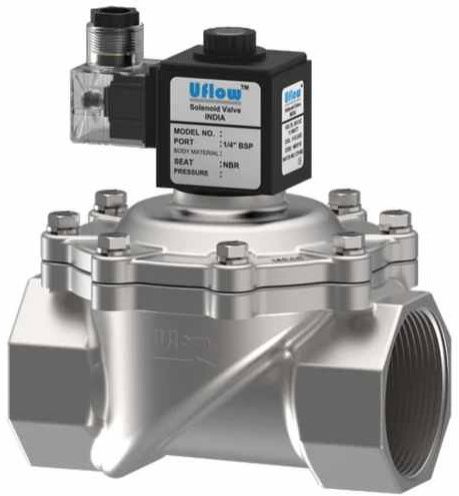

Features:
Size : 1/4BSP
Coil Type : IP-68 Weather Proof Coil with Lead Wire
Valve Type : 2/2 way Normally Closed Screwed End
Body Material : SS 304 (CF8)
Pressure Range : 0 to 10 kg/cm2 (bar)
Temperature (Media) : -30 C to 90 C
Seal : Nitrile (NBR)
Media : Suitable for Air, Water, Chemical, Gas, Oil
Other Specification / Data : Check the tabs given below for details

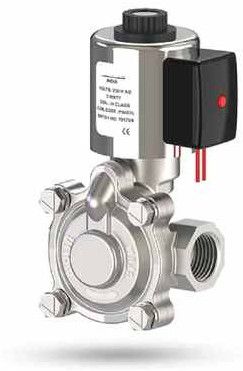

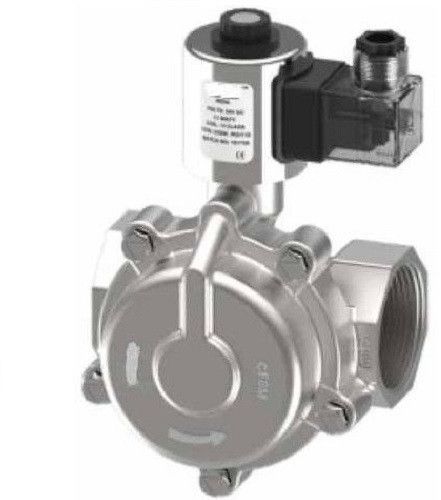

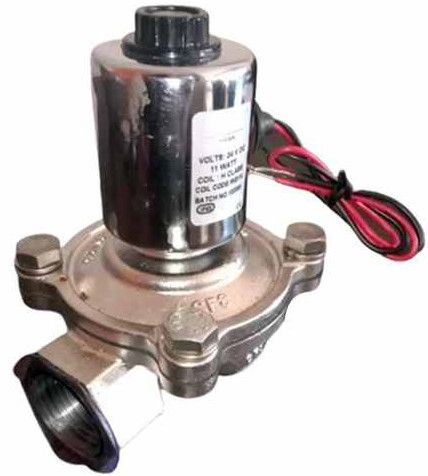

A two-way solenoid valve is an electromechanically operated valve used to control the flow of liquids or gases. This specific model appears to be a pilot-operated diaphragm type, which means it uses line pressure and an internal pilot mechanism to open and close the valve efficiently.
Key FeaturesType: 2-Way Pilot Operated Diaphragm Solenoid Valve
Body Material: CF8 (Stainless Steel 304 equivalent)
Operation: Normally Closed (NC)
Voltage Options: 230V AC / 24V DC (depending on coil)

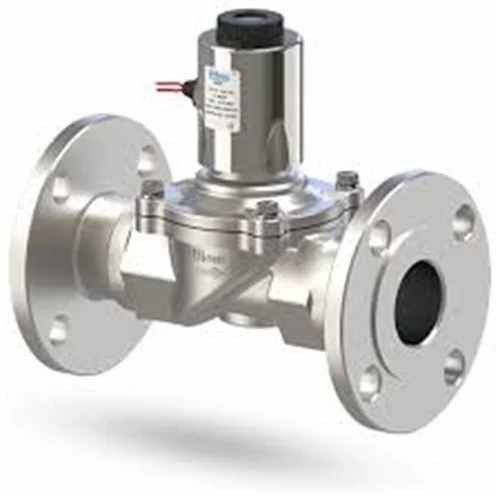

Connection Type: Threaded or Flanged (depending on model)
Medium: Air, Water, Oil, Steam (depending on sealing material)
Seal Material: NBR / EPDM / Viton (varies by application)
Pressure Range: Typically up to 10 bar
Temperature Range: -10C to 90C (approx.)
Country of Origin: Made in India
Water treatment plants
Air compressor systems
Irrigation control
Industrial automation
Chemical and food processing equipment
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,

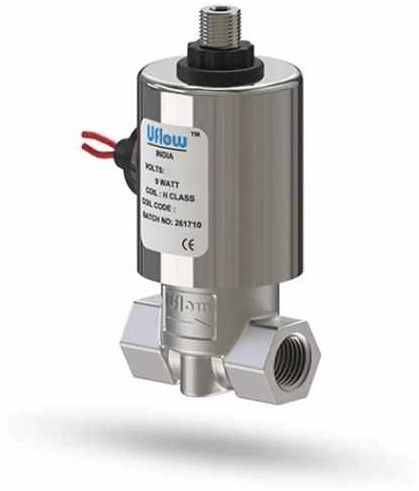

A solenoid valve is an electrically controlled valve. The valve features a solenoid, which is an electric coil with a movable ferromagnetic core (plunger) in its center. In the rest position, the plunger closes off a small orifice. An electric current through the coil creates a magnetic field. The magnetic field exerts an upwards force on the plunger opening the orifice. This is the basic principle that is used to open and close solenoid valves.
SN the brand, who offers normally open & normally close type high flow diaphragm type solenoid valve for air, water, light oil, gas, light chemical
