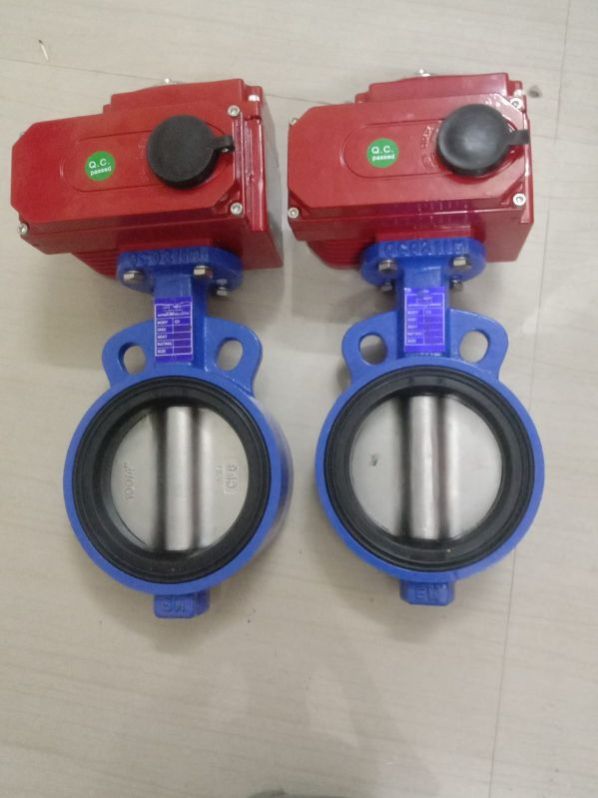

Motorized Butterfly Valve

The Motorized Butterfly Valve is an advanced flow control device designed for efficient, reliable, and automated operation in industrial piping systems. Equipped with an electric actuator, this valve enables precise control of fluid flow remotely or through automation systems.

Key Features:

Electric Actuation: Operated by a high-torque, energy-efficient motor for smooth and accurate valve positioning.

Compact Design: Lightweight and space-saving structure ideal for various industrial applications.

Quick Operation: 90 rotary motion allows fast opening and closing with minimal power consumption.

Durable Construction: Body and disc made from high-grade materials (e.g., Cast Iron, Stainless Steel, or PVC) for long service life and corrosion resistance.

Tight Shut-Off: High-performance sealing ensures zero leakage and reliable operation under pressure.

Manual Override: Allows manual operation during power failure.

Wide Compatibility: Suitable for water, air, gas, oil, and other industrial fluids.

Applications:

Water treatment plants

HVAC systems

Chemical and process industries

Food and beverage industries

Power plants and refineries

Technical Specifications (Typical):

Parameter Specification

Valve Type Motorized Butterfly Valve

Size Range 40 mm to 1200 mm

Body Material Cast Iron / Ductile Iron / SS304 / SS316 / PVC

Disc Material SS / DI / Aluminum Bronze

Seat Material EPDM / NBR / PTFE

Pressure Rating PN10 / PN16 / ANSI 150

Operation On-Off / Modulating

Power Supply 230V AC / 415V AC / 24V DC

Temperature Range -20C to +120C

Product Description:

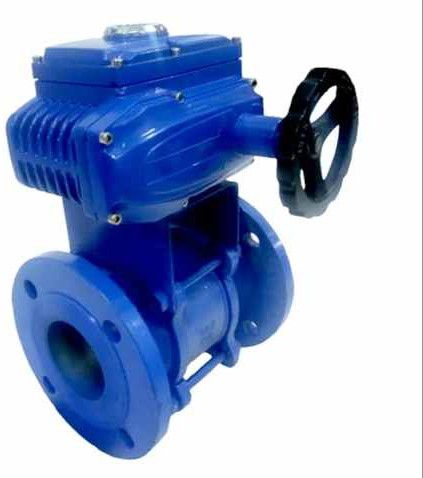

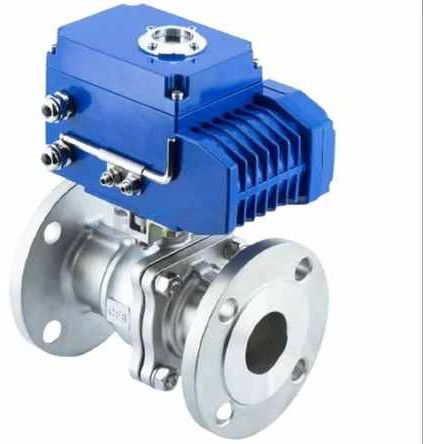

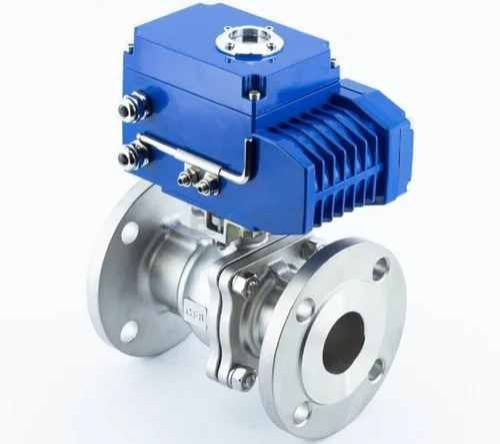

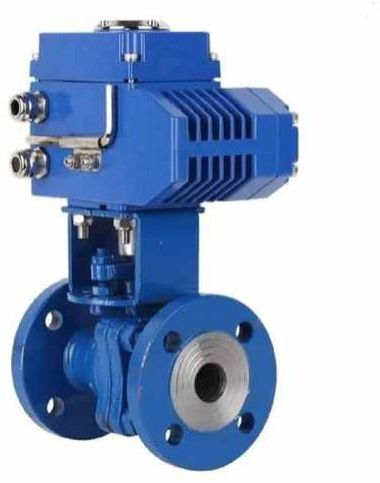

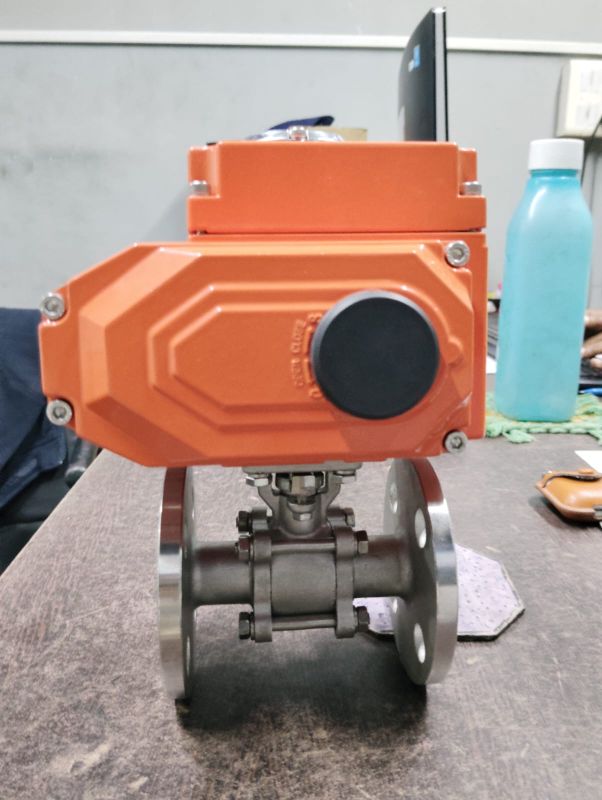

A Motorized Ball Valve is an electrically actuated valve used for automatic control of liquid or gas flow. It combines a ball valve (for tight shut-off and low pressure drop) with an electric actuator that rotates the valve ball 90 to open or close the flow. Designed for remote operation, automation, and precise control, it eliminates manual handling and ensures reliability in various process systems.

Key Features:

• Valve Type: Quarter-turn ball valve

• Operation: On/Off or Modulating (proportional control)

• Actuation: Electric motor-driven actuator (available in 24V, 110V, or 230V AC/DC)

• Body Material: Stainless Steel / Brass / PVC / Carbon Steel

• Ball & Stem: SS304 / SS316 for corrosion resistance

• Sealing: PTFE (Teflon) seat for leak-tight performance

• Control Signal (optional): 420 mA / 010 V DC / 3-point control

• Size Range: to 12 (DN15 DN300)

• Temperature Range: 20C to +180C (depends on material)

• Pressure Rating: PN16 / PN40 / ANSI 150 / customized

• Enclosure: IP65 / IP67 weatherproof or explosion-proof actuator options

Applications:

• HVAC systems

• Water treatment plants

• Chemical and pharmaceutical industries

• Food and beverage processing

• Industrial automation systems

• Oil and gas pipelines

Advantages:

• Fast and reliable actuation

• Energy-efficient operation

• Compact design for easy installation

• Long service life and low maintenance

We manufacture technically sophisticated Motorized Ball Valve that is highly appreciated in the national markets. We have been able to carve a niche as one of the major Motorized Ball Valves based in India. Our Motorized Ball Valve is manufactured from the high technology parts that assure its energy saving property. Easy to operate, the Motorized Ball Valves have low maintenance cost. The Motorized Ball Valve is robust in construction, thus guaranteeing long lasting life.

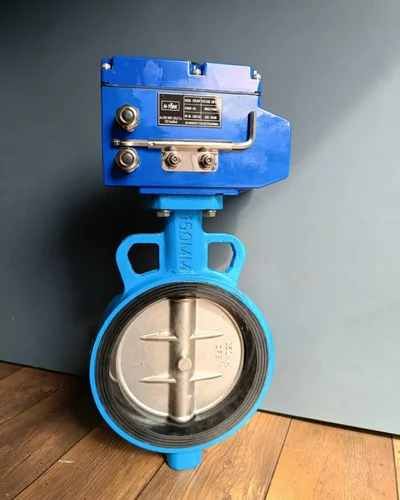

SN ENGINEERS Makes Motorized Butterfly Valves are made of CI, DI, WCB, CF8, and CF8M and include a wide variety of models such as Wafer types, Double Flanged, High Performance, UPVC Body Butterfly valves and others also and that range in size from 2″ to 72″ inches. The butterfly valves are operated by electric actuators that have either on/off or three-point wiring.

A motorized actuator rotates the butterfly valve disc during open & close operation. Aside from this, actuators are easy to install in your system and will provide the best user experience for you. When a valve is opened or closed, the actuator rotates up to 90 degrees using electrical energy to manage the valve medium.
