Our Products
We offer a complete product range of Forged Ball Valve, Pneumatic 3 Way Floating Ball Valve, Pneumatic 3 PC Metal To Metal Ball Valve, pneumatic fep lined floating ball valve and 3 Piece Design High Pressure 3000 Wog Ball Valve
With the years of modern experience, we have turned into a prominent manufacturer, supplier and service provider of a wide array ofLever Operated Ball Valve. Our valves are pertinent in different commercial ventures including Food and dairy businesses, Paints, Water works, Breweries, Automobile, Distilleries, Agriculture and numerous others. These valves are safe even to the most forceful chemicals that are known for debasing distinctive metals. Our array ofLever Operated Ball Valveis sensibly evaluated as contrast with alternate valves accessible in the business sector like metallic vales, Ptfe valves and others.
"N-TORK" Offers Pneumatic Rotary Actuator Operated "3, 4 & 5 Way" Design Investment Casting CF8 / CF8M / WCB Floating Ball Valve, engineered for multiple Diverting / Mixing Operations in the down stream. TYPE : "T" . PORT / "L" . PORT / "X" . PORT In Full Bore / Reduce Bore.

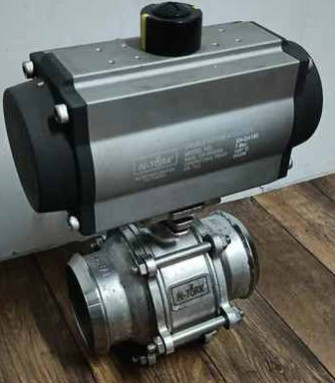

N-TORK Brand of Pneumatic Actuator OperatedBall Valve Manufacturer& Supplier in India. We have a wide range of Ball Valve for Water, Gas, Air & Oil Applications. This Valve we Designed 3 (Three) Piece Floating which has Standard Design, Valve Face to Face Dimension, Leakage Class and other useful Specifications.
We make Our Pneumatic Ball Valve in to 14with three end connection Screwed End, Flanged End, and Socket Weld so complete solution for Industry and Users. Aira Euro Automation design and manufacture a range of high integrity instrumentation Pneumatic Ball valves for worldwide applications, yes we supply worldwide as per customer requirement and their drawing.
Accessories that you can use with this Ball Valve:
Features
This Very High Pressure 3/8 inch two piece ball valve has a 3/8 female NPT thread on either side for a easy connection to a 3/8" Male NPT Pipe Thread. It is manufactured out of high grade 316 stainless steel. A full port design, rated at 3000 PSI, and WOG ready (Water, Oil, Gas). It is Designed to control flow on a 3/8 line with a simple on and off 90 degree quarter turn of the handle. Handles can be locked in the open or closed position using a latch lever lock and these high pressure valves have a mounting pad.

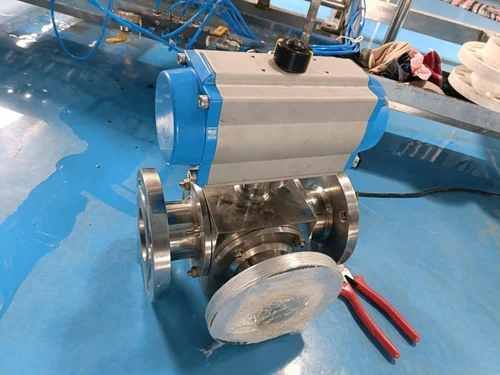

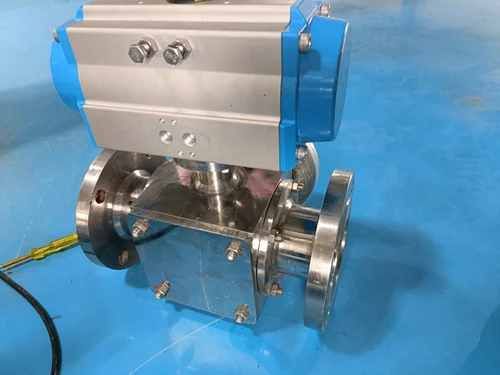

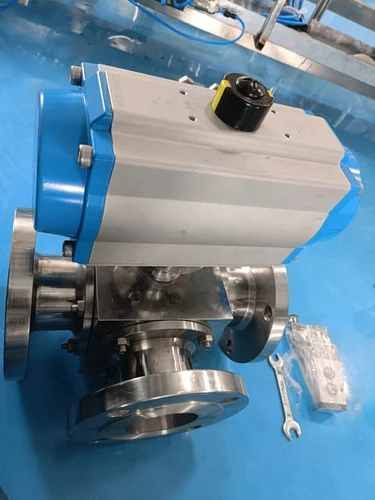

The three way ball valve is configured with Shut-off. The three ports are configured as on at bottom and one each on the right and left of the valves. With this, three way shut-off ball valve, the two different Medias can flow separately from either of the two sides of the valve to the bottom side of the valve and can be stopped.
Alternately the three way shut off ball valve is features for diverting single media from the bottom port of the valve is either side, with shutting off of the media.

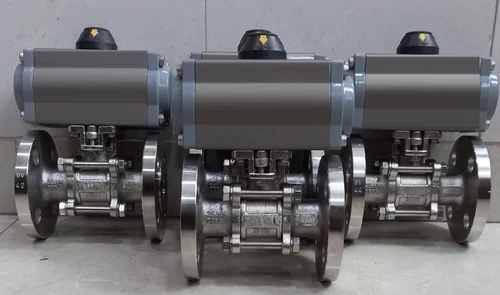

SN ENGINEERS manufacturer, and supplier of pneumatic rotary actuator operated 2 pieceFire safe& Floating Design Ball valve with standard CE approved Pneumatic actuator. It is suitable for Pressure Up to 10 BAR and Temperature Up To 180C.
We use WCB, CF8, CF8M, CF3M casting materials to make Valve Body and CF8, CF8M for Ball. This Ball valve available in to 14 inches size has PTFE, CFT, GFT, PEEK, TFM seats. We make it with Flanged End to ASME B 16.5 150 class & 300 class. We also make it up to 1500# class on customer request.
N-TORK s the brand name of manufacturing ball valves and for your convenience, we manufacture a2 piece design wafer type ball valvewith a replaceable seat and CE approved rotary actuator.
We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.
We offer it in 1 to 4 inches in size. 180C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5
pplicationIsolationFeatures / Benefit
Full Bore, Reduce BoreBlow Out Proof StemLow Torque, Antistatic DeviceSpring Loaded Seat, Stem ExtensionLocking Device, Double Block & Bleed, Drain & Vent, Self Relieving Seat / Double Piston Seat, Corrosion Resistant Low Friction Bearing, Emergency Sealant InjectionTrunnion Mounted Design StemFire Safe Test Requirement as per API 607 & API 6FA
Ansi Class / Rating150#, 300#, 600#, 900#Design StandardAPI 6D, BS EN ISO 17292 , ASME B16.34, Testing StandardAPI 6D, API 607, API 6FAF to F StandardAPI6D, ASME B16.10End Connection StandardASME B16.5, ASME B16.47Size50 mm to 1200 mmMaterials
Body : WCB, CF8, CF8M, Hast Alloy, Super Duplex, Alloy 20, LCB, LCC etcSeat : RPTFE, GFT, CFT, Viton, Peek, Devlon etc
EndsFlanged End, Butt Weld End, Ring Type JointOperationMannual with Gear, Pneumatic, Electric, Gas Over Oil, Gas Powered, Hydraulically Operated etc
Floating Ball ValvesAll Products
Floating Ball Valves
| Size | " to 8" (8 mm to 200 mm) |
| ASME Class | Class 150 to 2500 |
| Design Standard | ISO 17292, API 608, API 6D |
L&T Valves manufactures a versatile range of Process Ball Valves in single, two and three piece constructions. The valves are available in full-bore and regular-bore designs, in a variety of end connections and materials to suit customer requirements.
The valves are of floating-ball design where the ball moves towards the downstream seat, under pressure, to effect a tight seal.
Ball Valve Description

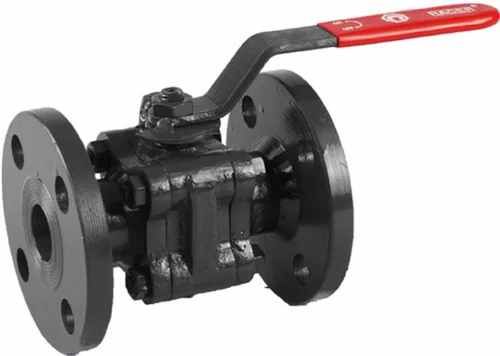

A Ball Valve is a quarter-turn valve that uses a hollow, perforated, and pivoting ball to control the flow of liquids or gases. When the valve handle is turned 90 degrees, the ball rotatesallowing full flow when open and completely blocking the passage when closed.
Ball valves are widely used in industrial applications due to their durability, tight sealing, and low operating torque. They provide excellent shut-off capabilities even after long periods of disuse and are suitable for both on/off and control applications.
Key Features:
Quarter-turn operation for quick opening and closing
Compact design with minimal pressure drop
Available in two-piece, three-piece, and flanged types
Can be operated manually or with electric/pneumatic actuators
Suitable for water, gas, oil, steam, and chemical applications
Materials Available:
Stainless Steel, Carbon Steel, Brass, PVC, and Cast Iron
Common Sizes:
" to 12" (larger sizes available on request)
End Connections:
Screwed (BSP/NPT), Flanged (ANSI/DI
N), Socket Weld, Butt Weld
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,
The three way ball valve is configured with Shut-off. The three ports are configured as on at bottom and one each on the right and left of the valves. With this, three way shut-off ball valve, the two different Medias can flow separately from either of the two sides of the valve to the bottom side of the valve and can be stopped.
Alternately the three way shut off ball valve is features for diverting single media from the bottom port of the valve is either side, with shutting off of the media
High-pressure pneumatic ball valves are available in single-acting and double-acting actuator types. To keep the project safer and run well, we will select the actuator according to the rule of 50% safety factor. Ensure the actuator could open/close the valve fully. The thicker valve walls make the valve safer in operation. Withstand high pressure up to 200bar. Widely used in heavy industries. Available in 2-way and 3-way.
Control extreme pressures effortlessly with our pneumatic high-pressure ball valves. Designed for reliability and safety, these valves ensure leak-free operations in challenging environments. Enhance your system with our high-quality valves
With the years of modern experience, we have turned into a prominent manufacturer, supplier and service provider of a wide array of Lever Operated Ball Valve. Our valves are pertinent in different commercial ventures including Food and dairy businesses, Paints, Water works, Breweries, Automobile, Distilleries, Agriculture and numerous others. These valves are safe even to the most forceful chemicals that are known for debasing distinctive metals. Our array of Lever Operated Ball Valve is sensibly evaluated as contrast with alternate valves accessible in the business sector like metallic vales, Ptfe valves and others.
With the years of modern experience, we have turned into a prominent manufacturer, supplier and service provider of a wide array of Lever Operated Ball Valve. Our valves are pertinent in different commercial ventures including Food and dairy businesses, Paints, Water works, Breweries, Automobile, Distilleries, Agriculture and numerous others. These valves are safe even to the most forceful chemicals that are known for debasing distinctive metals. Our array of Lever Operated Ball Valve is sensibly evaluated as contrast with alternate valves accessible in the business sector like metallic vales, Ptfe valves and others.
A single piece ball valve is a type of valve where the body is made from a single, solid casting. This design eliminates potential leakage points that can occur at joints, making it more reliable and durable in many applications

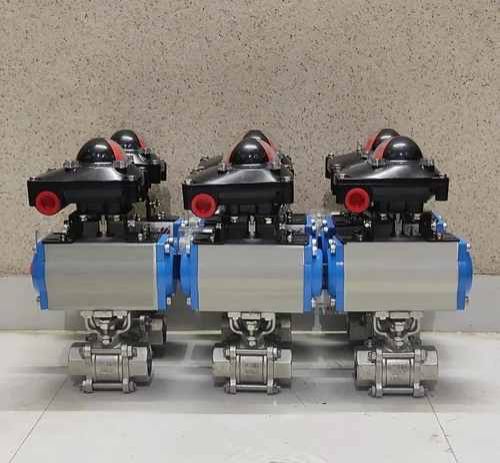

N-TORK Brand of Pneumatic Actuator Operated Ball Valve Manufacturer & Supplier in India. We have a wide range of Ball Valve for Water, Gas, Air & Oil Applications. This Valve we Designed 3 (Three) Piece Floating which has Standard Design, Valve Face to Face Dimension, Leakage Class and other useful Specifications.
We make Our Pneumatic Ball Valve in to 14 with three end connection Screwed End, Flanged End, and Socket Weld so complete solution for Industry and Users. Aira Euro Automation design and manufacture a range of high integrity instrumentation Pneumatic Ball valves for worldwide applications, yes we supply worldwide as per customer requirement and their drawing.
Accessories that you can use with this Ball Valve:
On/off Indicator
Namur Standard Solenoid Valve in all Standard
Pneumatic & Electro-Pneumatic Valve Positioner
Declutchable Manual Override
Limit Switches for On/Off Indication at Panel Board
Filter + Regulator Combination with Pressure Gauge
Air Lock Valve
SN ENGINEERS manufacturer, and supplier of pneumatic rotary actuator operated 2 piece Fire safe & Floating Design Ball valve with standard CE approved Pneumatic actuator. It is suitable for Pressure Up to 10 BAR and Temperature Up To 180°C.
We use WCB, CF8, CF8M, CF3M casting materials to make Valve Body and CF8, CF8M for Ball. This Ball valve available in ½” to 14” inches size has PTFE, CFT, GFT, PEEK, TFM seats. We make it with Flanged End to ASME B 16.5 150 class & 300 class. We also make it up to 1500# class on customer request.

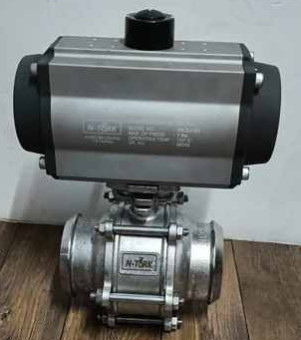

N-TORK s the brand name of manufacturing ball valves and for your convenience, we manufacture a 2 piece design wafer type ball valve with a replaceable seat and CE approved rotary actuator.
We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.
We offer it in 1” to 4” inches in size. 180°C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5
Our vast industrial expertise in this domain has helped us in offering heat resistant Brass Ball Valve at most affordable market prices. Our professionals manufacture these valves in the compliance with industry set quality parameters. Made from cent percent brass, these valves are widely demanded among the clients for their heat resistance, fine finish and hassle-free performance.
"N-TORK" Ball Valve has a spherical plug as a closure member. Seal on ball valves is excellent, the ball contact circumferential uniform the seat, which is usually made of soft materials. They are used in steam, water, oil, gas, air, corrosive fluids, and can also handle slurries and dusty dry fluids.
N-TORK" Offers Pneumatic Rotary Actuator Operated "3, 4 & 5 Way" Design Investment Casting CF8 / CF8M / WCB Floating Ball Valve, engineered for multiple Diverting / Mixing Operations in the down stream. TYPE : "T" . PORT / "L" . PORT / "X" . PORT In Full Bore / Reduce Bor
SN ENGINEERS Makes Motorized Butterfly & Ball Valves are made of CI, DI, WCB, CF8, and CF8M and include a wide variety of models such as Wafer types, Double Flanged, High Performance, UPVC Body Butterfly valves and others also and that range in size from 2″ to 72″ inches. The butterfly valves are operated by electric actuators that have either on/off or three-point wiring.
A motorized actuator rotates the butterfly valve disc during open & close operation. Aside from this, actuators are easy to install in your system and will provide the best user experience for you. When a valve is opened or closed, the actuator rotates up to 90 degrees using electrical energy to manage the valve medium.
We manufacture technically sophisticated Motorized Ball Valve that is highly appreciated in the national markets. We have been able to carve a niche as one of the major Motorized Ball Valves based in India. Our Motorized Ball Valve is manufactured from the high technology parts that assure its energy saving property. Easy to operate, the Motorized Ball Valves have low maintenance cost. The Motorized Ball Valve is robust in construction, thus guaranteeing long lasting life.
Afour-way ball valveis a specialized type of valve designed to control the flow of fluids through four different ports, allowing for complex flow configurations and switching between multiple lines.
How It Works
At the heart of the valve is arotating ballwith internal channels. By turning the ball (typically 90 or 180), the valve redirects flow between different ports. Depending on the internal bore designT-port, L-port, orX-portyou can achieve various flow paths:
T-port: Connects three of the four ports at once.
L-port: Connects two adjacent ports.
X-port: Allows diagonal flow between opposite ports.
Key Features
Four connection portsfor versatile routing.
High-pressure resistance, often up to 500 bar (7250 PSI).
Reliable sealingusing materials like POM or FKM to prevent leaks.
Durable construction, typically from stainless or zinc-plated steel.
Common Applications
Hydraulic systemsrequiring directional control.
Chemical and pharmaceutical industriesfor switching between media.
Process automationwhere multiple flow paths are needed.
N-TORK s the brand name of manufacturing ball valves and for your convenience, we manufacture a 2 piece design wafer type ball valve with a replaceable seat and CE approved rotary actuator.
We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.
We offer it in 1” to 4” inches in size. 180°C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5
SN ENGINEERS MakesMotorized Butterfly & Ball Valvesare made of CI, DI, WCB, CF8, and CF8M and include a wide variety of models such as Wafer types, Double Flanged, High Performance, UPVC Body Butterfly valves and others also and that range in size from 2 to 72 inches. The butterfly valves are operated by electric actuators that have either on/off or three-point wiring.
A motorized actuator rotates the butterfly valve disc during open & close operation. Aside from this, actuators are easy to install in your system and will provide the best user experience for you. When a valve is opened or closed, the actuator rotates up to 90 degrees using electrical energy to manage the valve medium.
This Very High Pressure 3/8 inch two piece ball valve has a 3/8 female NPT thread on either side for a easy connection to a 3/8" Male NPT Pipe Thread. It is manufactured out of high grade 316 stainless steel. A full port design, rated at 3000 PSI, and WOG ready (Water, Oil, Gas). It is Designed to control flow on a 3/8 line with a simple on and off 90 degree quarter turn of the handle. Handles can be locked in the open or closed position using a latch lever lock and these high pressure valves have a mounting pad.
Features
N-TORK s the brand name of manufacturing ball valves and for your convenience, we manufacture a2 piece design wafer type ball valvewith a replaceable seat and CE approved rotary actuator.
We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.
We offer it in 1 to 4 inches in size. 180C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5
With the years of modern experience, we have turned into a prominent manufacturer, supplier and service provider of a wide array ofLever Operated Ball Valve. Our valves are pertinent in different commercial ventures including Food and dairy businesses, Paints, Water works, Breweries, Automobile, Distilleries, Agriculture and numerous others. These valves are safe even to the most forceful chemicals that are known for debasing distinctive metals. Our array ofLever Operated Ball Valveis sensibly evaluated as contrast with alternate valves accessible in the business sector like metallic vales, Ptfe valves and others.
Flush Bottom
The valve is compact segmented ball type designed to open directly in the Tank, Reactor, for 100% flushing or discharging of material. The cavity in-between ball and Body filled with PTFE or application suitable cavity filler to prevent fluids entrapment leading to contamination and production loss.
Designs:MPPL flush Bottom Valves are designed in single piece, two piece and three piece construction to suit tank design.

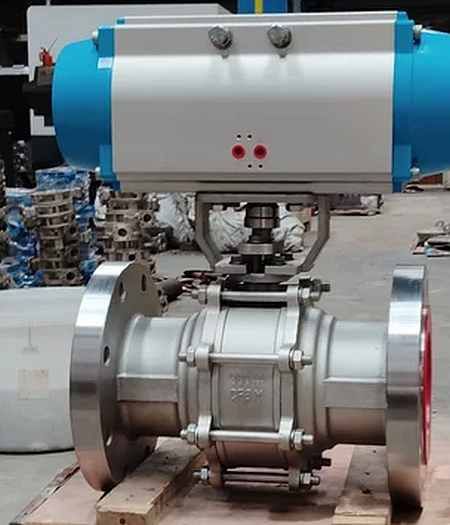

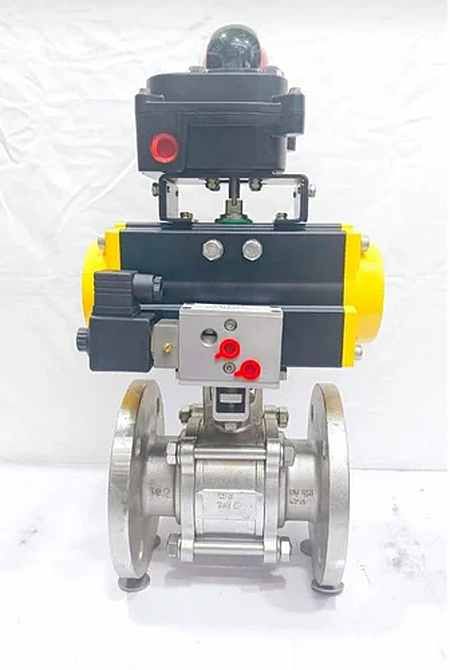

SN ENINEERS has a huge Ball Valve collection and one of the models is a 3 Piece Fire Safe & Floating Design Ball Valve which is operated by a pneumatic rotary actuator. We use WCB, CF8, CF8M, CF3M casting materials to make the valve body and CF8, CF8M materials for the Ball. The seat connects Metal to Metal and it can sustain Pressure up to 10 BAR. This Ball valve is available in to 4 Inch in size and we can also make it up to 10 inches on request.
Our model can sustain -50C to 500C temperature and we are ready to make up to 800C temperature valves on a customers request. It is available in two end connections either screwed Or flanged end connection with 150#, and we can make 300# & 600# class on request.
"N-TORK" Ball Valve has a spherical plug as a closure member. Seal on ball valves is excellent, the ball contact circumferential uniform the seat, which is usually made of soft materials.They are used in steam, water, oil, gas, air, corrosive fluids, and can also handle slurries and dusty dry fluids.
N-TORK s the brand name of manufacturing ball valves and for your convenience, we manufacture a2 piece design wafer type ball valvewith a replaceable seat and CE approved rotary actuator.
We have fully inhouse production and we use WCB / CF8 / CF8M / CF3M casting material for Body, CF8 / CF8M / CF3M material for Balls and PTFE / GFT / CFT / TFM / PEEK material for seats.
We offer it in 1 to 4 inches in size. 180C temperature is the maximum capacity of this valve and can sustain 10 BAR working pressure. It has Class 150# wafer type Flanged end connections to ASME B 16.5
