Our Products

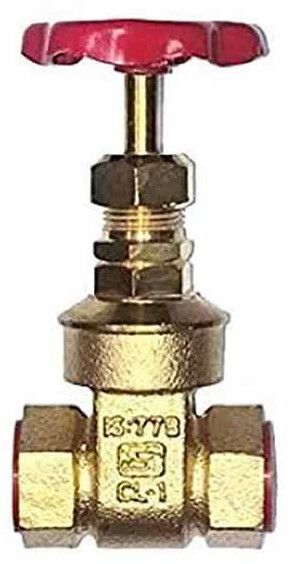

Our Complete range of products are Industrial Gate Valves, Forged Steel Gate Valve, Cast Iron Sluice Valves, Carbon Steel Flanged Gate Valve and Gun Metal Brass Gate Valve.

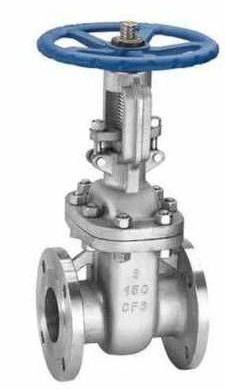

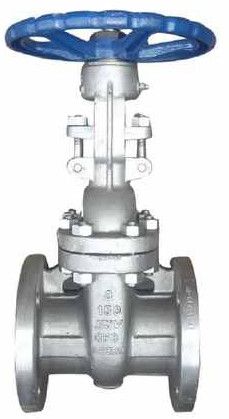

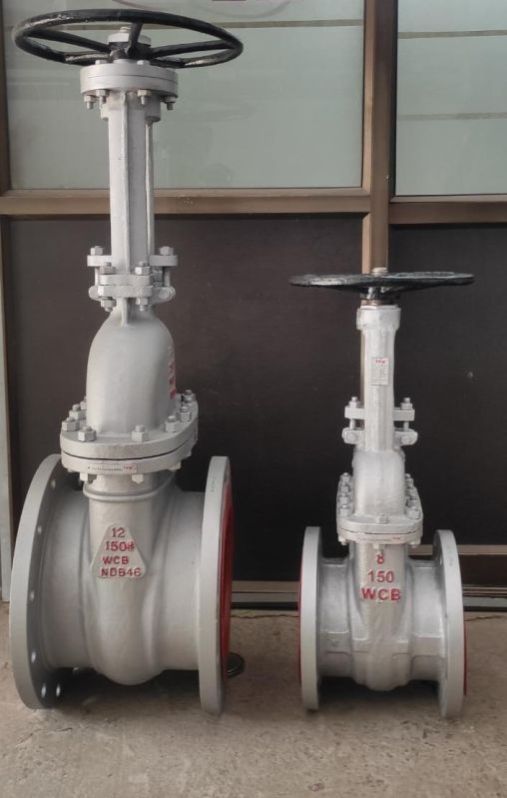

A gate valve is a linear motion valve designed to start or stop the flow of fluid in a pipeline. It operates by lifting a rectangular or circular gate plate out of the path of the flow. When fully open, gate valves provide minimal flow resistance and a straight-through passage, making them ideal for unrestricted fluid flow. They are commonly used in applications where the valve remains either fully open or fully closed and are not recommended for throttling purposes.
Gate valves are widely used in water supply systems, oil & gas pipelines, chemical and process industries, and power plants due to their durability and low-pressure drop. They are available in various body materials such as cast iron, ductile iron, carbon steel, stainless steel, bronze, and alloy steels to suit different media and temperature ranges.
Key FeaturesFull-bore design ensures minimal pressure loss
Suitable for bi-directional flow
Tight sealing to prevent leakage
Available in rising stem and non-rising stem options
Wide range of sizes and pressure ratings
Manual, electric, pneumatic, or hydraulic actuation available
Water distribution and treatment plants
Oil & petroleum refining
Power generation
Chemical, pharmaceutical, and process industries
HVAC and fire-fighting systems
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,

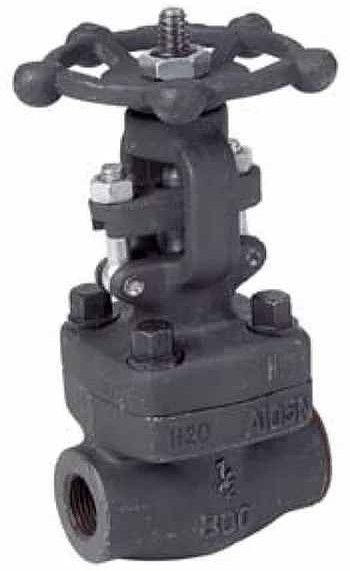

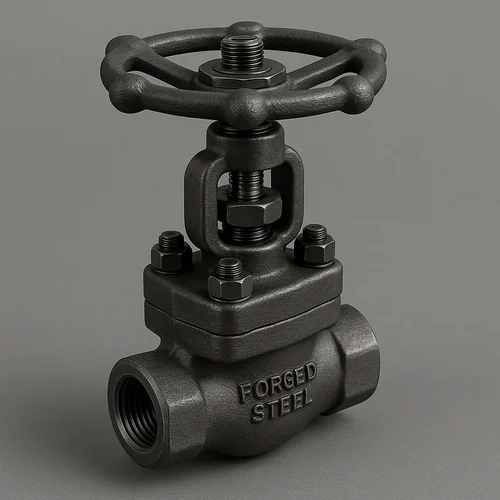

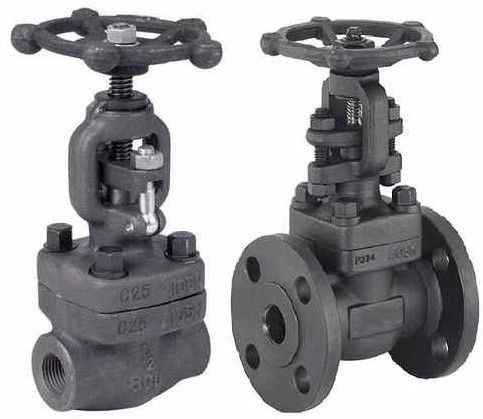

ASTM A105 Valves are made up of a special chemical composition which can be used to make valves of ASME B16.34 and B16.10 face to face dimensions. The material has carbon, manganese, phosphorus, sulfur, silicon, copper, nickel, chromium, molybdenum and vanadium in it. The ASTM A105 Gate Valves are forged material made valves. They have excellent strength, wear and tear and higher mechanical properties. There are different types of valves in this carbon steel material based on the structure and functions.
Sluice Valve (Gate Valve) Description:
A Sluice Valve, commonly referred to as a Gate Valve, is an isolation valve used to start or stop the flow of fluid in a pipeline. It operates by raising or lowering a gate (wedge) inside the valve body to control fluid passage. When fully open, the gate is completely drawn up into the bonnet, allowing an unobstructed flow path with minimal pressure drop. When closed, the gate seats tightly against the body to ensure a leak-proof seal.
Key Features:
Type: Rising or Non-Rising Stem
Body Material: Cast Iron / Ductile Iron / Cast Steel / Stainless Steel
Pressure Rating: PN10 / PN16 / Class 150
End Connection: Flanged (as per IS 14846 / BS / ANSI standards)
Operation: Handwheel / Gearbox / Electric Actuator
Size Range: 50 mm to 1200 mm (or as required)
Applications:
Water supply and distribution systems
Sewage and wastewater treatment plants
Firefighting networks
Irrigation and industrial pipelines
Power plants and process industries
Advantages:
Provides full bore flow with minimal pressure loss
Reliable shut-off for long service life
Suitable for both above-ground and underground installations
Easy maintenance and operation
Additional Information:
Payment Terms : L/C, D/A, D/P, T/T, Western Union,

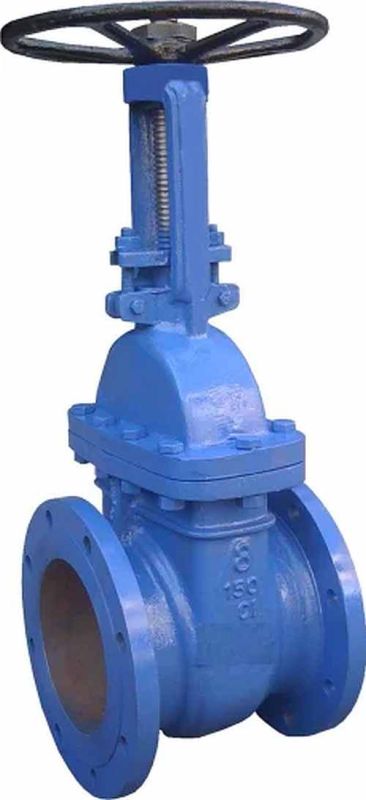

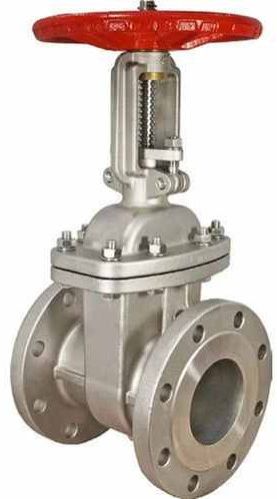

SN have a wide range of GATE VALVES in variety of types, sizes, pressure ratings and materials, with wafer type, screwed, welded or flanged connections. SN Manufacture Gate valves in every size ranging from the smallest to the largest size Gate Valve name is derived from the operation of the Gate valve.
The Valve Acts like a Gate to stop or allow the flow through the valve. The valve can be opened by lifting the wedge out of the path of the flow Gate valves are actually designed for closing & opening full , so they are not suitable for the Throttling purpose. When the Gate valve is fully open, there is no Obstruction in the Flow path, resulting in very low pressure drop, & they are often suitable for the Hot Tapping & Pigging.
Gate Valves are actually designed for use with the flow of liquids and Gases but there are variation to cope with the specific requirements.
SN have a wide range of GATE VALVES in variety of types, sizes, pressure ratings and materials, with wafer type, screwed, welded or flanged connections. SN Manufacture Gate valves in every size ranging from the smallest to the largest size Gate Valve name is derived from the operation of the Gate valve.
The Valve Acts like a Gate to stop or allow the flow through the valve. The valve can be opened by lifting the wedge out of the path of the flow Gate valves are actually designed for closing & opening full , so they are not suitable for the Throttling purpose. When the Gate valve is fully open, there is no Obstruction in the Flow path, resulting in very low pressure drop, & they are often suitable for the Hot Tapping & Pigging.
Gate Valves are actually designed for use with the flow of liquids and Gases but there are variation to cope with the specific requirements.

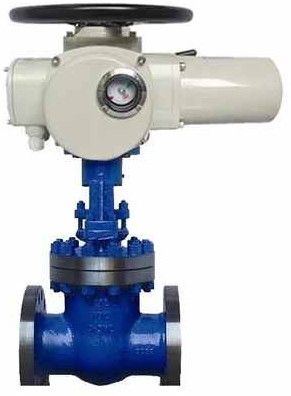

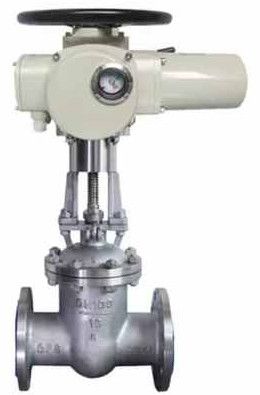

An Electric Actuator Motorized Gate Valve is an automated isolation valve designed to control the on/off flow of liquids, gases, and steam in industrial pipeline systems. It operates using an electric actuator that drives the gate up and down through a linear motion, providing remote operation, precise flow control, and reliable sealing. When fully opened, the valve offers a straight-through unobstructed path, resulting in minimal pressure loss and high flow efficiency.
Engineered for dependable performance in demanding environments, motorized gate valves are available in various body materials such as Cast Iron, Ductile Iron, Carbon Steel, and Stainless Steel, suitable for applications involving high pressure and temperature. They are widely used where automated and continuous system regulation is required.
Key FeaturesElectric actuator for remote and automated operation
Full-port design with low pressure drop
Tight shutoff for reliable isolation
Manual override and position indicator available
Compatible with on/off or modulating control
Available in rising and non-rising stem designs
Flanged, butt-weld, and socket-weld end connections
Suitable for horizontal or vertical installation
Water treatment and distribution systems
HVAC & building automation
Oil & gas pipelines
Chemical & petrochemical plants
Power generation & boiler systems
Process industries & fire-fighting networks

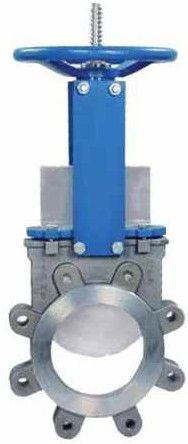

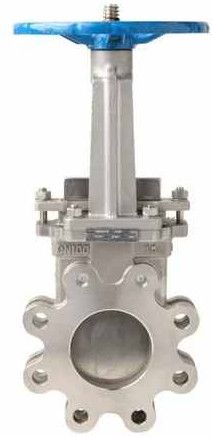

N-TROK” Brand Knife Edge Gate Valve is the specific design. This design ensures minimum contact between the parts of the valve, Reduces the Wear & Tear. The high performance Knife Gate Valves feature. Non Sliding Motion, Avoid Sliding Contact between Body & Gate allow flushing of media form the valve interior. A wide variety of hardened trim options are available on Gate, Seat and Wear Ring. Batten edge of the Gate (Knife-Edge) allows the tight shut off even when solid particles settles at the bottom of the Body.
Knife-Edge Gate Valves in Mining, Power, Steel, Chemical, Paper and withstand high Temperature & Abrasive Slurries in Industries Ideal for high-density Slurry Lines.
Knife Gate Valve are Unidirectional Valves, Excellent Hopper Isolation Valves with their ability to cut through flowing media and closed by dislodging any material in the seating area.
SN have a wide range of GATE VALVES in variety of types, sizes, pressure ratings and materials, with wafer type, screwed, welded or flanged connections. SN Manufacture Gate valves in every size ranging from the smallest to the largest size Gate Valve name is derived from the operation of the Gate valve.
The Valve Acts like a Gate to stop or allow the flow through the valve. The valve can be opened by lifting the wedge out of the path of the flow Gate valves are actually designed for closing & opening full , so they are not suitable for the Throttling purpose. When the Gate valve is fully open, there is no Obstruction in the Flow path, resulting in very low pressure drop, & they are often suitable for the Hot Tapping & Pigging.
Gate Valves are actually designed for use with the flow of liquids and Gases but there are variation to cope with the specific requirements.
Sluice Valve (Gate Valve) Description:
A Sluice Valve, commonly referred to as a Gate Valve, is an isolation valve used to start or stop the flow of fluid in a pipeline. It operates by raising or lowering a gate (wedge) inside the valve body to control fluid passage. When fully open, the gate is completely drawn up into the bonnet, allowing an unobstructed flow path with minimal pressure drop. When closed, the gate seats tightly against the body to ensure a leak-proof seal.
Key Features:
Type: Rising or Non-Rising Stem
Body Material: Cast Iron / Ductile Iron / Cast Steel / Stainless Steel
Pressure Rating: PN10 / PN16 / Class 150
End Connection: Flanged (as per IS 14846 / BS / ANSI standards)
Operation: Handwheel / Gearbox / Electric Actuator
Size Range: 50 mm to 1200 mm (or as required)
Applications:
Water supply and distribution systems
Sewage and wastewater treatment plants
Firefighting networks
Irrigation and industrial pipelines
Power plants and process industries
Advantages:
Provides full bore flow with minimal pressure loss
Reliable shut-off for long service life
Suitable for both above-ground and underground installations
Easy maintenance and operation
