Our Products

  1. Products 26 Products available

Our Products

We offer a complete product range of peristaltic pump hose, sae100r2at hydraulic rubber hose, SAE 100r14 Hydraulic PTFE Fuel Hose Line, Rubber Layflat Compressed Air Hose and Tpu Lay Flat Hose

Peristaltic Pump Hose

Peristaltic Pump Hose
₹ 91 - ₹ 9,100 / Meter Get Latest Price
  • Min. Order (MOQ) 1 Meter
  • Brand Name Biaohui
  • Color Black
  • Shape Round
  • Pressure 16bar
  • Usage The peristaltic pump hose is specially designed for peristaltic pump.

Peristaltic Pump Hoseis the par in a peristaltic pump. There the rotor with a number of rollers or shoes compresses the tubing and forces liquid to move. It is made from extremely flexible rubber (natural rubber, NBR, CSM, EPDM, silicone and others). While it resists compression, friction and chemical. They can be textile reinforced.

Construction:

Tube:Black and smooth rubber compound

Reinforce:Multiply of heavy duty cord

Cover:Black synthetic rubber; Wrapped

Application:

The peristaltic pump hose is specially designed for peristaltic pump. It is designed with long service life and min cost.

Characteristic:

Extremely durable; High abrasion, ozone & weather resistance.

The lowest possible friction between the hose and roller

Temperature:-40 to +100

Model Inner diameter of hose(mm) Outer diameter of hose(mm) Length of hose(mm) Material of hose
10 10 26 480
20 20 42 720 NR/NBR/EPDM/CSM/F-NR/F-NBR
25 25 49 900 NR/NBR/EPDM/CSM/F-NR/F-NBR
32 32 66 1080 NR/NBR/EPDM/CSM/F-NR/F-NBR
40 40 66 1240 NR/NBR/EPDM/CSM/F-NR/F-NBR
50 50 84 1595 NR/NBR/EPDM/CSM/F-NR/F-NBR
65 65 100 1840 NR/NBR/EPDM/CSM/F-NR/F-NBR
75 75 116 1870 NR/NBR/EPDM/CSM/F-NR/F-NBR
90 90 135 2970 NR/NBR/EPDM/CSM/F-NR/F-NBR
100 100 145 3230 NR/NBR/EPDM/CSM/F-NR/F-NBR
125 125 176 4075

NR/NBR/EPDM/CSM/F-NR/F-NBR
View Complete Details
Ask Latest Price & Details
Rubber Hydraulic Hose

Rubber Hydraulic Hose
₹ 91 - ₹ 3,640 / Meter Get Latest Price
  • Usage Industrial Use, Automobile Parts, Tractor Use, Fire Fighting
  • Pressure High
  • Color Black
  • Shape Round
  • Material Nitrile Rubber
  • Brand Name Biaohui







SAE 100 R1 ATEN 853 1SN//



-40C (-104 F) +100C (+212 F)

SAE 100 R1 AT
SAE
 ID
W.D
/
R1-05 5.0 3/16 03 4.6 5.4 8.9 10.1 12.5 21.0 3150 84.0 90 0.20
R1-06 6.3 1/4 04 6.2 7.0 10.6 11.7 14.1 19.2 2880 77.0 100 0.25
R1-08 8.0 5/16 05 7.7 8.5 12.1 13.3 15.7 17.5 2625 70.0 115 0.31
R1-10 10.0 3/8 06 9.3 10.1 14.5 15.7 18.1 15.7 2355 63.0 125 0.36
R1-13 12.5 1/2 08 12.3 13.5 17.5 19.0 21.5 14.0 2100 56.0 180 0.45
R1-16 16.0 5/8 10 15.5 16.7 20.6 22.2 24.7 10.5 1575 42.0 205 0.52
R1-19 19.0 3/4 12 18.6 19.8 24.6 26.2 28.6 8.7 1305 35.0 240 0.65
R1-25 25.0 1 16 25.0 26.4 32.5 34.1 36.6 7.0 1050 28.0 300 0.91
R1-32 31.5 1.1/4 20 31.4 33.0 39.3 41.7 44.8 4.3 645 17.5 420 1.30
R1-38 38.0 1.1/2 24 37.7 39.3 45.6 48.0 52.0 3.5 525 14.0 500 1.70
R1-51 51.0 2 50.4 52.0 58.7 61.7 65.9 2.6 390 10.5 630 2.00
EN 853 1SN
SAE
 ID
W.D
/
1SN-05 5.0 3/16 03 4.6 5.4 9.0 10.0 12.5 25.0 3750 100 90 0.20
1SN-06 6.3 1/4 04 6.2 7.0 10.6 11.6 14.1 22.5 3375 90 100 0.25
1SN-08 8.0 5/16 05 7.7 8.5 12.1 13.3 15.7 21.5 3225 85 115 0.31
1SN-10 10.0 3/8 06 9.3 10.1 14.5 15.7 18.1 18.0 2700 72 130 0.36
1SN-13 12.5 1/2 08 12.3 13.5 17.5 19.1 21.4 16.0 2400 64 180 0.45
1SN-16 16.0 5/8 10 15.5 16.7 20.6 22.2 24.5 13.0 1950 52 200 0.52
1SN-19 19.0 3/4 12 18.6 19.8 24.6 26.2 28.5 10.5 1575 240 0.65
1SN-25 25.0

Additional Information:

Payment Terms : T/T, Western Union

View Complete Details
Ask Latest Price & Details
sae100r2at Hydraulic Rubber Hose

Sae100r2at Hydraulic Rubber Hose
₹ 91 - ₹ 2,730 / Meter Get Latest Price
  • Min. Order (MOQ) 1 Meter
  • Brand Name Biaohui
  • Material Nitrile Rubber
  • Shape Round
  • Pressure High
  • Usage Industrial Use, Automobile Parts, Tractor Use, Fire Fighting

INNER TUBE:oil resistant synthetic nitrile rubberREINFORCEMENT:two layers of steel wire braidedCOVER:oil and weather resistant synthetic rubber

APPLICATION:High-pressure hydraulic lines. Meets or exceeds therequirements of SAE 100R2AT performance requirements of EN8532SN. For high pressure hydraulic systems in industry and agriculture.

SURFACE:wrapped surface, smooth surface

TEMPERATURE RANGE:40C (-104 F ) to 100C(+212 F)

SAE 100 R2 AT
Item Code Metric Size Inch Size SAE Dash size I.D REINFORCEMENTW.D O.D W.P B.P Min.bending radius Weight
(mm) (mm) (mm)
mm Inches Dash Min Max Min Max Max Mpa Psi Mpa mm Kg/m
R2-05 5.0 3/16" 03 4.6 5.4 10.6 11.7 14.1 35.0 5250 140.0 90 0.32
R2-06 6.3 1/4" 04 6.2 7.0 12.1 13.3 15.7 35.0 5250 140.0 100 0.36
R2-08 8.0 5/16" 05 7.7 8.5 13.7 14.9 17.3 29.7 4455 119.0 115 0.45
R2-10 10.0 3/8" 06 9.3 10.1 16.1 17.3 19.7 28.0 4200 112.0 125 0.54
R2-13 12.5 1/2" 08 12.3 13.5 19.0 20.6 23.1 24.5 3675 98.0 180 0.68
R2-16 16.0 5/8" 10 15.5 16.7 22.2 23.8 26.3 19.2 2880 77.0 205 0.80
R2-19 19.0 3/4" 12 18.6 19.8 26.2 27.8 30.2 15.7 2355 63.0 240 0.94
R2-25 25.0 1 16 25.0 26.4 34.1 35.7 38.9 14.0 2100 56.0 300 1.35
R2-32 31.5 1.1/4" 20 31.4 33.0 43.2 45.6 49.6 11.3 1695 45.5 420 2.15
R2-38 38.0 1.1/2" 24 37.7 39.3 49.6 52.0 56.0 8.7 1305 43.5 500 2.65
R2-51 51.0 2 30 50.4 52.0 62.3 64.7 68.6 7.8 1170 31.5 630 3.42
EN 853 2SN
Item Code Metric Size Inch Size SAE Dash size I.D REINFORCEMENTW.D O.D W.P B.P Min.bending radius Weight
(mm) (mm) (mm)
mm Inches Dash Min Max Min Max Max Mpa Psi Mpa mm Kg/m
2SN-05 5.0 3/16" 03 4.6 5.4 10.6 11.6 14.1 41.5 6225 165 90 0.32
2SN-06 6.3 1/4" 04 6.2 7.0 12.1 13.3 15.7 40.0 6000 160 100 0.36
2SN-08 8.0 5/16" 05 7.7 8.5 13.7 14.9 17.3 35.0 5250 140 115 0.45
2SN-10 10.0 3/8" 06 9.3 10.1 16.1 17.3 19.7 33.0 4950 132 130 0.54
2SN-13 12.5 1/2" 08 12.3 13.5 19.0 20.6 23.0 27.5 4125 110 180 0.68
2SN-16 16.0 5/8" 10 15.5 16.7 22.2 23.8 26.2 25.0 3750 100 200 0.80
2SN-19 19.0 3/4" 12 18.6 19.8 26.2 27.8 30.1 21.5 3225 85 240 0.94
2SN-25 25.0 1 16 25.0 26.4 34.1 35.7 38.9 16.5 2475 65 300 1.35
2SN-31 31.5 1.1/4" 20 31.4 33.0 43.3 45.6 49.5 12.5 1875 50 420 2.15
2SN-38 38.0 1.1/2" 24 37.7 39.3 49.6 52.0 55.9 9.0 1350 36 500 2.65
2SN-51 51.0 2 30 50.4 52.0 62.3 64.7 68.6 8.0 1200 32 630 3.42

Additional Information:

Payment Terms : T/T, Western Union

View Complete Details
Ask Latest Price & Details
High Pressure SAE 100 r3 Hydraulic Pipe Hose

High Pressure SAE 100 R3 Hydraulic Pipe Hose
  • Brand Name Biaohui
  • Material Nitrile Rubber
  • Shape Round
  • Color Black
  • Pressure High
  • Usage Industrial Use, Automobile Parts, Tractor Use

construction:inner tube:oil resistant synthetic nitrile rubberreinforcement:two layers of high strength fiber braidedcover:oil and weather resistant synthetic rubber

application:petroleum base and water base hydraulic fluids

surface:wrapped surface, smooth surface

temperature range:-40c (-104 f ) to +100c(+212 f)

item code metric size inch size sae dash size i.d o.d max w.p min b.p min b.r w.t
standard(mm) standard(mm)
mm inches dash min max min max mpa psi mpa mm kg/m
r3-05 5 3/16 03 4.5 5.4 11.9 13.5 10.5 1520 42 75 0.16
r3-06 6.3 1/4 04 6.1 7 13.5 15.1 8.7 1260 34.8 75 0.19
r3-08 8 5/16 05 7.6 8.5 16.7 18.3 8.4 1220 33.6 100 0.25
r3-10 10 3/8 06 9.2 10.1 18.3 19.8 7.8 1130 31.2 100 0.29
r3-12 12.5 1/2 08 12.4 13.5 23 24.6 7 1020 28 125 0.41
r3-16 16 5/8 10 15.6 16.7 26.2 27.8 6.1 880 24.4 140 0.49
r3-19 19 3/4 12 18.7 19.8 31 32.5 5.2 750 20.8 150 0.66
r3-25 25 1 16 25.1 26.2 36.9 39.3 3.9 570 15.6 205 0.81
r3-32 31.8 1-1/4 20 31.4 32.9 42.9 46 2.6 380 10.4 250 0.97

Additional Information:

Payment Terms : T/T, Western Union

View Complete Details
Ask Latest Price & Details
Hydraulics Flexible Stainless Steel Braided Hose

Hydraulics Flexible Stainless Steel Braided Hose
₹ 91 / 50 Meter Get Latest Price
  • Min. Order (MOQ) 1 Meter
  • Model NO. R14
  • Product Name SAE 100r14 Hydraulic Hose
  • Tube 100% PTFE Resin
  • Cover AISI 304 or 316 Stainless Steel Wire Outer Braid

Construction:Tube:100% PTFE resinCover:single or double AISI 304 or 316 stainless steel wire outer braid

APPLICATION:Design being used in automotive, fluid handling, chemical transfer, paint, pharmaceutical, food & beverage processing, cosmetics and general-purpose applications.

Item code Size I.D O.D Wall Thickness W.P B.P Minimum Bending Radius
inch mm inch mm inch mm psi bar psi bar mm
SR14-35 1/8" 3.5 0.138 6.6 0.26 1 4733 326 14613 1007.76 51
SR14-48 3/16" 4.8 0.189 8 0.315 0.85 3579 247 10738 740.52 75
SR14-64 1/4" 6.4 0.252 9.2 0.362 0.85 3106 214.2 9658 666.06 81
SR14-80 5/16" 8 0.315 11 0.433 0.85 2781 191.76 8682 598.74 92
SR14-97 3/8" 9.7 0.382 12.8 0.504 0.85 2736 188.7 8223 567.12 131
SR14-127 1/2" 12.7 0.5 15.9 0.626 1 1568 108.12 6818 470.22 182
SR14-160 5/8" 16 0.63 19.2 0.756 1 1878 129.54 5650 389.64 211
SR14-190 3/4" 19 0.748 22.7 0.894 1.2 1154 79.56 3979 274.38 338
SR14-222 7/8" 22.2 0.874 26 1.024 1.2 887 61.2 2884 198.9 421
SR14-250 1" 25 0.984 29.3 0.154 1.5 592 40.8 2263 156.06 539
SR14-500 2" 50 1.969 55.6 2.189 2 444 30.6 1775 122.4 1015



Inner Convoluted Hose

Construction:Tube:100% PTFE resinCover:single or double AISI 304 or 316 stainless steel wire outer braid

APPLICATION:It features excellent flexibility and kink resistance for superior performance in chemicaltransfer, high temperature hydraulics, and hose applications requiring tight routings, hightemperature media transfer and general-purpose applications.

Item code Size I.D O.D Wall Thickness W.P B.P Minimum Bending Radius
inch mm inch mm inch mm psi bar psi bar mm
CR14-065 1/4" 6.5 0.256 11.5 0.453 0.8 1923 133 5546 382.5 20
CR14-08 5/16" 8 0.315 12.3 0.484 0.65 1923 132.6 5324 367.2 25
CR14-10 3/8" 10 0.394 14.2 0.559 0.65 1849 127.5 5177 357 33
CR14-13 1/2" 13 0.512 17.2 0.677 0.85 1627 112.2 4881 336.6 42
CR14-16 5/8" 16 0.63 21.6 0.85 0.9 1183 81.6 3560 244.8 60
CR14-19 3/4" 19 0.748 25.3 0.996 1 1036 71.4 3108 214.2 63
CR14-25 1" 25 0.984 31 1.22 1 740 51 2219 153 79
CR14-32 1-1/4" 32 1.26 39 1.535 1.1 710 48.96 2071 142.8 125
CR14-38 1-1/2" 38 1.496 45 1.772 1.45 636 43.86 1775 122.4 145
CR14-50 2" 50 1.969 60 2.362 1.5 503 34.68 1479 102 180
View Complete Details
Ask Latest Price & Details
SAE 100r14 Hydraulic PTFE Fuel Hose Line

SAE 100r14 Hydraulic PTFE Fuel Hose Line
₹ 455 - ₹ 9,100 / meter Get Latest Price
  • Brand Name Biaohui
  • Material Stainless Steel
  • Shape Round
  • Pressure Medium
  • Usage Industrial Use, Automobile Parts, Fire Fighting

Additional Information:

Payment Terms : T/T, Western Union

View Complete Details
Ask Latest Price & Details
Carbon-Free Rubber Hoses for Furnace Door Coolant Water

Carbon-Free Rubber Hoses For Furnace Door Coolant Water
₹ 1,820 / meter Get Latest Price
  • Material Rubber
  • Color Green
  • Condition New
  • Application Water Delivery
  • Size 4inch, 2inch, 1inch
  • Feature Crack Proof, Corrosion Proof
  • Type Rubber Water Hose
Specifications

Carbon-free hose structure:The carbon-free water-cooled cable jacket rubber hose is composed of an inner rubber layer, a fabric reinforcement layer and an outer rubber layer. In addition, a heat insulation and fireproof layer can be added as required.
Carbon-free hose features:suitable for large cross-section flexible water-cooled cable jacket rubber hoses for steel-making furnaces used at working temperature of -80C+120C or not exceeding 150C. The pressure is 5-20 kg, the insulation is 4000-20000 volts, and it is used in intermediate frequency furnace and high frequency furnace factory.
The color, sizes, thickness, pressure and length all can be customized.

Additional Information:

Payment Terms : T/T, Western Union

View Complete Details
Ask Latest Price & Details

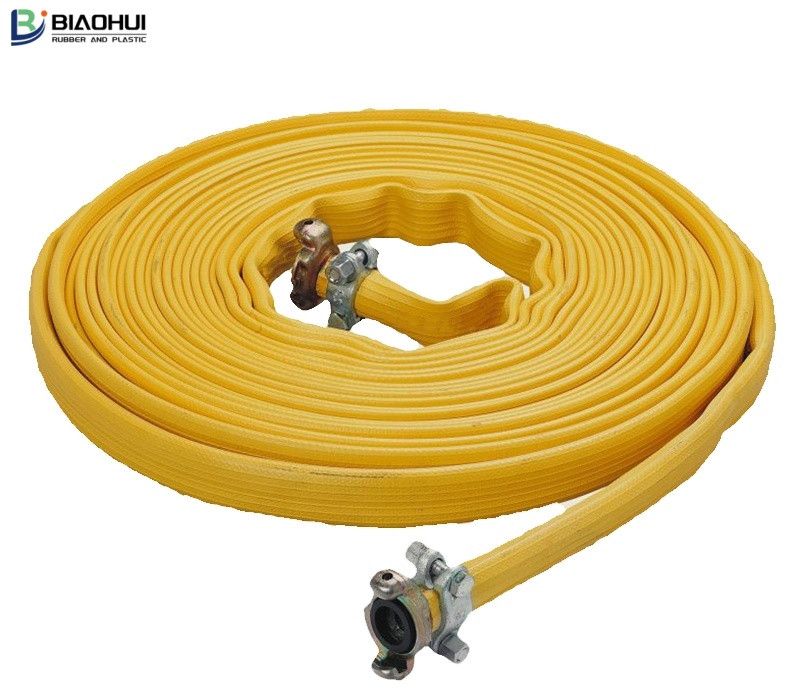

Rubber Layflat Compressed Air Hose

Rubber Layflat Compressed Air Hose
₹ 4,550 / meter Get Latest Price
  • Country of Origin India
  • Specialities Scratch Proof, Perfect Finish, Easy To Use
  • Finishing Coated
  • Brand Name Biaohui
  • Material Rubber
  • Shape Round
  • Color Yellow
  • Pressure Medium
  • Usage Industrial Use

Layflat compressed air hose is designed for air compressors, pneumatic tools, Rock drill, automated air line, air supply, construction equipment and so on.

Outer coat:synthetic rubberMiddle:polyester fibre woven jacketInner lining:synthetic rubberColor:red black yellowProperty:waterproof, quick drying, abrasion resistance, sea water, corrosion resistanceApplied range:fire fighting, shipping, mining, water transmission

Item Code L W.P B.P L
inch mm bar psi bar psi ft
019 3/4 19.1 27 400 81 1200 100/200
025 1 25.4 27 400 81 1200 100/200
038 1 1/2 38.1 20 300 60 900 100/200
051 2 50.8 14 200 42 600 100/200
076 3 76.2 14 200 42 600 100/200
102 4 101.6 14 200 42 600 100/200
152 6 152.4 14 200 42 600 100/200
View Complete Details
Ask Latest Price & Details

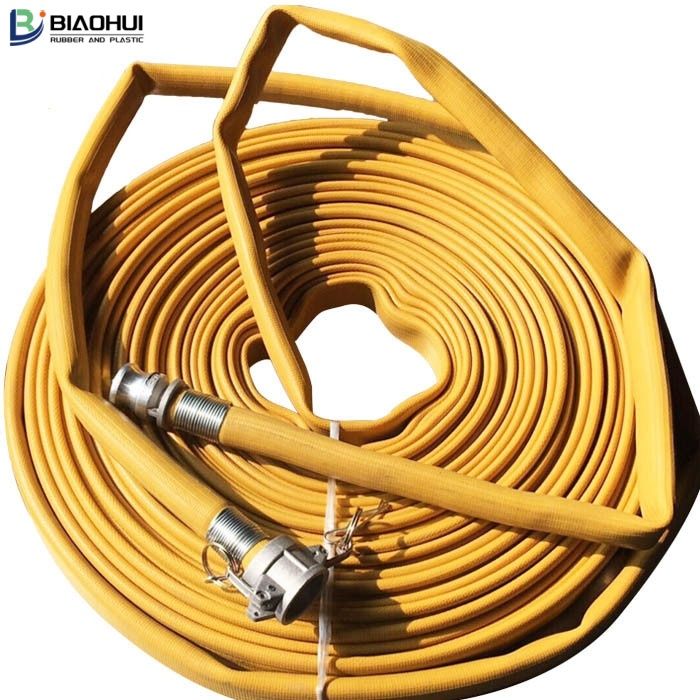

Rubber Layflat Air Hose

Rubber Layflat Air Hose
₹ 4,550 / meter Get Latest Price
  • Brand Name Biaohui
  • Material Rubber
  • Finishing Coated
  • Shape Round
  • Color Yellow
  • Pressure Medium
  • Usage Air Compressors, Pneumatic Tools, Rock Drill, Automated Air Line, Air Supply

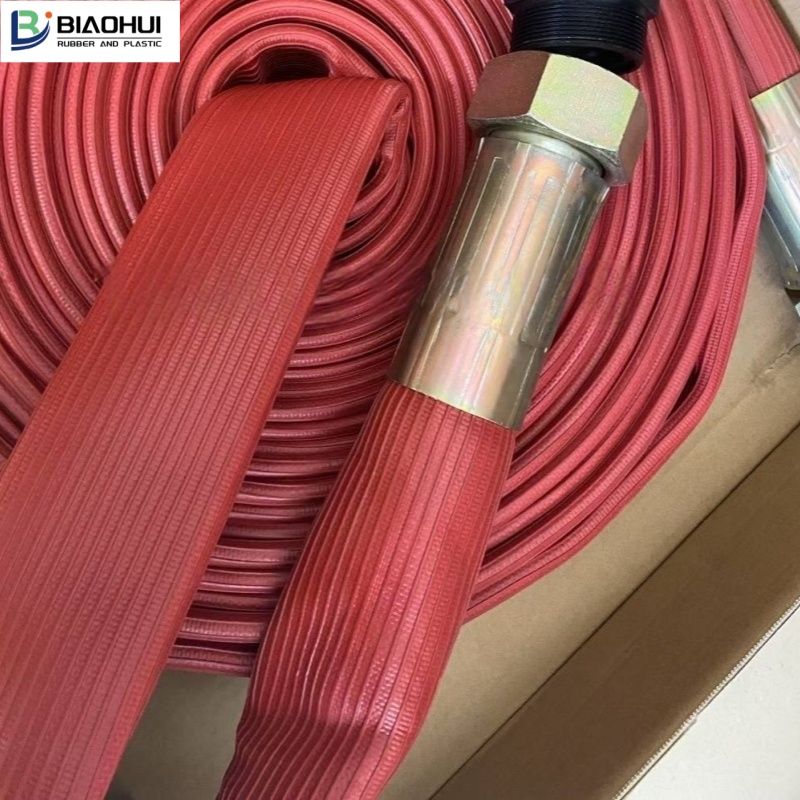

The layflat air hose plus is designed for delivery higher working pressures compressed air. It is made of nitrile rubber reinforced with double jackets that can operate under the highest operating pressures. It is a flexible and lightweight hose so that can be easy storaged and transported easily.

Construction
Cover and liner: High quality nitrile rubber
Reinforcement: High tenacity double jacket synthetic yarn
Technical Parameters
Color: Black, red, yellow or as required
Size: DN38(1.5 inch), DN51(2 inch)
Length: 20m(66ft), 30m (100ft)or as required
Temperature: -30C+100C(-22F to 212F )
Features
High pressure, Light weight, flexibility, durability, abrasion resistant, kinking, twisting, ensuring a long lifespan and reliable performance and etc.
Application
Air compressors, pneumatic tools, rock drill, automated air line, air supply
Specifition
SizeWorking PressureBurst PressureWall ThicknessLength
Inch mm Bar Psi Bar Psi mm m/ft
1 1/2 38 60 870 180 2610 6.5 20m(66ft), 30m (100ft)
2 51 60 870 180 2610 6.5
View Complete Details
Ask Latest Price & Details

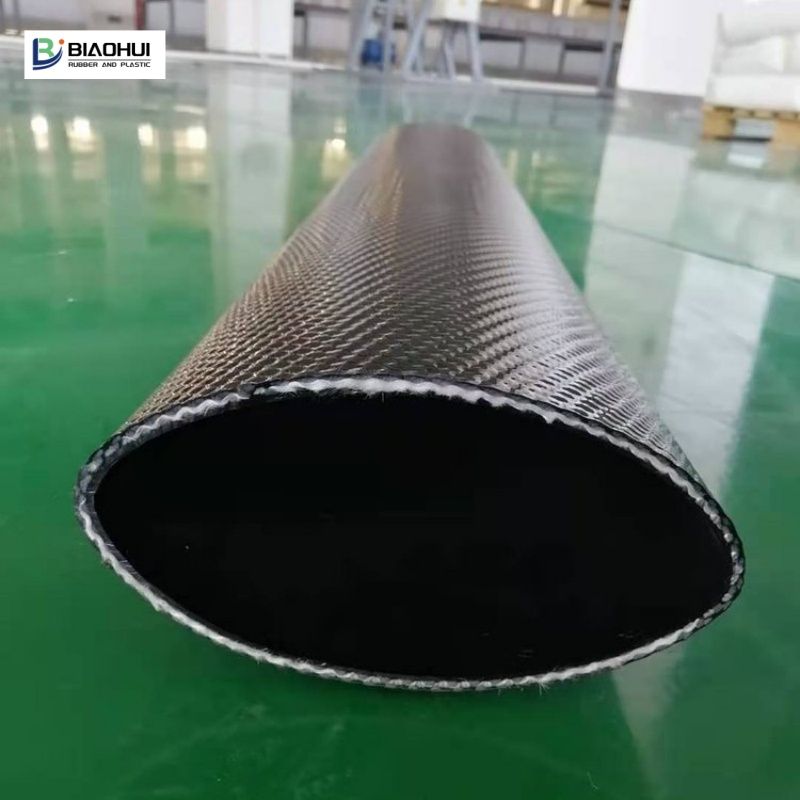

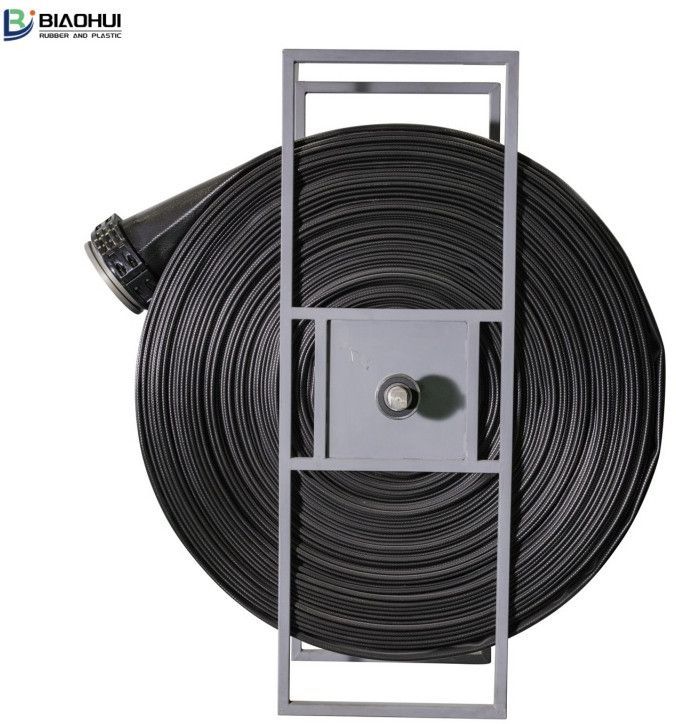

TPU Lay Flat Hose

TPU Lay Flat Hose
₹ 9,100 / Meter Get Latest Price
  • Usage Industrial Use, Long-distance Water Supply In Fire Fighting, Emergency Water Removal During Floods, Industrial Large
  • Pressure Medium
  • Color Black
  • Shape Round
  • Finishing Coated
  • Material TPU
  • Brand Name Biaohui
  • Certification ISO 9001:2008
  • Specialities Perfect Finish, Easy To Use

TPU layflat hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose. The jacket insidethe hose shall be made from high tensile synthetic polyester filament yarn, with circular woven method, it will totally be embedded in the PU compound, the covered PU will protectitagainst mechanical damage, forming a single homogeneousconstruction withoutany glues or adhesives of any typebetween them.

Thermoplastic polyurethane (TPU) is extruded through the weave in a unique one step production process. This process combined with UV protection additivesand ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasionapplications in the mining and water transfer/fracking applications.

Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn
Technical Parameters
Color: Black or as required
Size: 16 inch(DN400)
Length: 200m(660ft) or as required
Temperature: -50C+80C(-60F to 176F )
Features
High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life
Application

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Specifition

ID Tolerance Wall Thickness ServicePressure MinimumBurst Pressure Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6 152 154-157 0.126 3.20 150 450 1.27 1.90
6 152 154-157 0.149 3.80 250 750 1.41 2.10
6 152 154-157 0.165 4.20 300 900 1.68 2.50
6 152 154-157 0.228 5.80 410 1230 2.28 3.40
6 152 154-157 0.216 5.50 610 1830 2.14 3.20
8 204 204-207 0.149 3.80 200 600 1.94 2.90
8 204 204-207 0.157 4.00 250 750 2.28 3.40
8 204 204-207 0.165 4.20 300 900 2.35 3.50
8 204 204-207 0.165 4.20 410 1230 2.68 4.00
10 254 256-259 0.165 4.20 200 600 2.68 4.00
10 254 256-259 0.177 4.50 250 750 3.02 4.50
10 254 256-259 0.197 5.00 300 900 3.69 5.50
12 306 306-311 0.165 4.20 150 450 2.81 4.20
12 306 306-311 0.197 5.00 200 600 3.48 5.20
14 356 356-360 0.189 4.80 150 450 4.36 6.50
16 406 406-410 0.197 5.00 100 300 4.56 6.80
16 406 406-410 0.212 5.40 150 450 5.23 7.80

Sizeworking pressure and wall thickness can be customized as required

Additional Information:

Payment Terms : T/T

View Complete Details
Ask Latest Price & Details
Thermoplastic Polyurethane Layflat Hose

Thermoplastic Polyurethane Layflat Hose
  • Brand Name Biaohui
  • Material Tpu
  • Color Black, Blue, Red, Yellow
  • Certification Iso Certified
  • Condition New
  • Application Industrial Use, Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing
  • Size Standard

Additional Information:

Payment Terms : T/T

View Complete Details
Ask Latest Price & Details
TPU Layflat Fracturing & Oilfield Hose

TPU Layflat Fracturing & Oilfield Hose
₹ 4,550 - ₹ 27,300 / Meter Get Latest Price
  • Brand Name Biaohui
  • Material Tpu
  • Color Blue, Red, Yellow
  • Certification Iso Certified
  • Condition New
  • Application Industrial Use, Long-distance water supply in fire fighting, emergency water removal during floods, industrial large
  • Size Standard
  • Pakaging Size 20-30kg

Additional Information:

Payment Terms : T/T

View Complete Details
Ask Latest Price & Details

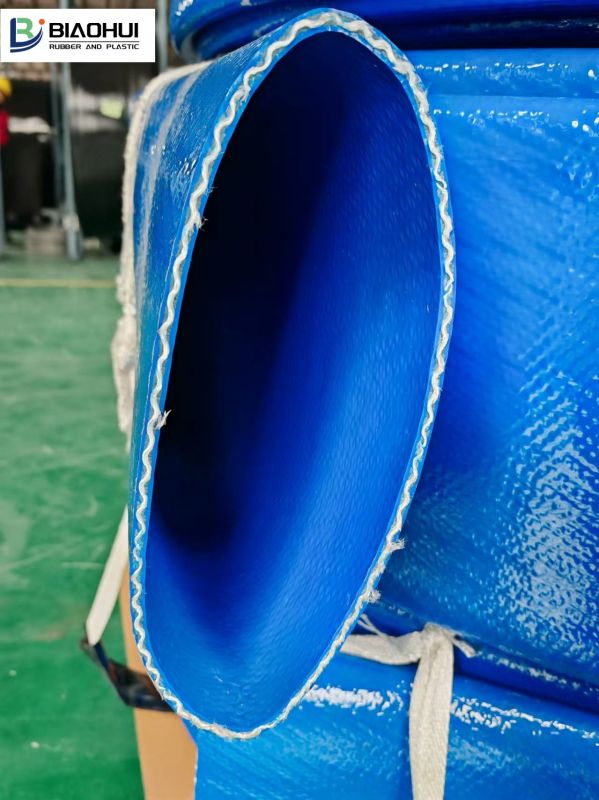

TPU Layflat Water Supply Hose

TPU Layflat Water Supply Hose
₹ 4,550 / 300 meter Get Latest Price
  • Material Tpu
  • Color Black, Blue, Red, Yellow
  • Certification Iso Certified
  • Condition New
  • Application Industrial Use, Long-distance water supply in fire fighting, emergency water removal during floods, industrial large
  • Size Standard
  • Pakaging Size 20-30kg

TPU layflat hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose. The jacket insidethe hose shall be made from high tensile synthetic polyester filament yarn, with circular woven method, it will totally be embedded in the PU compound, the covered PU will protectitagainst mechanical damage, forming a single homogeneousconstruction withoutany glues or adhesives of any typebetween them.

Thermoplastic polyurethane (TPU) is extruded through the weave in a unique one step production process. This process combined with UV protection additivesand ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasionapplications in the mining and water transfer/fracking applications.

Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn
Technical Parameters
Color: Black or as required
Size: 16 inch(DN400)
Length: 200m(660ft) or as required
Temperature: -50C+80C(-60F to 176F )
Features
High pressure, abrasion resistant, extremely tough, oil and chemicals resistance, fast deployment and retrieval, excellent flow rates, long service life
Application

Long-distance water supply in fire fighting, emergency water removal during floods, industrial large volume water discharge, irrigation supply and frac solution

Specifition

ID Tolerance Wall Thickness ServicePressure MinimumBurst Pressure Weight
inch mm mm inch mm psi psi lbs/ft kg/m
2 51 51.0-53.0 0.071 1.80 250 750 0.28 0.42
2 51 51.0-53.0 0.138 3.50 410 1230 0.47 0.70
3 76 76.0-78.0 0.118 3.00 250 750 0.60 0.90
3 76 76.0-78.0 0.126 3.20 410 1230 0.70 1.05
4 102 102-104.5 0.110 2.80 200 600 0.72 1.08
4 102 102-104.5 0.138 3.50 250 750 0.87 1.30
4 102 102-104.5 0.142 3.60 300 900 0.94 1.40
4 102 102-104.5 0.189 4.80 610 1830 1.27 1.90
5 125 125-127.5 0.142 3.60 150 450 1.21 1.80
6 152 154-157 0.126 3.20 150 450 1.27 1.90
6 152 154-157 0.149 3.80 250 750 1.41 2.10
6 152 154-157 0.165 4.20 300 900 1.68 2.50
6 152 154-157 0.228 5.80 410 1230 2.28 3.40
6 152 154-157 0.216 5.50 610 1830 2.14 3.20
8 204 204-207 0.149 3.80 200 600 1.94 2.90
8 204 204-207 0.157 4.00 250 750 2.28 3.40
8 204 204-207 0.165 4.20 300 900 2.35 3.50
8 204 204-207 0.165 4.20 410 1230 2.68 4.00
10 254 256-259 0.165 4.20 200 600 2.68 4.00
10 254 256-259 0.177 4.50 250 750 3.02 4.50
10 254 256-259 0.197 5.00 300 900 3.69 5.50
12 306 306-311 0.165 4.20 150 450 2.81 4.20
12 306 306-311 0.197 5.00 200 600 3.48 5.20
14 356 356-360 0.189 4.80 150 450 4.36 6.50
16 406 406-410 0.197 5.00 100 300 4.56 6.80
16 406 406-410 0.212 5.40 150 450 5.23 7.80

Sizeworking pressure and wall thickness can be customized as required

Additional Information:

Payment Terms : T/T

View Complete Details
Ask Latest Price & Details
TPU Fuel Transfer Hose

TPU Fuel Transfer Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Brand Name Biaohui
  • Material Thermoplastic, Tpu
  • Color green
  • Application Industrial Use
  • Size Standard
  • Condition New
  • Certification Iso Certified
  • Pakaging Size 20-30kg
TPU Fuel Transfer Hose is a super heavy-duty through-the-weave polyurethane (PU) covered hose. The jacket inside the hose shall be made from high tensile synthetic polyester filament yarn, with circular woven method, it will totally be embedded in the PU compound, the covered PU will protect it against mechanical damage, forming a single homogeneous construction without any glues or adhesives of any type between them.Thermoplastic polyurethane (TPU) is extruded through the weave in a unique one step production process. This process combined with UV protection additives and ageing-resistant in the compounds makes this transfer hose ideally suited for high abrasion applications in the mining and water transfer/fracking applications.Construction
Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50C+80C(-60F to 176F )
Features
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing
Specifition
SizeWorking PressureBurst PressureWall ThicknessLength
Inch mm Bar Psi Bar Psi mm m/ft
2 51+1.5 17 250 51 750 2.7 200/660
3 77+2.0 17 250 51 750 3
4 103+2.0 17 250 51 750 3.2
6 154+2.5 17 250 51 750 4.2
8 204+3.0 15 215 45 645 4.5

Size, working pressure and wall thickness can be customized as required

Additional Information:

Payment Terms : T/T

View Complete Details
Ask Latest Price & Details

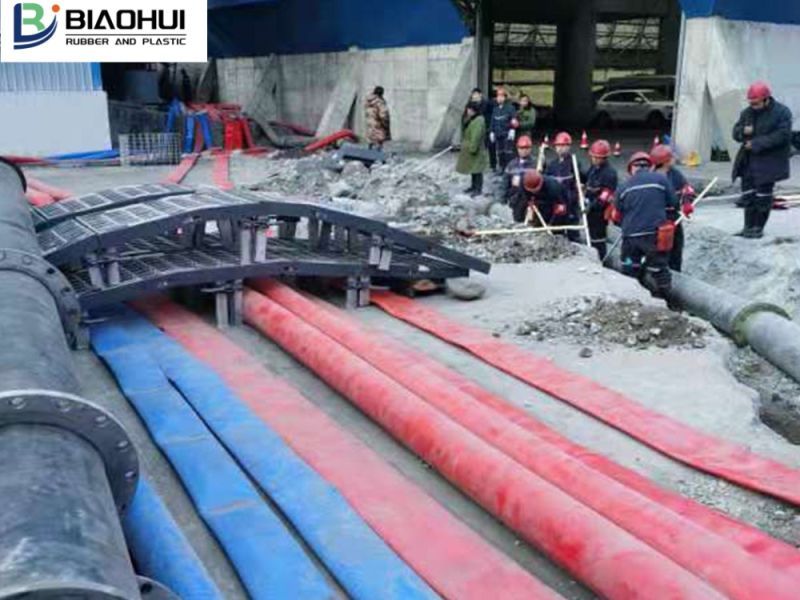

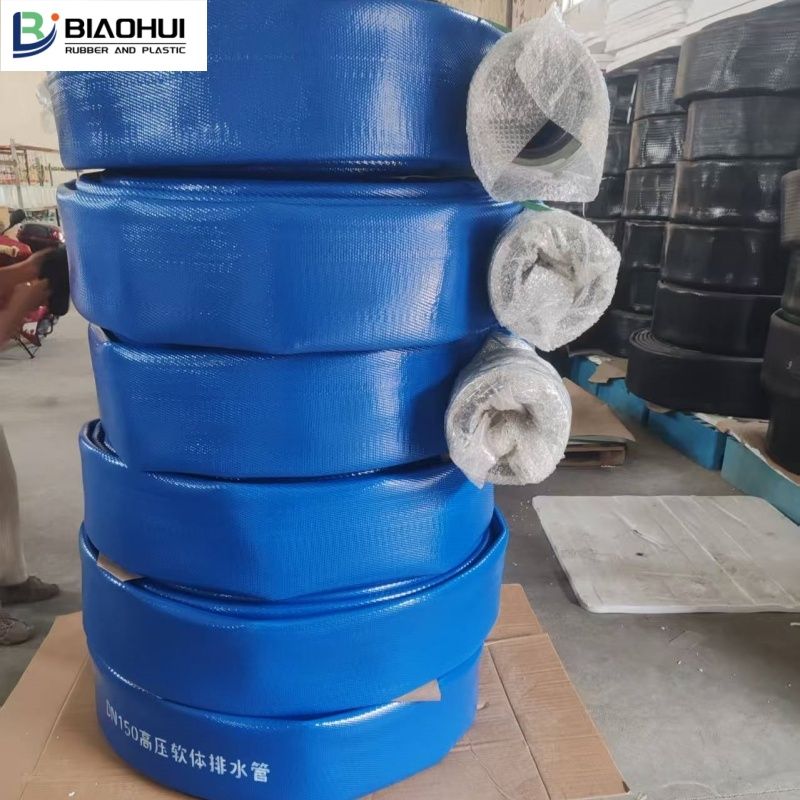

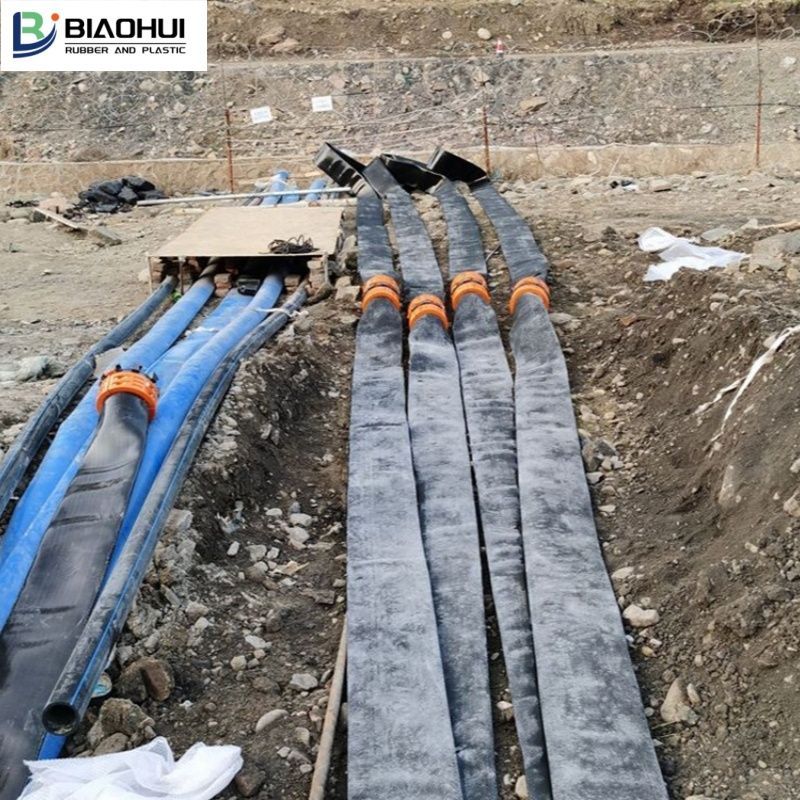

Mining Dewatering TPU Layflat Hose

Mining Dewatering TPU Layflat Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Brand Name Biaohui
  • Material Thermoplastic, Tpu
  • Color Blue
  • Certification Iso Certified
  • Condition New
  • Application Industrial Use
  • Size Standard
  • Pakaging Size 20-30kg
Layflat Hose

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details
TPU Mining Dewatering Hose

TPU Mining Dewatering Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Brand Name Biaohui
  • Material Rubber
  • Shape Round
  • Color Black
  • Pressure Medium

Fracflo Hose Plus
Cover and Lining: TPU (Extrusion through-the-weave)
Reinforcement Jacket: 100% high tenacity Polyester Filament.
Temperature range:-50Cto 80C(-58Fto +178F)
Available length: 100m (330ft), 200m (660ft), 300m (990ft), 400m (1320ft)

Nipple and Clamp:
Nipple--->316 Stainless Steel
Clamp---->Ductile Iron
Gasket--->Viton Rubber
Hose Technical Specification:

I.D. Wall Thickness Service Pressure Minimum Burst Pressure Weight
inch Approx. inch psi psi Approx. Lbs/ft
4" 0.138 250 750 0.94
6" 0.150 250 750 1.41
8" 0.177 300 900 2.28
10" 0.197 300 900 3.75
12" 0.228 200 600 4.3
14" 0.205 150 450 4.96

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details
16 Inch TPU Layflat Hose

16 Inch TPU Layflat Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Certification Iso Certified
  • Color Black, Blue, Red, Yellow
  • Material Thermoplastic, Tpu
  • Brand Name Biaohui
  • Usage Industrial Use
  • Size (Inches) Standard
  • Condition New
  • Pakaging Size 20-30kg
16 Inch

Construction
Cover and liner: High quality TPU
Reinforcement: High tenacity synthetic yarn(With copper wires available inside to be anti-static)
Technical Parameters
Color: green or as required
Size: 2 inch-8 inch
Length: 200m(660ft) or as required
Temperature: -50°C+80°C(-60°F to 176°F )
Features
Antistatic, high pressure, oil and chemicals resistance, UV resistance, safe and easy Iinstallation, long service time
Application
Temporary oil and fuel transfer, army and ship fuel(oil) supply, hydraulic fracturing

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details
TPU Heavy Duty Lay Flat Hose

TPU Heavy Duty Lay Flat Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Size (Inches) 10 Inch, 50-500mm
  • Country of Origin India
  • Specialities Scratch Proof, Easy To Use
  • Usage Widely Used In Petroleum.chemical, Shipping, Agriculture, Water Conservancy, Mine Rescue And Firetightin
  • Pressure 16bar
  • Color Black Red
  • Shape Round
  • Finishing Coated
  • Material TPU
  • Brand Name Biaohui

TPU
100%
-50 ºC  80 ºC   -58 ºF  +178 ºF
100m330200m660300m990400m1320


--->316
---->
--->

ID
/ / /
4 0.138 ≥ 250 ≥750 0.94
6 0.150 ≥ 250 ≥750 1.41
8 0.177 ≥ 300 ≥900 2.28
10 0.197 ≥ 300 ≥900 3.75
12 0.228 ≥200 ≥ 600 4.3
14 0.205 ≥150 ≥450 4.96
16 0.205 ≥150 ≥450 5.1

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

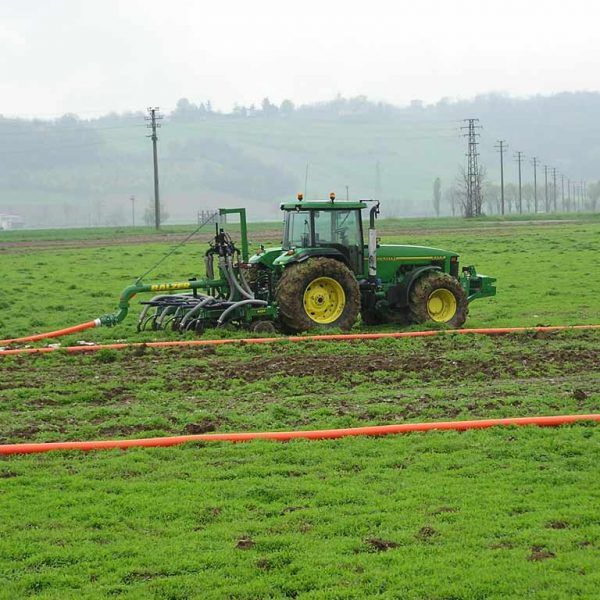

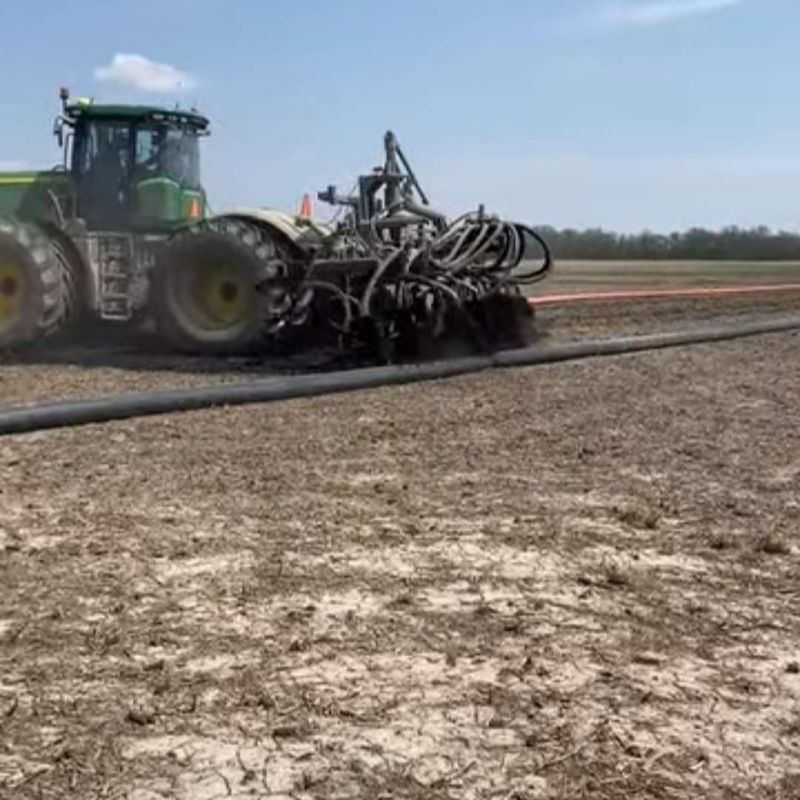

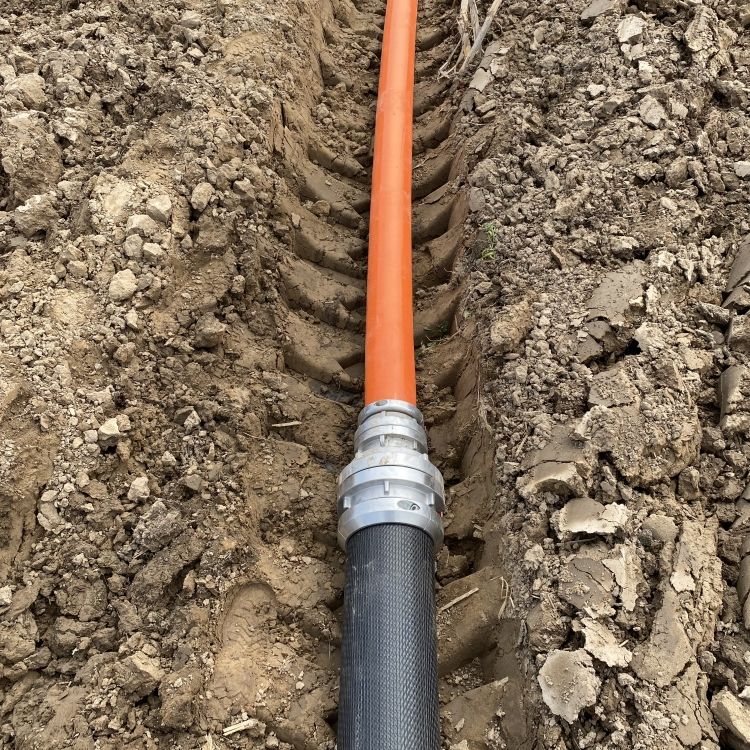

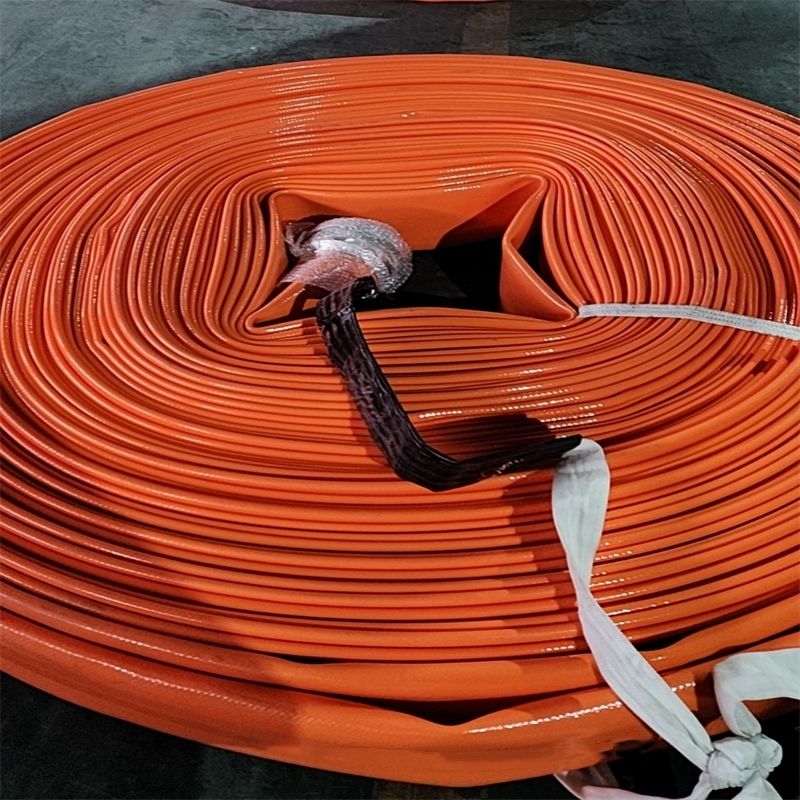

TPU Drag Hose

TPU Drag Hose
₹ 4,550 - ₹ 27,300 / meter Get Latest Price
  • Usage Tractor Use, TPU Drag Hose Is Designed For Distribution Of Slurry And Manure And Fertilizer, Delivery Of Water In
  • Color Orange
  • Shape Round
  • Material TPU
  • Brand Name Biaohui

Drag hose is a thermoplastic polyurethane lay-flat hose used to transfer sludge, slurries and liquid manure in agricultural irrigation field continuously. It is designed to endure high tensile strength and high abrasion when dragged. It has the advantages of flexibility, abrasion resistance, great adhesion, high tensile strength, UV, oil and chemical resistance. It has a long lifetime and low maintenance on rougher surfaces.

Agriculture manure drage hose is made from thermoplastic polyurethane and reinforced with high strength circular woven polyester or polyamide.

Drag Hose Structure

Tube & Cover: Thermoplastic polyurethane(TPU)

Reinforcement: High strength circular woven polyester or polyamide

Temperature: -50 to +80 (-58 to +176)

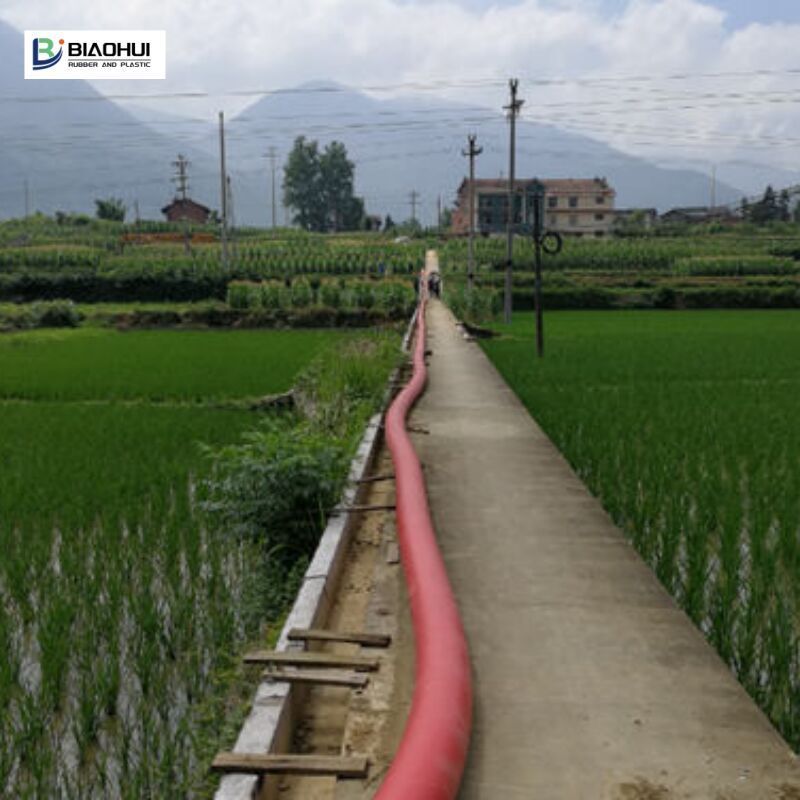

Application: TPU drag hose is designed for distribution of slurry and manure and fertilizer, delivery of water in self propelled machinesfor irrigation

TPU Drag Hose is designed for the latest environmentally friendly umbilical drag systems. It’s used for distribution of slurry, manure and fertilizer in agriculture. The hose is connected between slurry reservoirs (lagoons) and tow tractors in the field to be fertilized.

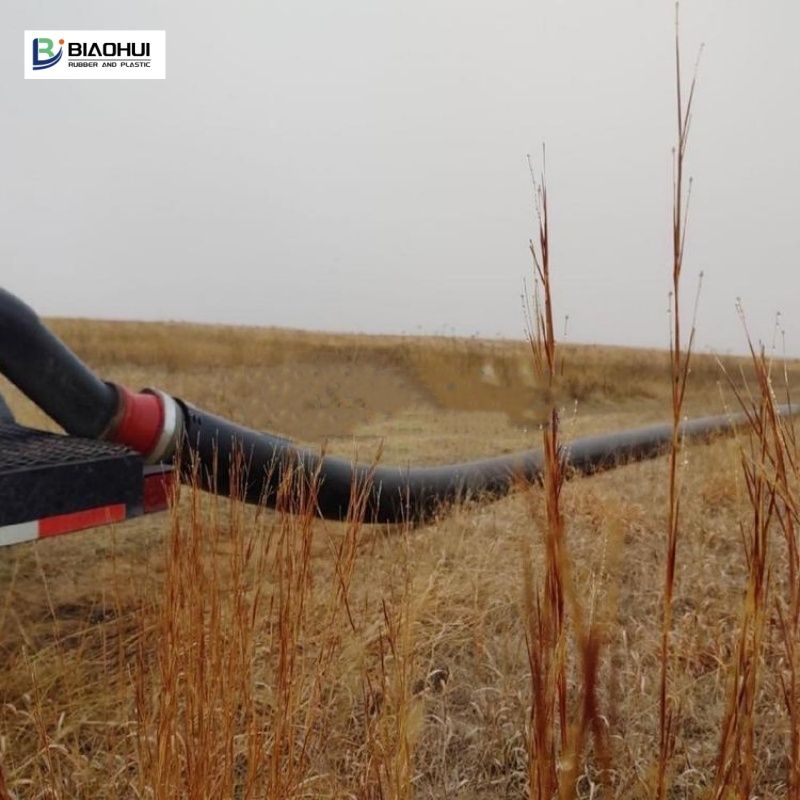

The tow tractor pulls the drag hose behind it while the hose feeds the injection tool bar that deposits the manure in the plowed furrows. The abrasion resistance of TPU cover is 4 – 5 times that of commonly used rubber. The tensile strength has been substansially increased to withstand the pull forces.

TPU Drag Hose Features

  • Flexible in all weather conditions from -50 to +80
  • Acid, alkali and corrosion resistant
  • Extra abrasion and oil resistant
  • Low coil volume for easy handling
  • Cold and small flow resistant
  • Germany type Storz, American Bolt on style, Victaulic coupling. Camlock is optional according to the requirement.

TPU Drag Hose Advantages

  • Standard color black, other colors on request
  • Individual marking available
  • Binding with international couplings available on request
  • Other diameters on request
  • Standard lengths 100m and 200m

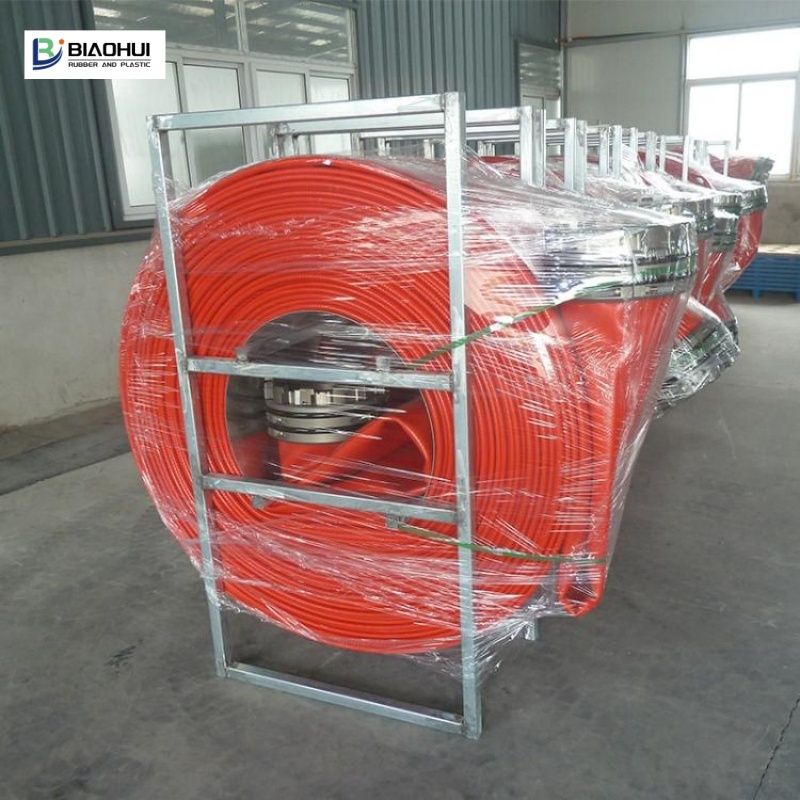

TPU Drag Hose Packing

Generally the packing would be pallet or steel hose holder. Customized packing is also available.

TPU Drag Hose Specification

ID Tolerance Wall Thickness Service Pressure Minimum Burst Pressure Weight Tensile Strength
inch mm mm inch mm bar/psi bar/psi kg/m lbs/ft kgs lbs
4″ 102 +2.50 0.16 4.20 13/200 39/600 1.60 1.07 16500 36500
5″ 127 +3.00 0.17 4.30 12/160 36/480 2.00 1.34 19500 43000
5-1/2″ 140 +3.00 0.17 4.30 10/150 30/450 2.40 1.61 21000 47500
6″ 154 +3.00 0.18 4.50 10/150 30/450 2.80 1.88 25000 55500
7″ 178 +3.00 0.18 4.50 10/150 30/450 3.20 2.14 31000 68000

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

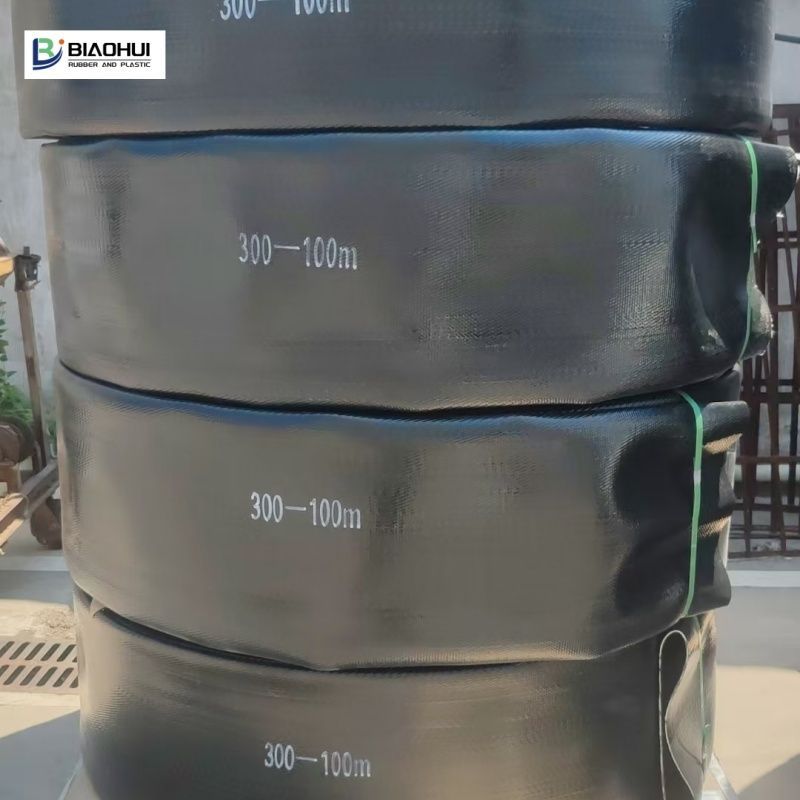

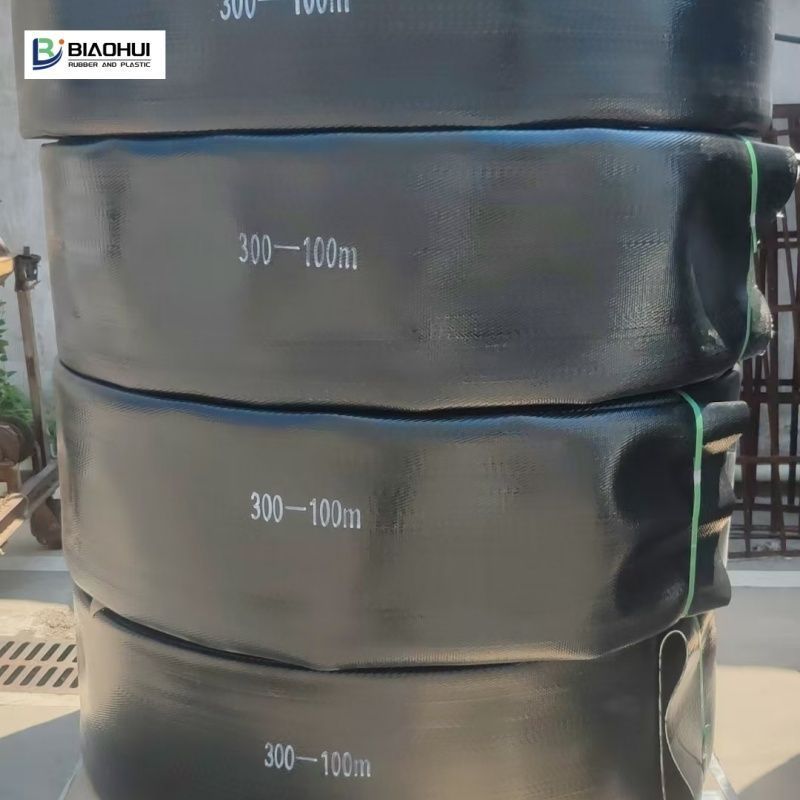

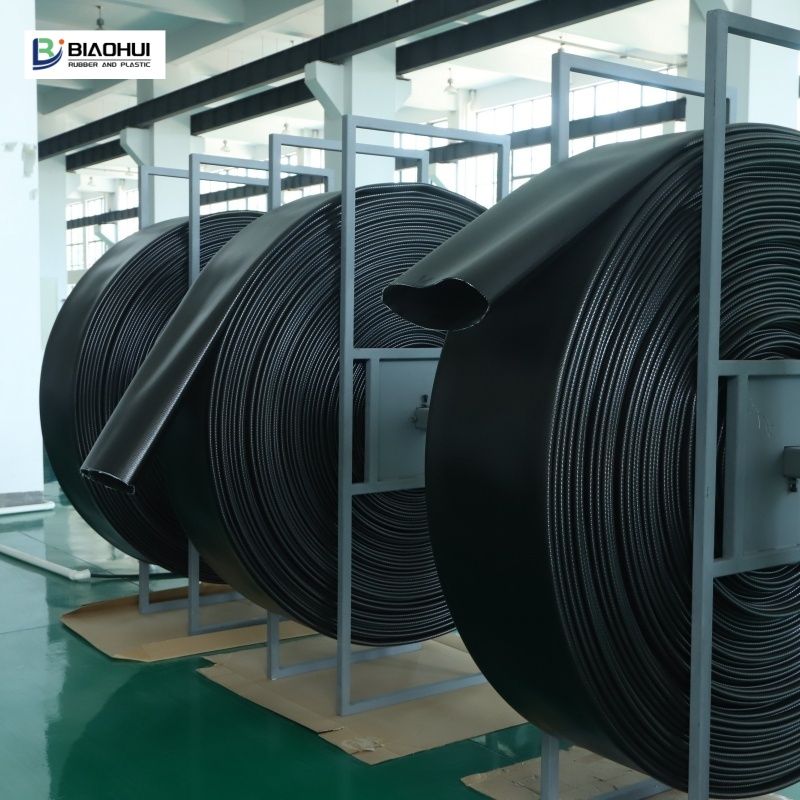

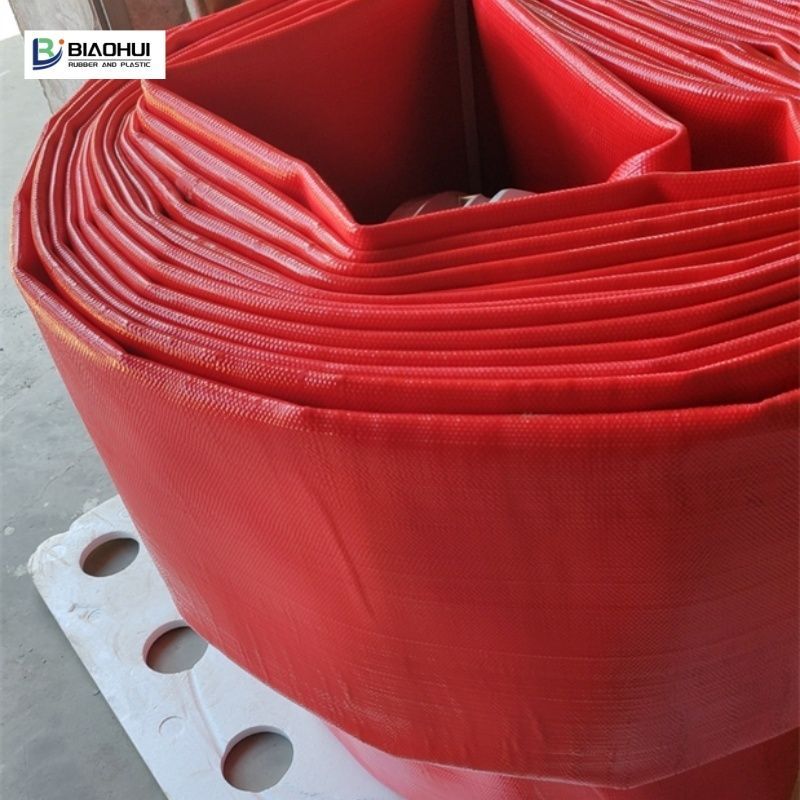

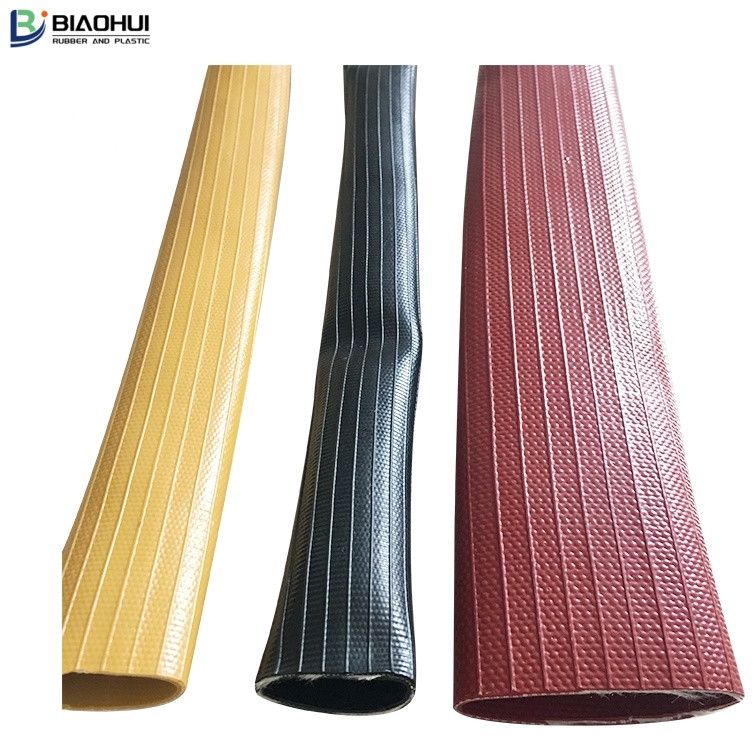

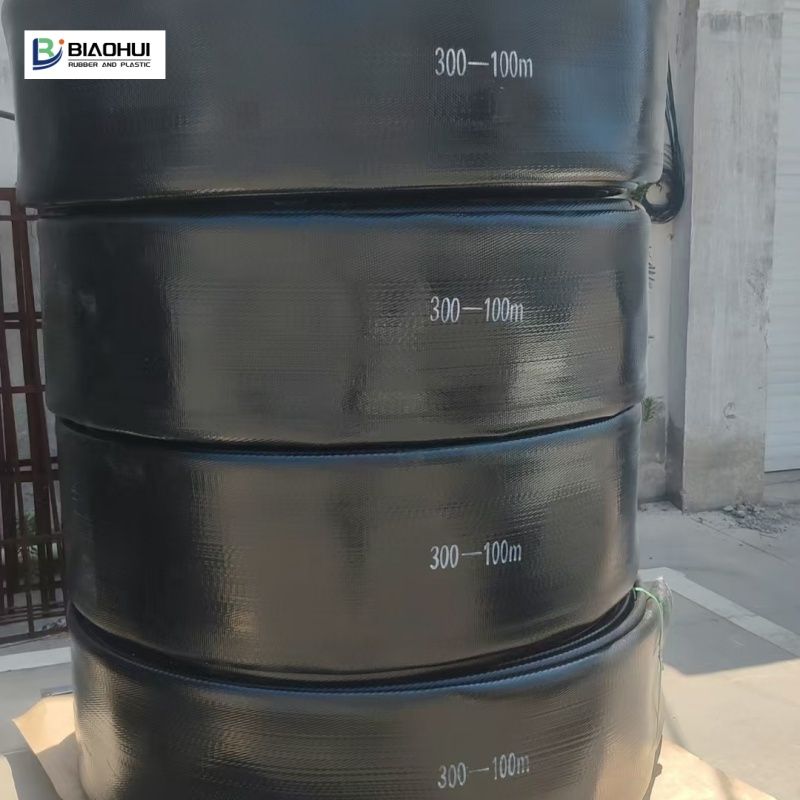

TPU Lay Flat Water Discharge Hose

TPU Lay Flat Water Discharge Hose
₹ 4,550 / 300 Meter Get Latest Price
  • Hose Lining Yes
  • Country of Origin India
  • Usage Industrial Use, Fire Fighting
  • Pressure Medium
  • Color Black
  • Finishing Coated
  • Material TPU
  • Brand Name Biaohui

Cover and Lining: PU, Ribbed cover or smooth cover Reinforcement Jacket: High-tenacity synthetic jacket Color: Blue, Green, Black, Red, Green

Application: Irrigation, Pumping of sludge and liquid fertilizers, supply or drag hose

Available length: 30m (100ft),  61m(200ft),  91.5m (300ft),  100m (330ft) 200m(660ft), 300m(990ft), 400m(1320ft),  also can be customized according to requirements
Available Internal Diameters: 2'', 3'', 4'', 6'', 8'', 10'', 12'', 14'', 16''

This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The "extrusion through-the-weave" production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.

The hose has high resistance against commonly used chemicals and has excellent resistance to UV radiation, hydrolysis and fungus degradation. The abrasion resistance of the TPU is one of the highest available, making the hose ideal for use in the extremely abrasive environment in open pit mines. The outer cover has been designed with extra thickness in order to add wear & tear material. This extends the useful lifespan of the hose.

Extra abrasion resistance for rugged terrain and extreme conditions Resistant to oil and chemical UV Stabilized Abrasion: 4000 DIN cycles

This hose can operate in a temperature range from -50 C deg to 80 C deg (-58 F deg to +176 F deg).

I.D. Tolerance Wall  Thickness Service Pressure Minimum Burst Pressure Weight Elongation At WP% Expansion At WP% Temperature Range
inch mm mm inch mm psi psi Lbs/ft Tolerance lbs/ft Kg/m Tolerance kg/m max max
2" 51 51-53 0.071±0.008 1.8±0.2 250 750 0.28 ±0.067 0.42 ±0.1 ≤1 ≤8 -50 to +80 (-58 to +176)

3" 76 76-78 0.126±0.012 3.2±0.3 250 750 0.64 ±0.067 0.95 ±0.1 ≤1 ≤8
4" 102 102-104.5 0.11±0.012 2.8±0.3 200 600 0.72 ±0.067 1.08 ±0.1 ≤1 ≤8
4" 102 102-104.5 0.138±0.012 3.5±0.3 250 750 0.94 ±0.067 1.4 ±0.1 ≤1 ≤8
4" 102 125-127.5 0.138±0.012 3.5±0.3 300 900 0.87 ±0.067 1.3 ±0.1 ≤1 ≤8
5" 125 154-157 0.165±0.012 4.2±0.3 150 300 1.2 ±0.134 1.8 ±0.2 ≤1 ≤8
6" 152 154-157 0.118±0.012 3±0.3 150 450 1.07 ±0.067 1.6 ±0.1 ≤1 ≤8
6" 152 154-157 0.15±0.012 3.8±0.3 250 750 1.41 ±0.134 2.1 ±0.1 ≤1 ≤8
6" 152 154-157 0.165±0.012 4.2±0.3 300 900 1.74 ±0.201 2.6 ±0.2 ≤2 ≤8
6" 152 154-157 0.228±0.016 5.5±0.4 640 1230 2.11 ±0.201 3.15 ±0.3 ≤2 ≤8
6" 152 154-157 0.228±0.016 5.6±0.4 725 1830 2.14 ±0.134 3.5 ±0.3 ≤2 ≤8
8" 204 204-207 0.15±0.012 3.8±0.3 200 600 1.94 ±0.134 2.9 ±0.2 ≤1 ≤10
8"         250
8" 204 204-207 0.177±0.016 4.5±0.4 300 900 2.28 ±0.134 3.4 ±0.2 ≤1 ≤10
10" 254 256-259 0.165±0.016 4.2±0.4 200 600 2.75 ±0.201 4.1 ±0.2 ≤1 ≤10
10"         250
10" 254 256-259 0.197±0.016 5.0±0.4 300 900 3.75 ±0.201 5.6 ±0.3 ≤2 ≤8
12" 306 306-311 0.165±0.016 4.2±0.4 150 450 3.33 ±0.201 4.97 ±0.3 ≤1 ≤8
12" 306 306-311 0.228±0.0197 5.8±0.5 200 600 4.3 ±0.201 6.4 ±0.3 ≤2 ≤8
14" 356 356-360 0.205±0.0197 5.2±0.5 150 450 4.96 ±0.201 7.4 ±0.3 ≤1 ≤8
16" 406 406-410 0.205±0.0197 5.2±0.5 150 300 5.09 ±0.201 7.6 ±0.3 ≤1 ≤10

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

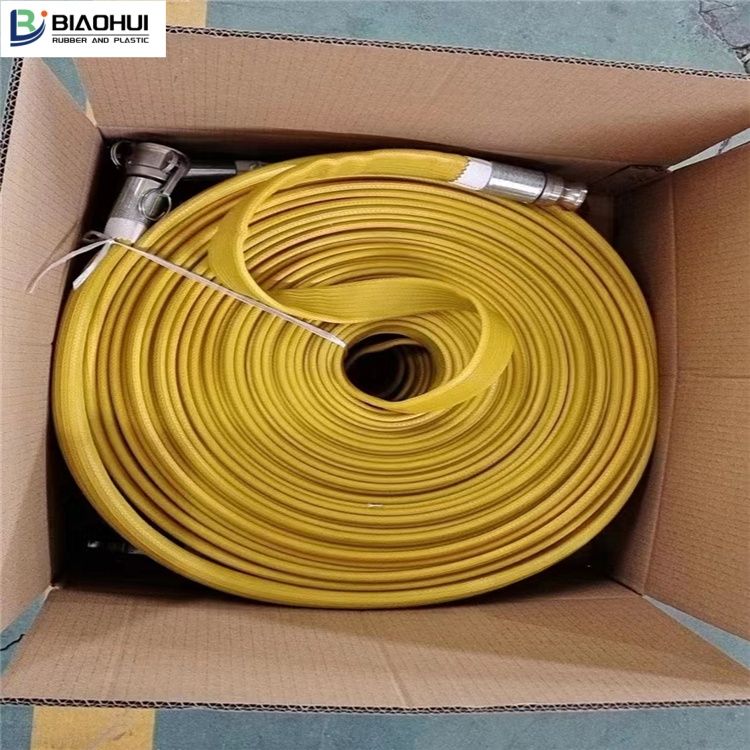

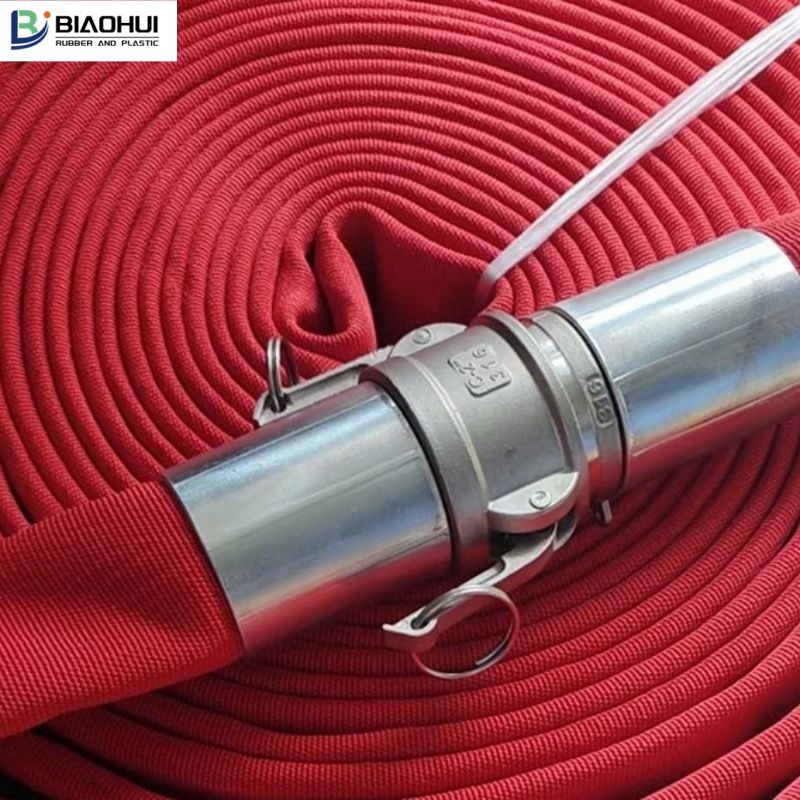

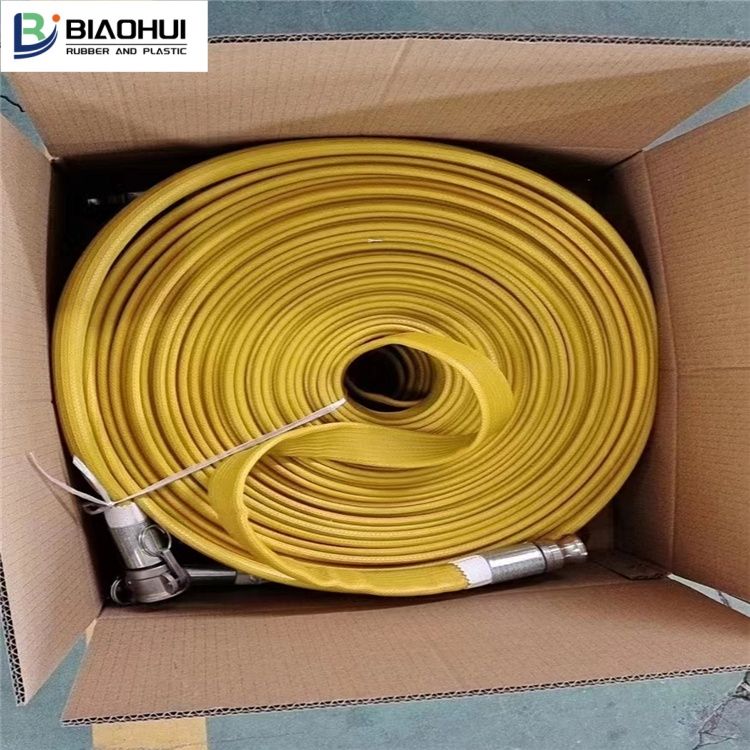

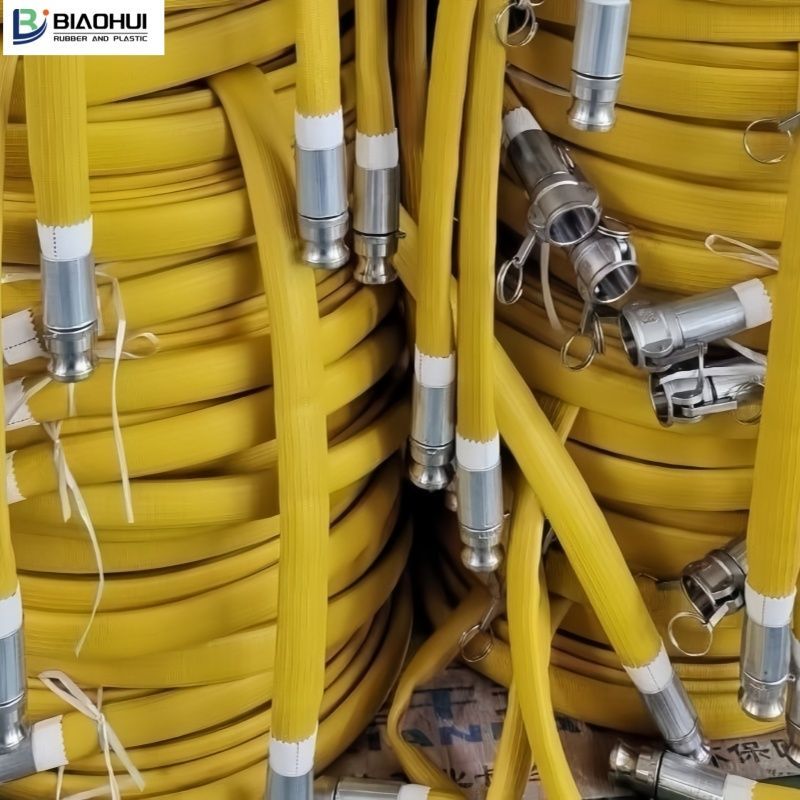

Snow Making Hose Pipes

Snow Making Hose Pipes
₹ 2,730 / 100 meter Get Latest Price
  • Country of Origin India
  • Brand Name Biaohui
  • Material TPU
  • Shape Round
  • Color Yellow Red
  • Pressure 40 Bar
  • Usage Water Supply In Snow Making

Snow making hose is a double jackets canvas hose designed for delivering water into snow cannon. It is a high-pressure, flexible, cold resistant hose that can be used continuously in winter environments.

Construction
Jacket: High tenacity synthetic yarn(double jackets)
Liner: TPU or EPDM rubber

Technical Parameters
Color: Red, yellow, orange or as required
Size: DN38(1.5 inch), DN51(2 inch)
Length: 20m(66ft) as required
Temperature: -50°C+80°C(-60°F to 176°F ) for TPU, -45°C+150°C(–49 °F to 302 °F ) for EPDM

Features
High-pressure, flexible, cold resistant, abrasion resistant, kinking, twisting, ensuring a long lifespan and reliable performance and etc

Application
Water supply in snow making

Specifition
SizeWorking PressureBurst PressureWall ThicknessLength
Inch mm Bar Psi Bar Psi mm m/ft
1 1/2 38 60 870 180 2610 4 20m(66ft)
2 51 60 870 180 2610 4

Size, working pressure and wall thickness can be customized as required

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

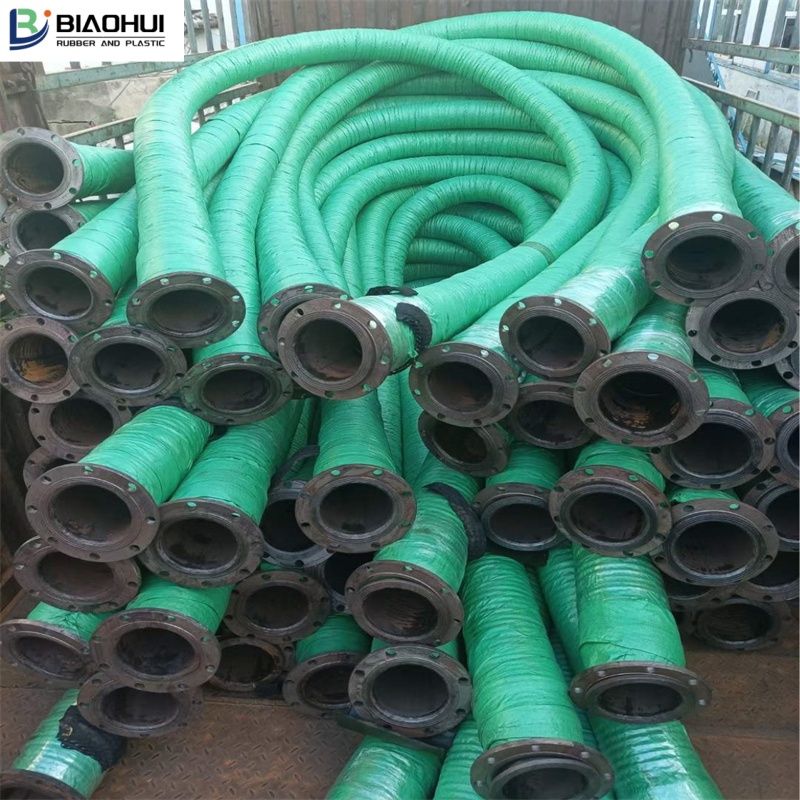

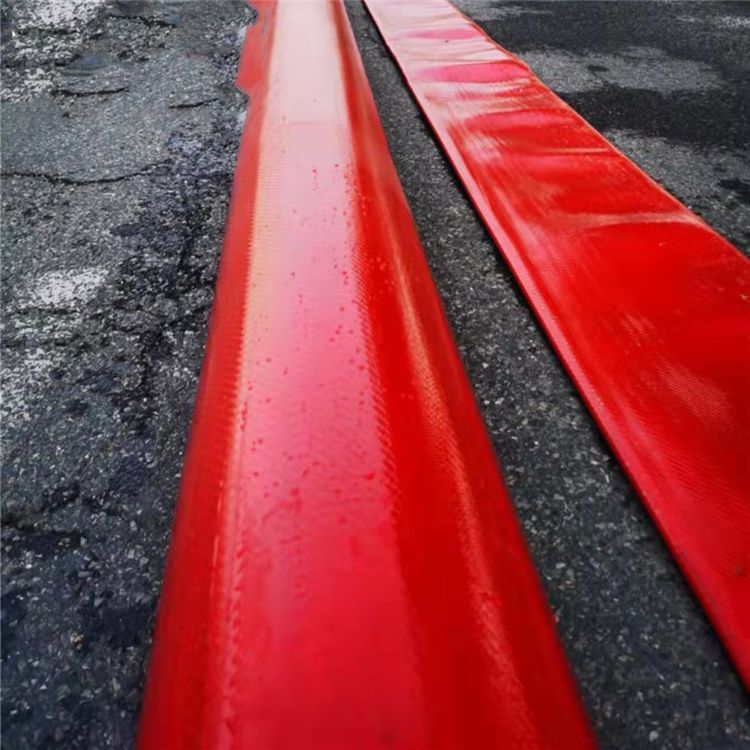

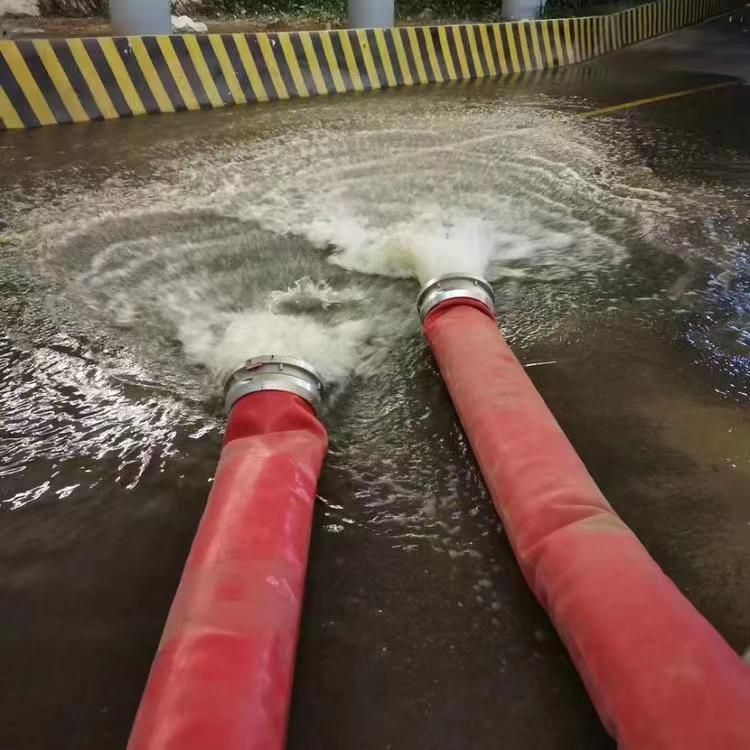

Flood Discharge Hose

Flood Discharge Hose
₹ 1,820 - ₹ 27,300 / meter Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Pressure Medium
  • Color Black
  • Shape Round
  • Material Neoprene Rubber
  • Brand Name Biaohui
  • Size (Inches) 50-800mm

Flood Discharge Hose is often used for delivery of sand, slurry, gravel, sewage and seawater because of its corrosion and abrasion resistant tube. It is also used for flood discharge thanks to its solid structure and excellent kink, bending and fatigue resistance. This is flood discharge hose. It is composed of three parts: tube, reinforcement and cover. Tube is made from synthetic rubber (NR, SBR and BR), making hose resistant to abrasion and corrosion. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to bending, kink and fatigue. Besides, the high tensile reinforcement makes hose have solid structure and resistant to wave. And the hose is suitable for high working pressure environment. Cover is made from high quality synthetic rubber (NR, SBR and BR), making hose resistant to abrasion, corrosion, heat, weather, ozone and aging.

The details of flood discharge hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.

The specification of flood discharge hoseFDCH-01FDCH-02FDCH-03FDCH-04FDCH-05FDCH-06FDCH-07FDCH-08FDCH-09FDCH-10FDCH-11FDCH-12FDCH-13

6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
10 254 11-1/5 284 10 1 20 2 0.8 80 10
12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture flood discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.

Additional Information:

Payment Terms : T/T

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

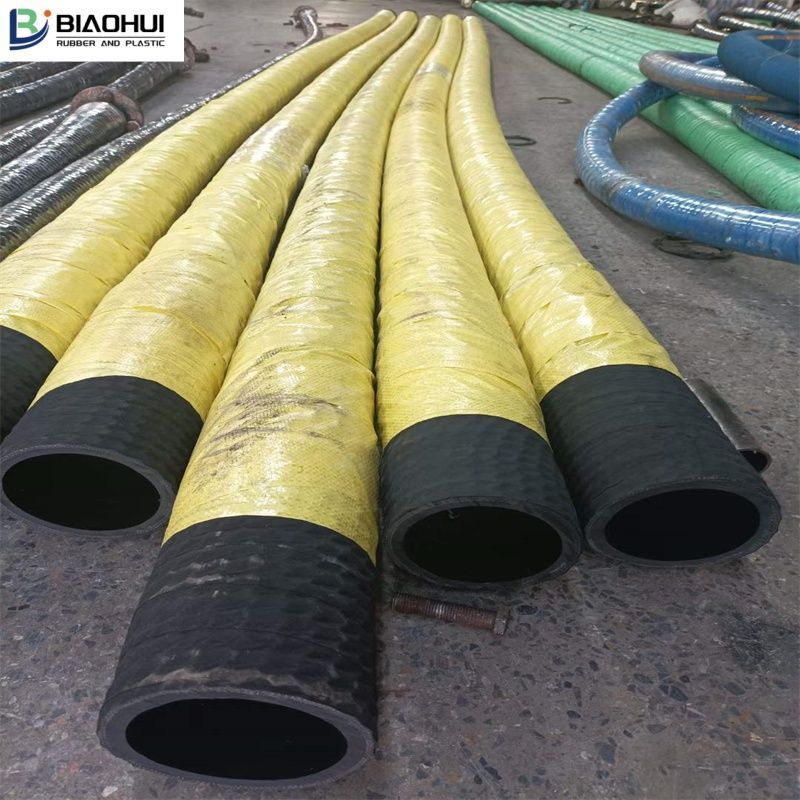

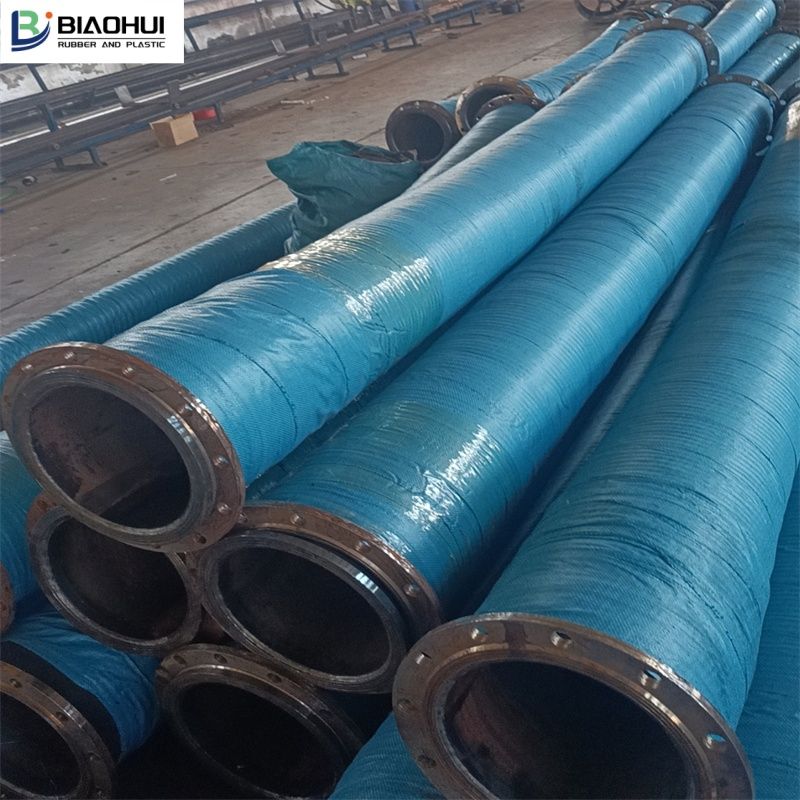

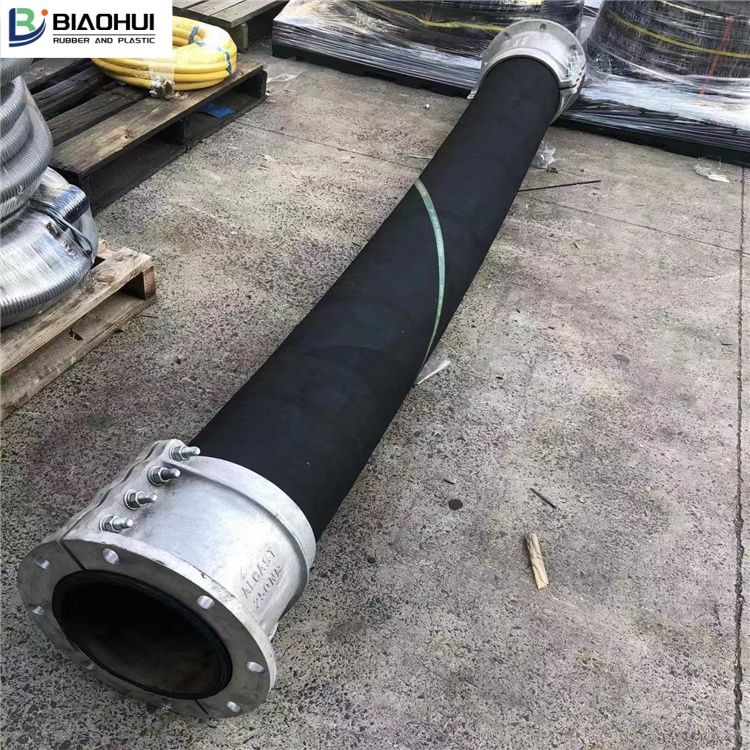

Slurry Suction and Discharge Hose

Slurry Suction And Discharge Hose
₹ 1,820 - ₹ 27,300 / meter Get Latest Price
  • Min. Order (MOQ) 1 piece
  • Brand Name Biaohui
  • Material Nitrile Rubber
  • Shape Round
  • Color Black
  • Pressure Medium
  • Usage Industrial Use, Can Be Used For Slurry Dredging In Many Places, Such As River, Lake And Sea, And This Is The Slurry
  • Country of Origin China
  • Reinforcement High Tensile Cords With Steel Wire Spiral
  • Size (Inches) 50-800mm

 Slurry Suction and Discharge Hose can be used for slurry dredging in many places, such as river, lake and sea, and this is the slurry suction & discharge hose. It is mainly used for slurry suction, delivery and discharge. Slurry is abrasive, so slurry suction & discharge hose is highly resistant to abrasion. It is composed of three parts: tube, reinforcement and cover. Tube is made from high quality synthetic rubber, such as NB, SBR and BR, making hose resistant to abrasion and corrosion. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to kink and fatigue. And the high tensile reinforcement makes hose suitable for high working pressure environment. Cover is made from synthetic rubber (NR, SBR and BR), making hose resistant to abrasion, corrosion, weather, ozone, aging and cut. The hose has excellent flexibility and it can be connected to pipeline tightly by flange.

The details of slurry suction & discharge hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.
The specification of slurry suction & discharge hose Hose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamSSDH-01 SSDH-02 SSDH-03 SSDH-04 SSDH-05 SSDH-06 SSDH-07 SSDH-08 SSDH-09 SSDH-10 SSDH-11 SSDH-12 SSDH-13
6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
10 254 11-1/5 284 10 1 20 2 0.8 80 10
12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture slurry suction & discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.

Additional Information:

Payment Terms : T/T

Packaging Details : Plastic Bag, Wooden Box or Pallet

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

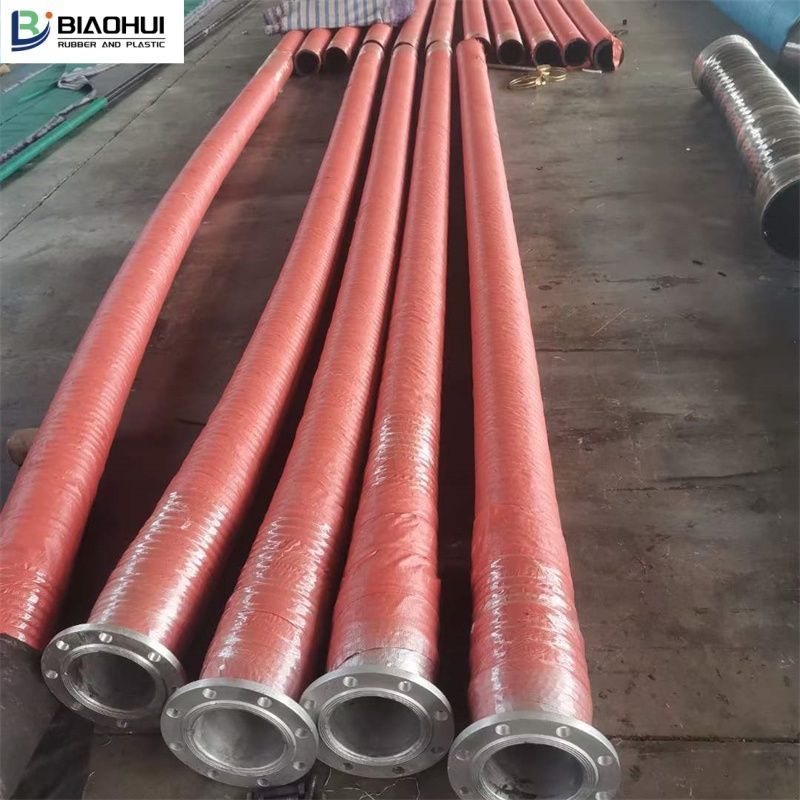

Sewage Suction Discharge Hose

Sewage Suction Discharge Hose
₹ 1,820 - ₹ 27,300 / meter Get Latest Price
  • Min. Order (MOQ) 1 PIECE
  • Country of Origin China
  • Usage It Can Be Used To Deliver Sand, Slurry And Gravel. It Is Resistant To Corrosion, So It Is Also Used
  • Pressure 16bar
  • Color Black
  • Shape Round
  • Material Nitrile Rubber, Rubber
  • Brand Name Biaohui
  • Size (Inches) 50-500mm

Sewage Suction and Discharge Hose  is resistant to abrasion, so it can be used to deliver sand, slurry and gravel. It is resistant to corrosion, so it is also used to deliver corrosive sewage, and this is sewage suction & discharge hose. It has excellent flexibility and it can be connected tightly to pipeline. Its structure is similar to Sewage Suction and Discharge Hose and seawater suction & discharge hose. It is composed of three parts: tube, reinforcement and cover. Tube is made from high quality synthetic rubber (NR, SBR and BR), making hose resistant to corrosion and work well in delivering sewage. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to bending and fatigue. And sewage suction & discharge hose can bear very high working pressure due to the high tensile spiral steel wire reinforcement. Cover is made from NR, SBR or BR, making hose resistant to corrosion, abrasion, weather, ozone and aging.

The details of sewage suction & discharge hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.

The specification of sewage suction & discharge hoseHose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamSWSDH-01SWSDH-02SWSDH-03SWSDH-04SWSDH-05SWSDH-06SWSDH-07SWSDH-08SWSDH-09SWSDH-10SWSDH-11SWSDH-12SWSDH-13

6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
10 254 11-1/5 284 10 1 20 2 0.8 80 10
12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture sewage suction & discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.

Additional Information:

Payment Terms : T/T

Packaging Details : Plastic Bag, Wooden Box or Pallet

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

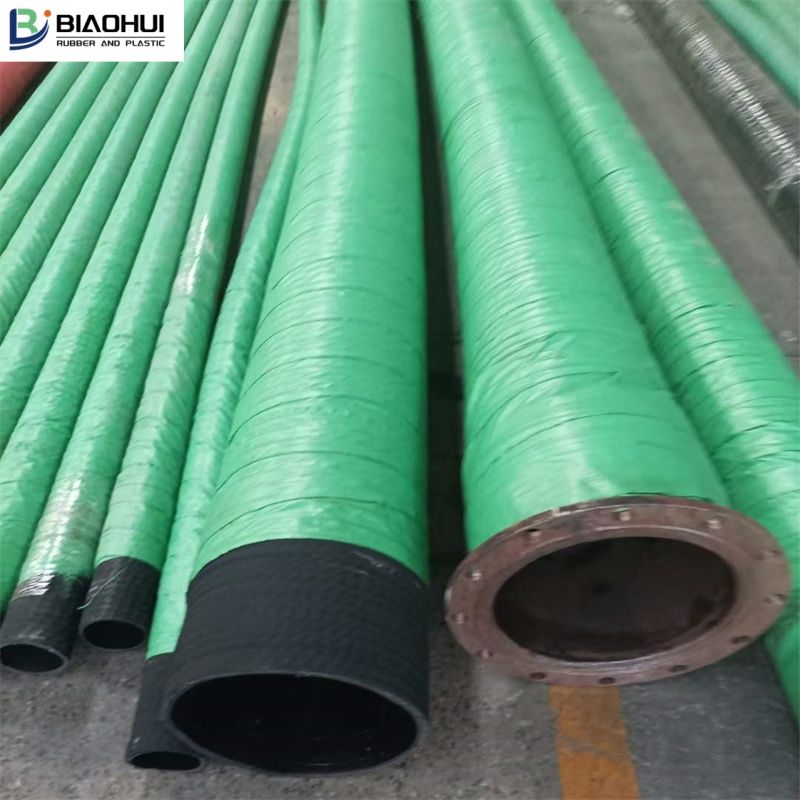

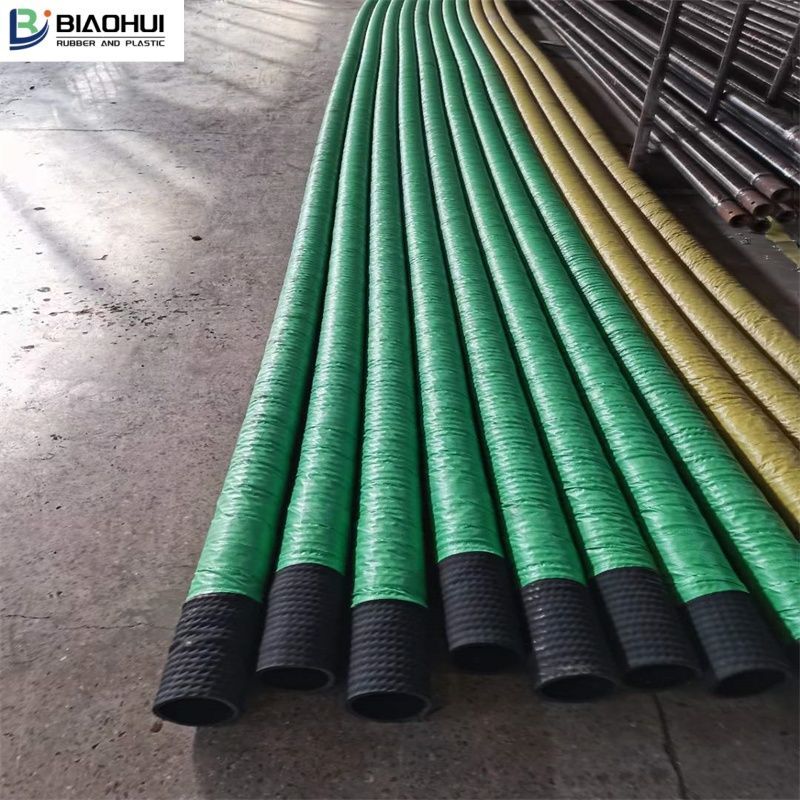

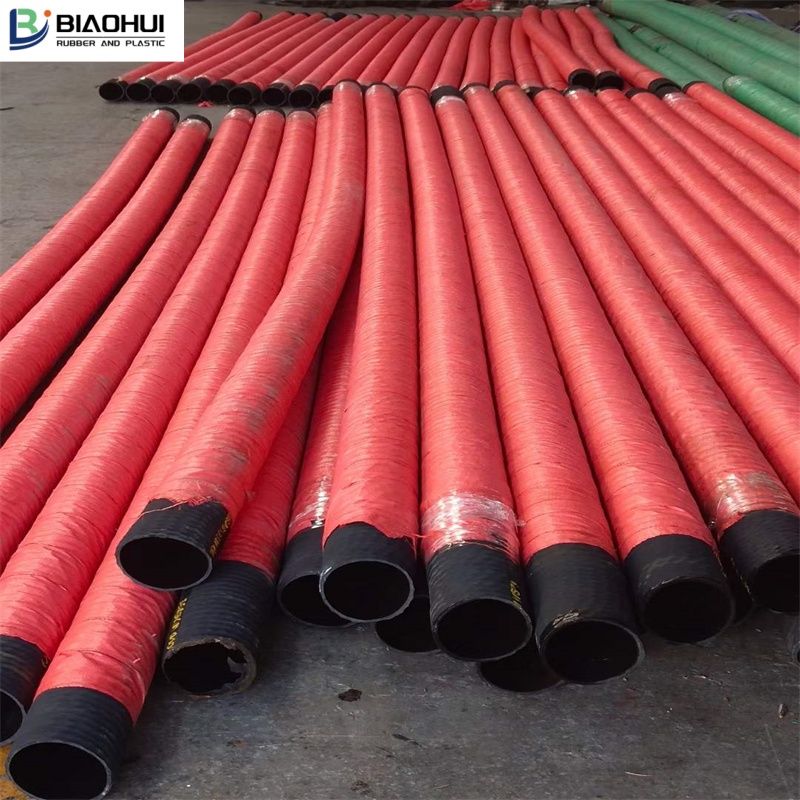

Gravel Suction Discharge Hose

Gravel Suction Discharge Hose
₹ 4,550 / 350 METER Get Latest Price
  • Min. Order (MOQ) 1 pieces
  • Country of Origin China
  • Reinforcement High Tensile Cords With Steel Wire Spiral
  • Usage Industrial Use, Used For Gravel Transport Ship To Deliver Gravel In Many Places
  • Pressure Medium
  • Color Black
  • Shape Round
  • Material Neoprene Rubber
  • Brand Name Biaohui

GrAvell suction and discharge hose can be used for gravel transport ship to deliver gravel in many places, and this is the so-called gravel suction & discharge hose. Its outstanding feature is that it has excellent abrasion resistance, so it works well in delivering gravel which is highly abrasive. Gravel suction & discharge hose is composed of three parts: tube, reinforcement and cover. Tube is made from synthetic rubber (NR, SBR or BR), making hose resistant to abrasion and corrosion. Reinforcement is made from high tensile spiral steel wires, making hose resistant to kink and fatigue. Besides, the high tensile reinforcement makes hose have solid structure and bear high working pressure. Cover is made from high quality synthetic rubber (NR, SBR or BR), making hose resistant to abrasion, corrosion, weather, ozone, aging and heat. The hose can be connected to pipeline tightly by flanges. And it has excellent flexibility.

The details of gravel suction & discharge hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.

The specification of gravel suction & discharge hoseHose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamGSDH-01GSDH-02GSDH-03GSDH-04GSDH-05GSDH-06GSDH-07GSDH-08GSDH-09GSDH-10GSDH-11GSDH-12GSDH-13

6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
10 254 11-1/5 284 10 1 20 2 0.8 80 10
12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture gravel suction & discharge hose according to customers' requirements, such as material, length, inner diameter, outside diameter.





Additional Information:

Payment Terms : T/T

Packaging Details : Plastic Bag, Wooden Box or Pallet

Delivery Time : 10 days

View Complete Details
Ask Latest Price & Details

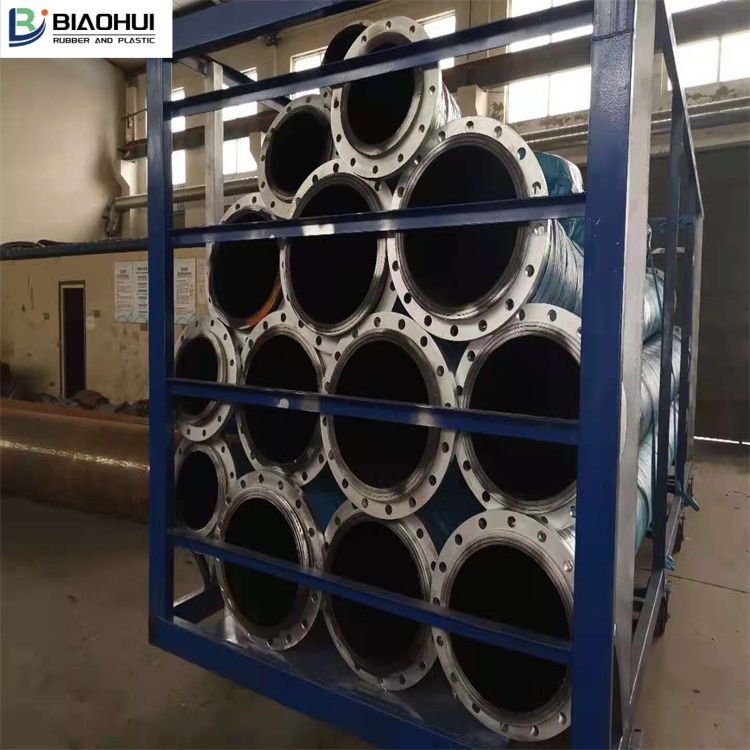

Port Dock Construction Hose

Port Dock Construction Hose
₹ 4,550 / 400 Meter Get Latest Price
  • Min. Order (MOQ) 1 Piece
  • Brand Name Biaohui
  • Material Rubber, RUBBER
  • Shape Round
  • Color Black
  • Pressure Medium
  • Usage Industrial Use, Be Used For Abrasive And Corrosive Materials Delivery, And It Is Also Used For Flood Discharge. Besi
  • Country of Origin China

Port and dock construction hose suitable can be used for abrasive and corrosive materials delivery, and it is also used for flood discharge. Besides, it is also used for port and dock construction and this is port and dock construction hose. It is very flexible and it can be connected to pipeline tightly by flanges. And it is highly resistant to abrasion, corrosion and seawater, so it is becoming more and more popular in port and dock construction. Port and dock construction hose is composed of three parts: tube, reinforcement and cover. Tube is made from high quality synthetic rubber (NR, SBR and BR), making hose resistant to abrasion and corrosion. Reinforcement is made from multiple layers of high tensile spiral steel wires, making hose resistant to bending, kink, fatigue and wave. Besides, reinforcement makes hose have solid structure and suitable for high working pressure environment. Cover is made from synthetic rubber (NR, SBR and BR), making hose resistant to abrasion, corrosion, seawater, weather, ozone and aging.

The details of port and dock construction hose:

  • Structure: composed of three parts: tube, reinforcement and cover.
    • Tube: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion and seawater.
    • Reinforcement: multiple layers of high tensile spiral steel wires, making hose have solid structure and resistant to kink and high pressure.
    • Cover: synthetic rubber, NR, SBR or BR, making hose resistant to abrasion, corrosion, seawater, heat, weather, ozone and aging.
  • Working temperature: 20 °C to 80 °C.

The specification of port and dock construction hoseHose codeIDODWorking pressureBurst pressureVacuum pressureLengthinchmminchmmbarMPabarMPabarMPamPDCH-01PDCH-02PDCH-03PDCH-04PDCH-05PDCH-06PDCH-07PDCH-08PDCH-09PDCH-10PDCH-11PDCH-12PDCH-13

6 152 7-1/4 184 12 1.2 24 2.4 0.8 80 20
8 203 9-1/5 233 24 2.4 24 2.4 0.8 80 20
10 254 11-1/5 284 10 1 20 2 0.8 80 10
12 304 13-2/5 340 10 1 20 2 0.8 80 6 - 10
14 355 15-2/5 390 10 1 20 2 0.8 80 6 - 10
18 457 19-1/5 487 7 0.7 15 1.5 0.8 80 6 - 10
22 560 23-3/5 600 7 0.7 15 1.5 0.8 80 6 - 10
24 635 25-3/5 650 7 0.7 15 1.5 0.8 80 6 - 10
28 711 29-3/5 752 7 0.7 15 1.5 0.8 80 6 - 10
32 813 33-1/2 850 5 0.5 10 1 0.8 80 6 - 10
40 1016 41-1/2 1054 5 0.5 10 1 0.8 80 6
48 1219 49-1/5 1250 5 0.5 10 1 0.8 80 6
52 1320 53-1/5 1350 5 0.5 10 1 0.8 80 6
We can manufacture port and dock construction hose according to customers' requirements, such as material, length, inner diameter, outside diameter.

Additional Information:

Payment Terms : T/T

Packaging Details : Plastic Bag, Wooden Box or Pallet

Delivery Time : 15 days

View Complete Details
Ask Latest Price & Details
Tell Us What are you looking for? Will call you back

Contact Us

View Contact No.
