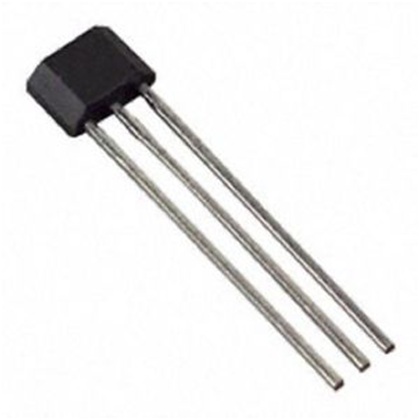

Hall Effect Sensor

Product ID: 1292 SS41-Series Bipolar Hall Effect sensors respond to alternating North and South poles. A built-in regulator provides stable operation over 4.5 Vdc to 24 Vdc supply voltage range, and internal circuitry prevents sensor damage in case the supply voltage polarity is accidentally reversed. The SS41 Series Bipolar Hall-effect sensors are small, versatile digital Hall-effect devices that are operated by the magnetic field from a permanent magnet or an electromagnet. The open-collector sinking output voltage is easily interfaced with a wide variety of electronic circuits. FEATURES: Reverse power polarity protection Current sinking output Sensitive magnetic characteristics Operating speed from 0 kHz to over 100 kHz Application Speed and RPM sensor Brushless DC motor commutation Motor and fan control Magnetic encoding Tachometer, counter pickup Disc speed, tape rotation sensing Flow-rate sensing
