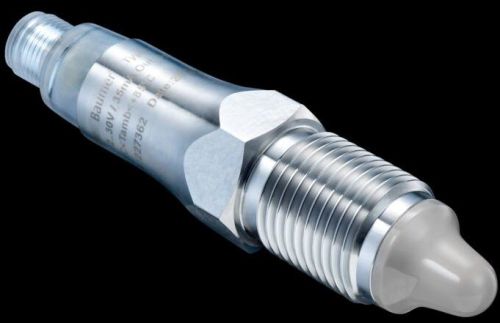

LBFI Level Switch

Damping0 … 10 s , adjustable
Repeatability± 1 mm
Step response time0.1 s , typ. 0.2 s , max.
Wetted parts materialPEEK Natura -AISI 316L (1.4404), AISI 304 (1.4301), optional
Supply TypeManufacturer, Exporter, Supplier, Retailer, Trader
Preferred Buyer Location India only

Product Details

Repeatability± 1 mm
Step response time0.1 s , typ. 0.2 s , max.
SafetycULus listed, E365692 WHG (overfill, leakage)
Output typePNP,NPN
Damping0 … 10 s , adjustable
Railway applicationsEN 50155
Explosion protectionATEX II 1D Ex ta IIIC T100 °C Da, ATEX II 1G Ex ia IIC T4/T5, ATEX II 3G Ex nA IIC T4/T5
Wetted parts materialPEEK Natura -AISI 316L (1.4404), AISI 304 (1.4301), optional
Media characteristicsDC > 1.5
HygieneRefer to section
EMC EmissionEN 61326, installed in a closed metal tank
Measuring principleCleverLevel level switches (Frequency Sweep)
Hysteresis± 1 mm
Surface roughness wetted partsRa ≤ 0.8 µm
Switching logicNormally closed (NC), Normally open (NO)
EMC ImmunityEN 61326, installed in a closed metal tank
