Single Function Digital Panel Meter

Supply TypeSupplier, Retailer
Preferred Buyer Location All over the world

The company is a well known Supplier of Single Function Digital Panel Meters. The Digital Panel Meters offered by us are manufactured using quality-approved components and the latest....

View More Details

Send Enquiry

Company Information

Adesh Electricals

Proddatur, Cuddapah, Andhra Pradesh

4.0/5

(1)

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 37AWDPJ9979N1ZG

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

The company is a well known Supplier of Single Function Digital Panel Meters. The Digital Panel Meters offered by us are manufactured using quality-approved components and the latest technology. We offer different models of Panel Meters, which are compact, user friendly and easy to fit in to standard panel cut-outs.

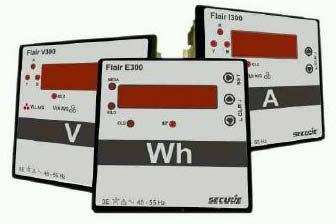

More about Single Function Digital Panel Meter : The Flair Series is a range of single function digital panel meters for accurate and reliable measurement of electrical quantities (including voltage, current, power, power factor, energy and frequency|) for industrial and commercial applications.

Applications :

HV and LV switchgear panels
Control and relay panels
Power Control centre (PCC) panels
Motor Control Centre (MCC) panels
Test Benches
Laboratory euipment

Benifits :

Compact Size : two flair Mini Meters will fit in to a standard DIN 96 cut out
Easy to fit and use
Ideal replacement for analouge meters
Fully Digital, for high accuracy and repeatability
Wide measurement range (e.g. form amps to kilo amps for ammeter)

Range Of Models

Parameter	AC Single Phase	AC Three Phase	DC
Curent	I100	I300	I200
Votage	V100	V300	V200
Active power	W100	W300	-
Reactive power	R100	R300	-
Power factor	P100	P300	-
Frequency	F100	-	-
Active Energy\ (Available with pulse output)	-	E300	-

Technical Specifications

Electrical Auxiliary Burden Metrological Accuracy	80-300 V AC, 24 V DC Auxiliary Supply : <3VA Measuring terminal :<0.5 VA V, I,F,PF,Energy, Class, 0.5s, Class 1.0 (Frequency available in class 0.2s also)
Measuring Range Voltmeter (single/three phase) Ammeter (single / three phase) Frequency meter Power Meter (1P/3P Active and 3 P Reative) Power Factor Energy Meter DC Voltmeter DC Ammeter Overload Capacity Voltage Current	Secondry : 0.415 V Primary : Configurable through push button up to Kv range 45-65 Hz 0-415 V 0-5 A 0.5 lag-1.0-0.5 lead (for nominal voltage and currents) 0-415 V\ 0-5 A 0-2 V, 0-300 V 75 mV External shunt operated meters 120% V_nom 120% I _nom
Approvals Standards	Full Type tested : IS13875
Mechanical Bezel Size Panel Cut out Enclosure Terminals Weight	96X96 mm 92X92 mm Polycarbonate Tag Screw 0.3 Kg (approx.)
Enviomental Protection class EFT ESD Temprature Humidity Flame Retardation	IP 50 as per IEC60529 IP 20 as per IEC60529 (terminals) Level : 2 kv Freq : 5 kHz EFT Contact and air discharge : 8 kv -10 ^oC to 50^oC (operating) -25^oC to 70^oC (Storage) 95 % non condensing UL 94 VO
Programming In field programming via push buttons	Wiring Configuration and CT/VT/ Prinary Secondry (according to model)
